0 Thread Remain
0 Rework

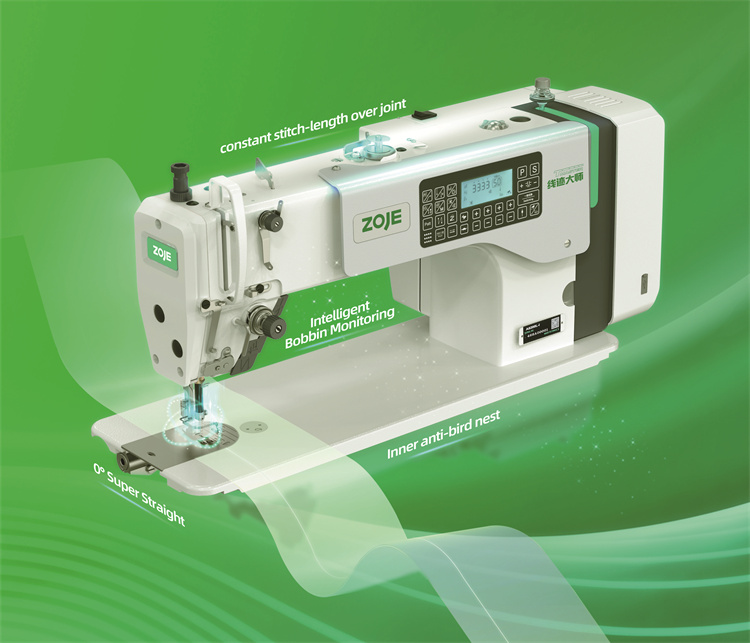

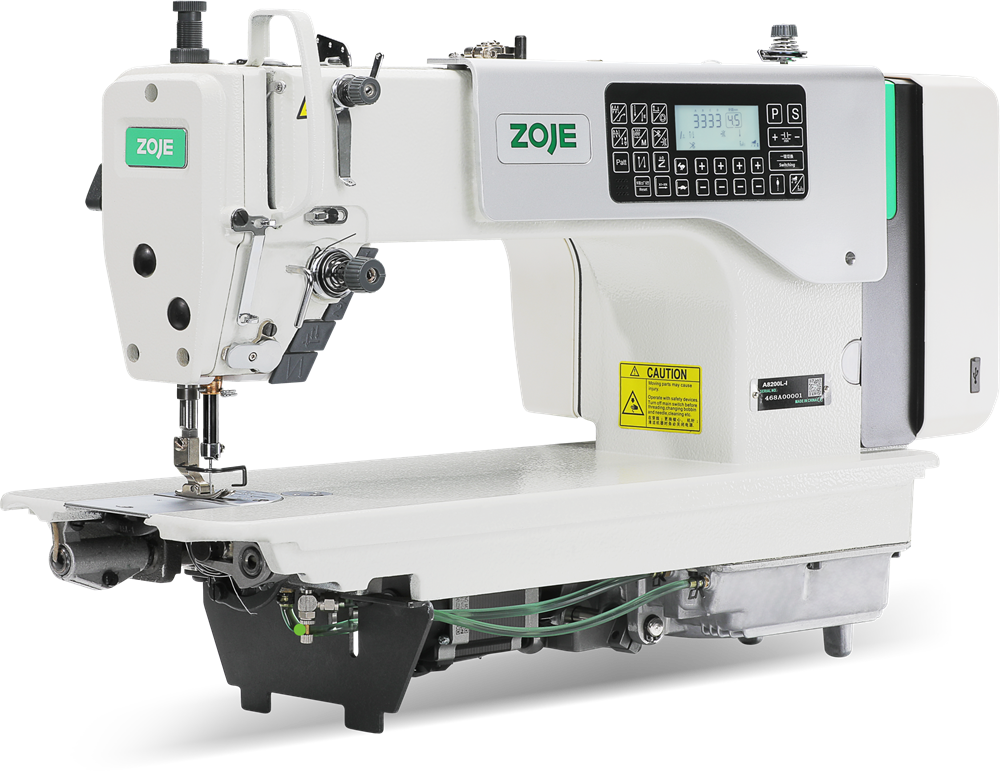

LARGE SPACE DOUBLE STEPPERINTELLIGENT LOCKSTITCH MACHINE
Inne ranti-birdnest Intelligent Bobbin Monitoring
Constant stitch-length over joint 0° Super Straight
Four stitch-lnnovation technologies, sewing once, no rework

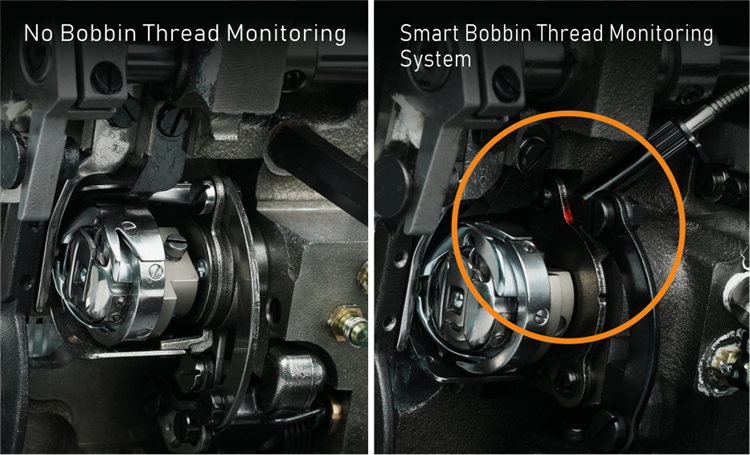

By utilizing high-precision optical sensors to detectreal-time hook movement and integrating Al motionalgorithms,the system enables monitoring andmeasurement of remaining bobbin thread quantity. Thisinnovation aims to minimize fabric defects such asneedle holes and discontinuous stitches caused bythread used-out during the sewing process, ensuringthe complete execution ofsewing requirements.

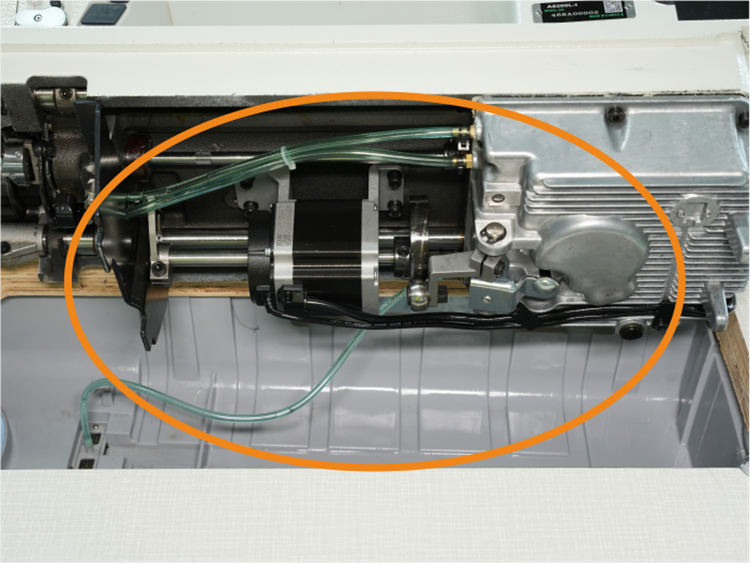

Through stepper motor precisely controls the threadtrimming mechanism, delivering rapid response at theonset of stitching to accurately grasp, cut, and eject thetop thread.lt eliminates bird's nest tangles, resulting inclean and beautiful stitches.
Straight Stitch Technology: Regulates fabric feedrhythm to enhance stitch aesthetics, ensuring eachneedle penetration achieves straighter and fullerstitches
"Thick-Thin-Elastic" Fabric Compatibility: Exceptionaladaptability to diverse fabric types ,deliveringconsistent and beautifulstitches
Pressure Foot Intelligently senses fabric thickness andautomatically adjust stitch length to ensure constantand stable stitches.

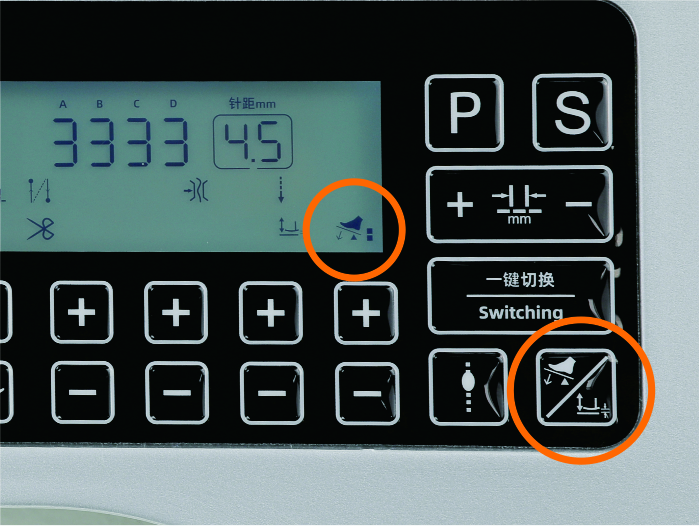

Digital 6-Stage Presser Foot Height Adjustment (3mm-13mm Range)
Patented Slow-Descent Technology Prevents Fabric Damage
Tool-Free One-Touch Preset Switching

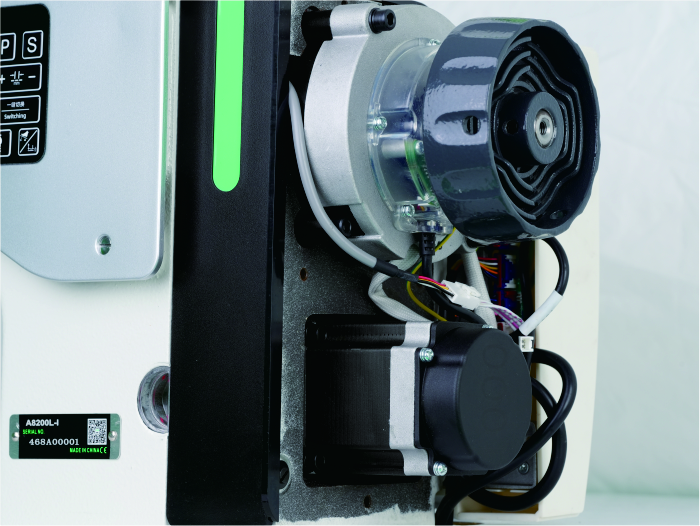

Precise Stitch Length: Stepper motor controlled, 0.1mm accuracy (lS0 4915 Class 1)
Silent Reverse Stitching: <20dB operation (EN 60745-1 Annex K compliant)
Pattern Sewing: 9 built-in +9 programmable patterns (JlS B 9050 compliant)
Perfect Stitch Overlap: 98% needle position repeatability (ASTM D6193 Grade A)
Stepper Motor-Controlled Thread Trimming with adjustable parameters foroperation
Automatic Blade Reset Function to prevent jamming
Customizable Pedal Response Adapts to User Habits, Boosting Initial StitchingEfficiency by Up to 10%
※ This datais based on internal test results and is for reference only

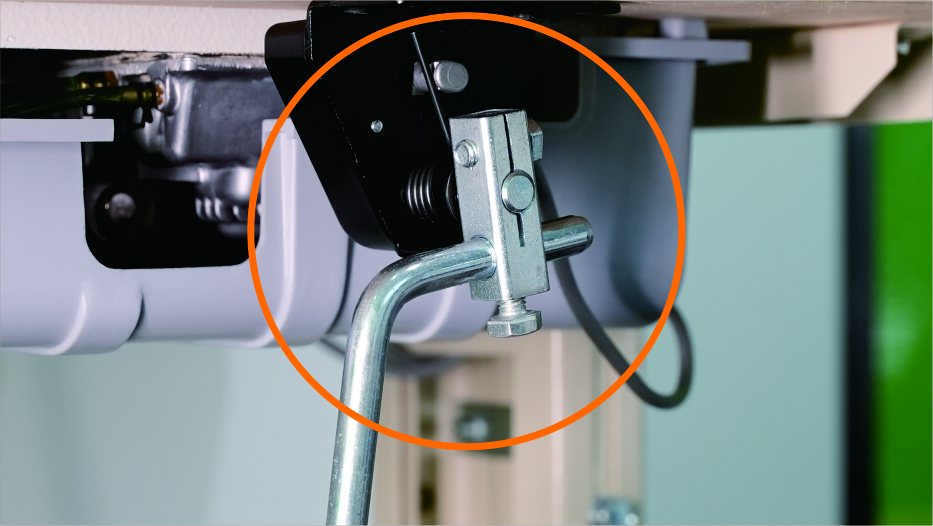

Knee Lift Force:5N(vs.30N for Mechanical Systems)-80%Reduction
※This datais based on internal test results and is for reference only

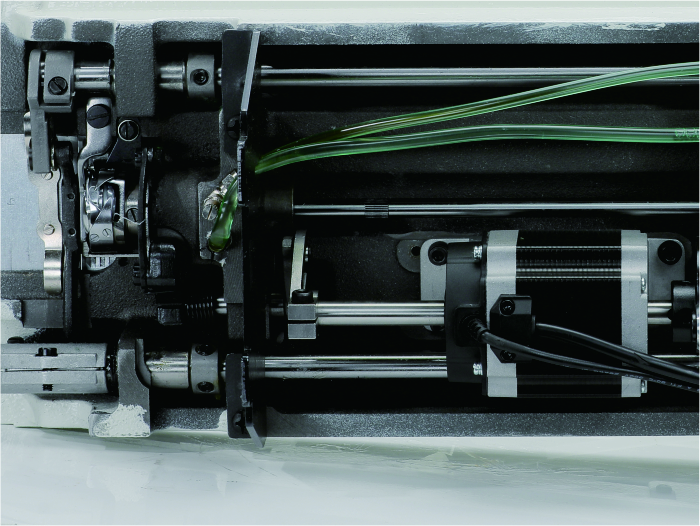

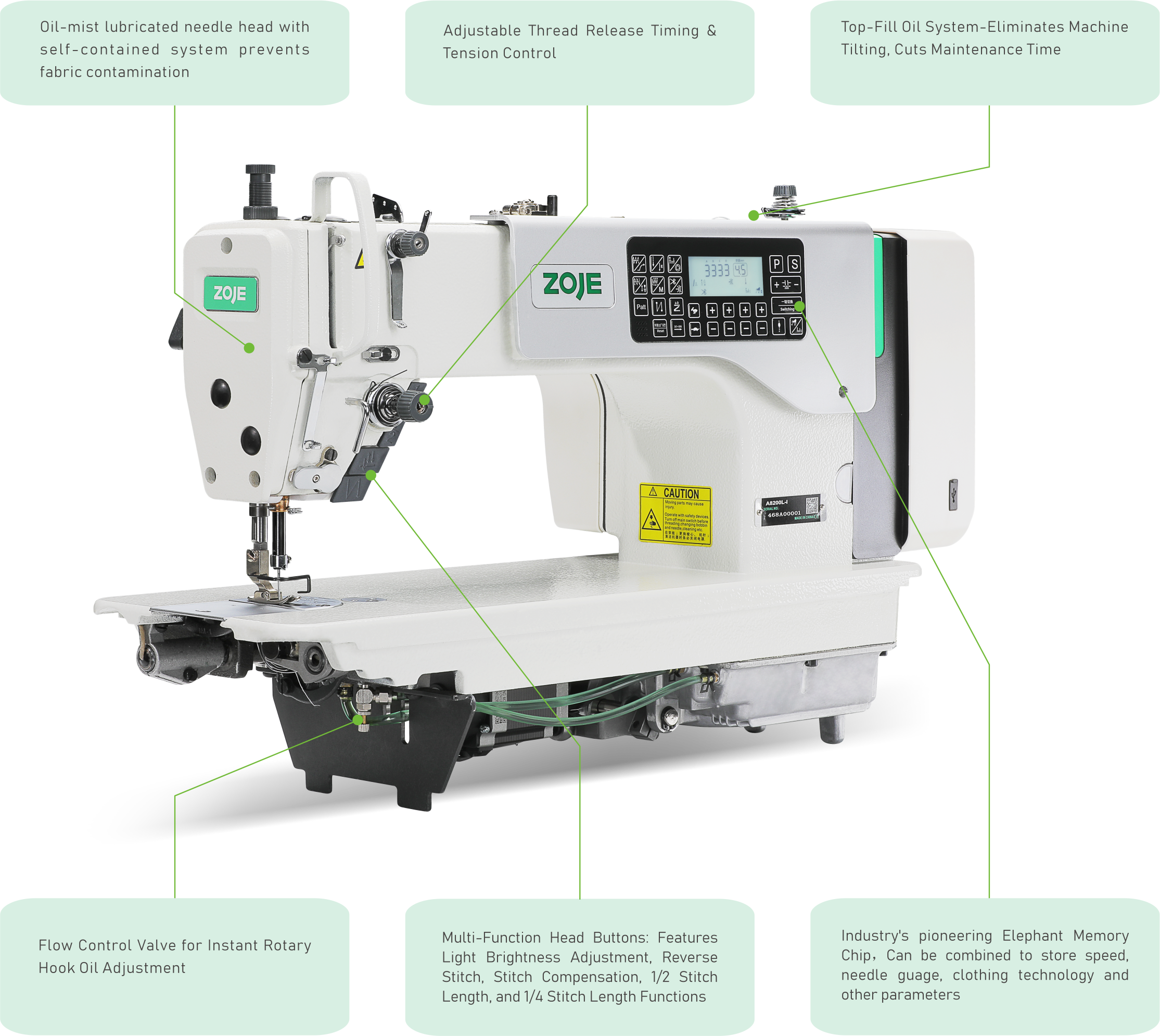

Machine With sealed oil tank, and Automatic lubrication system,incorporating our patented dual oil return structure for Lockstitch(combining needle bar oil return and hook centrifugal oil return)
Generous 308mmx130mm Workspace - ldeal for template sewing and bulky garment construction
Specialized in Delivering Premium Stitch Quality for Down Jackets, Dress Shirts, Denim, T-Shirts, and Home Textiles
| Model | A8200L+-PR-U | A8200L+-NR-U | A8200L-P | A8200L-N |
| LoT Function | Yes | Yes | No | No |
| Bobbin Thread Monitoring System | Yes | No | Yes | No |
| Presser Foot Height Sensing | Yes | Yes | No | No |
| Anti-Bird's Nest Function | No | Yes | No | Yes |
| Oil Supply | Dry Head | Dry Head | Mini-Oil | Mini-Oil |
| Material Thickness | Light-Heavy Materials | Light-Heavy Materials | Light-Heavy Materials | Light-Heavy Materials |
| Maximum Speed | 5000rpm | 5000rpm | 5000rpm | 5000rpm |
| Maxmum Stitch Length | 5mm | 5mm | 5mm | 5mm |
| Presser Foot Height | 5.5mm(Manual lift )-13mm(Knee lift） | 5.5mm(Manual lift )-13mm(Knee lift） | 5.5mm(Manual lift )-13mm(Knee lift） | 5.5mm(Manual lift )-13mm(Knee lift） |
| Needle | DB×1 #11-#18 | DB×1 #11-#18 | DB×1 #11-#18 | DB×1 #11-#18 |
| Input voltage | 220V | 220V | 220V | 220V |
| Output Power | 550W | 550W | 550W | 550W |
※ For other models, please inquire about ZOJE Electronic Sample
