A7200

A7200

Intelligent double step

Adjustable pedal

Mute

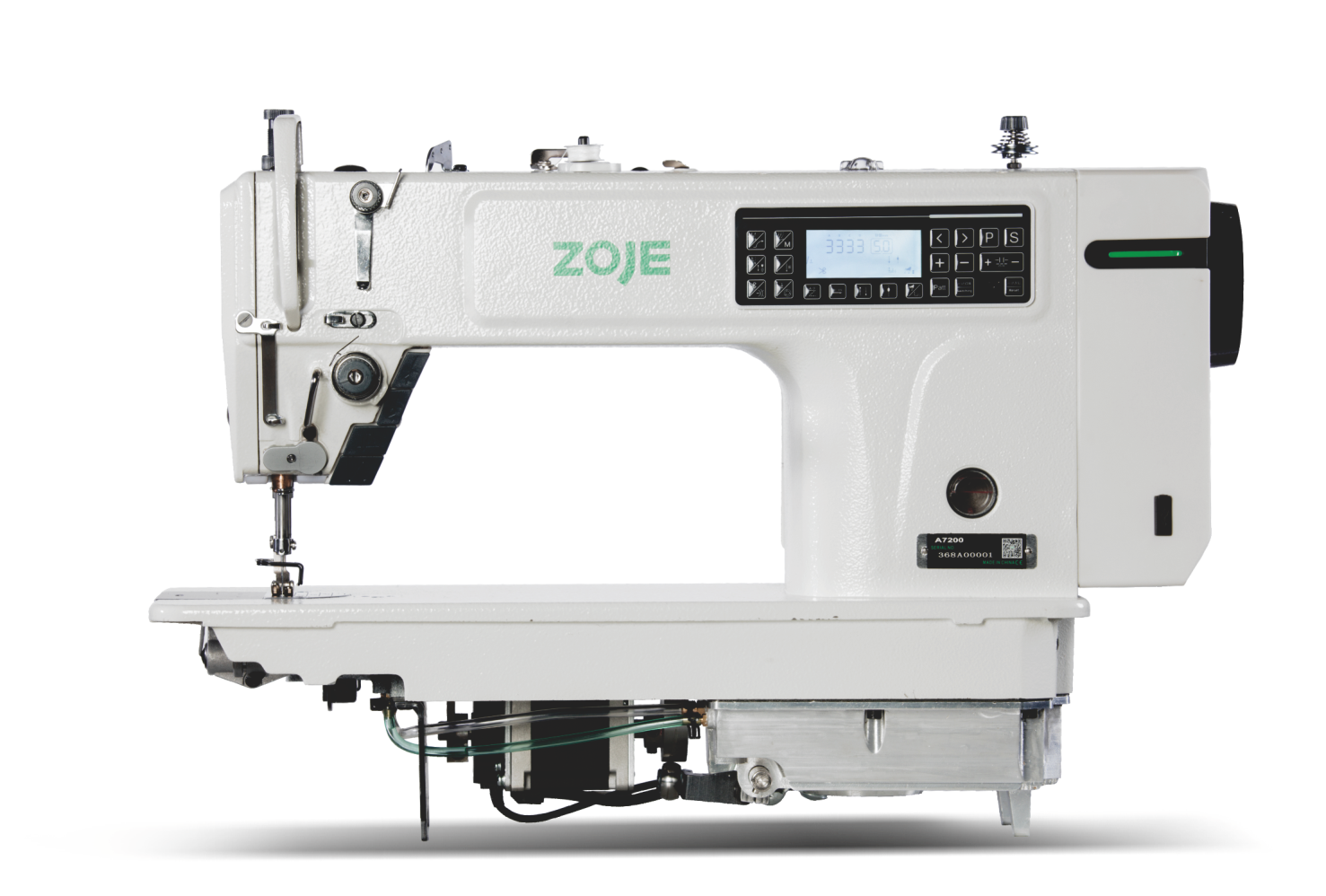

DOUBLE STEPPER INTELLIGENT LOCKSTITCH MACHINE

Core Technology

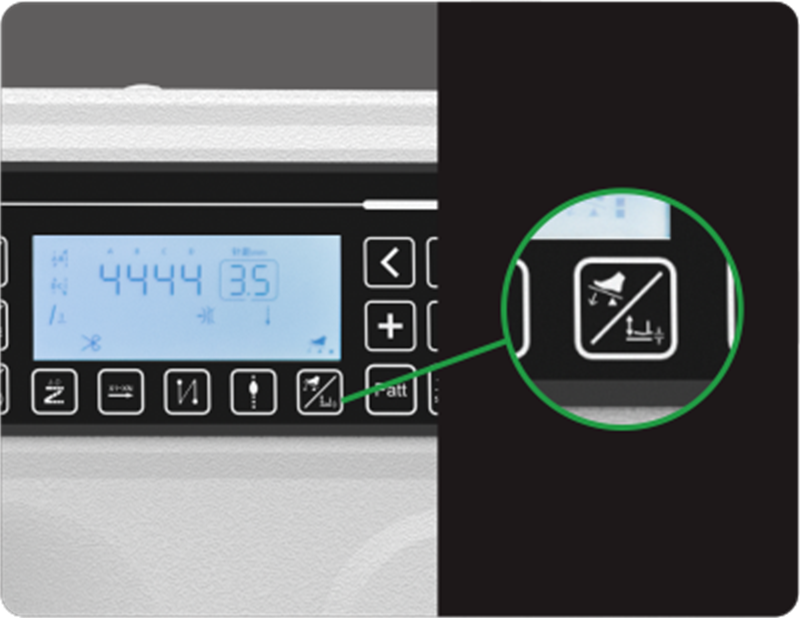

Smart Step 1

Quickly adiust the height and needle pitch of the presser foot through buttons, eliminating thecumbersome manual screwdriver adiustment


Smart Step 2

Use parameter adjustment for thread cutting length, time, and angle, suitable for various fabricsewing needs,improving production efficiency


Pedal adjustable

Pedal sensitivity multi gear one click switching; Flexible response to various sewing tasks

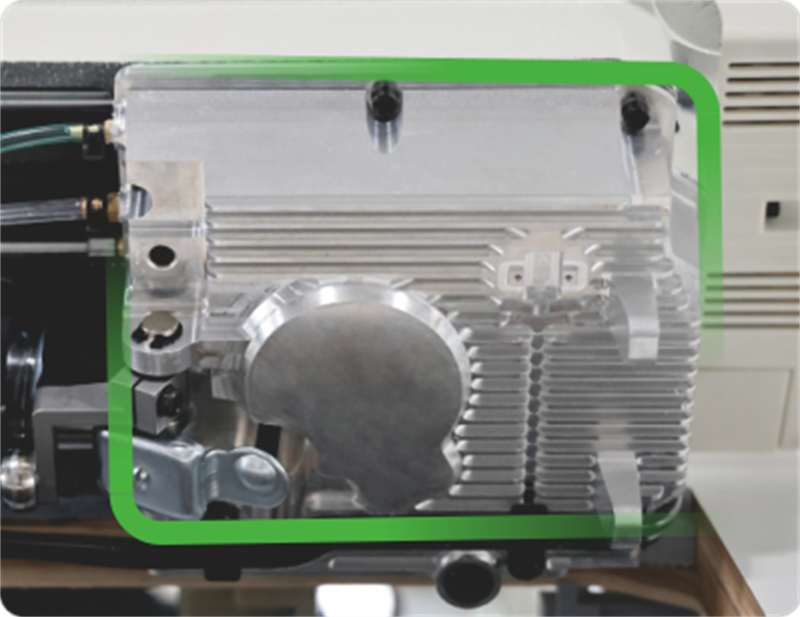

Sealing oil box

The bottom sealed oil box design prevents oil contamination of the fabric, making the oil pan clean,tidy, and durable

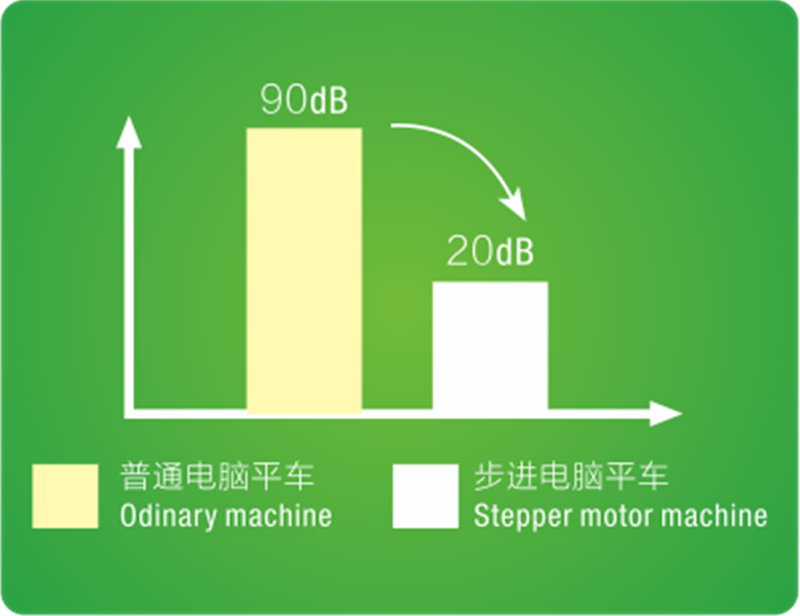

Silent reverse stitching

Farewell to the scientific design of ticking, control the reverse sewing structure through a steppermotor to achieve silent reverse sewing and provide you with a quiet and comfortable workingenvironment

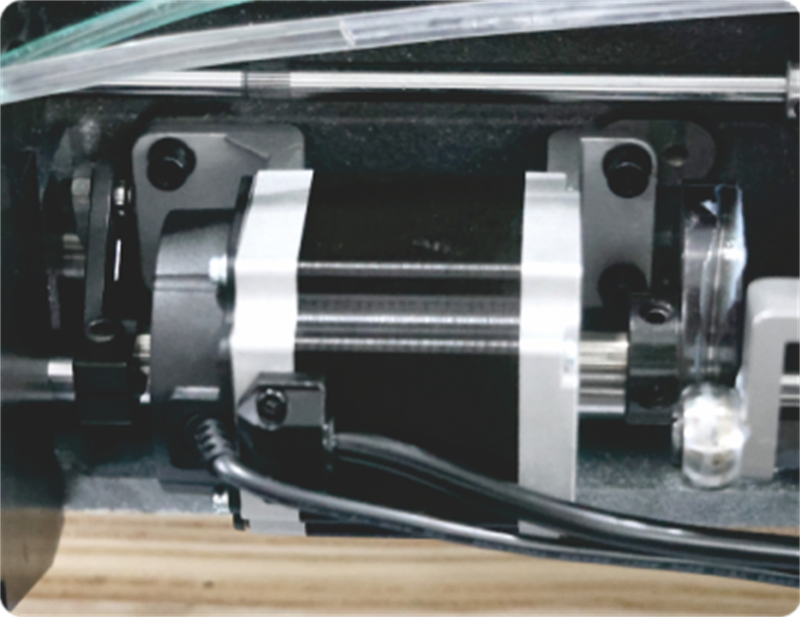

Accurate needle pitch

Control the needle pitch through a stepper motor, accurate to 0.1mm, and lock the needle pitchadiustment function according to factory needs to avoid arbitrary needle pitch adiustment


Product Features


Step motor drive foot lifter and trimming



Pedal adjustable



Sealed oil pan, clean and tidy



Silent reverse stitching

Technical Parameter
ModelA7200
Thicknesslight-weight materials
Sewing speed5000rpm
Stitch length5mm
Alternation  range5.5mm(Manual lift )-13mm(Knee lift)
NeedleDB×1 #11-#18
Lubricating oil10# white oil
power220V / 500W

※ For other models, please inquire about ZOJE Electronic Sample
