B9500 DIRECT-DRIVE
Big space
All-in-one machine
Large needle pitch

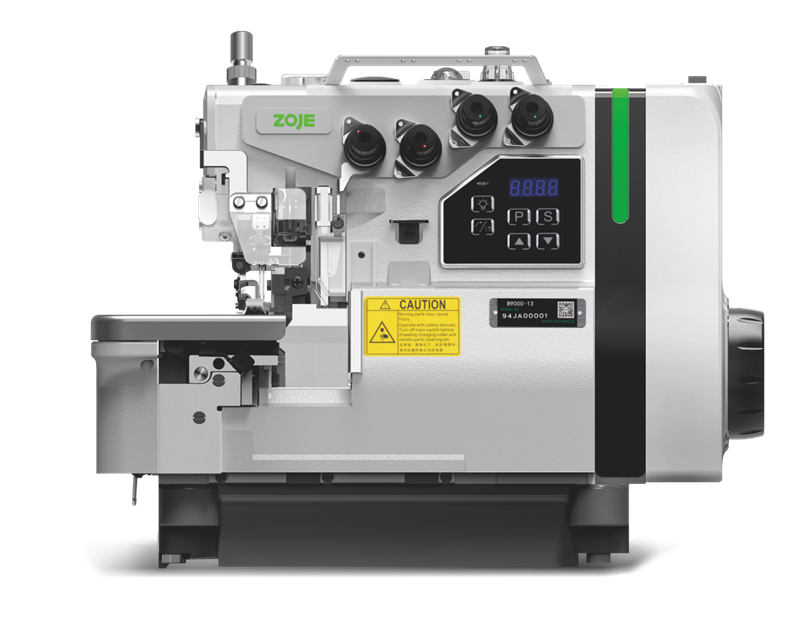

SUPER HIGH SPEED DIRECT-DRIVE OVERLOCK SEWING MACHINE
Core Technology
New appearance, more sense of technology and identification
Control box of all-in-one machine is more stable and portable
Large needle guage design,improve feeding efficiency
Patented oil supply system,more durable parts
Through shaft, lighter torque, faster reaction
Parts lightweight design for higher speed
Product Features

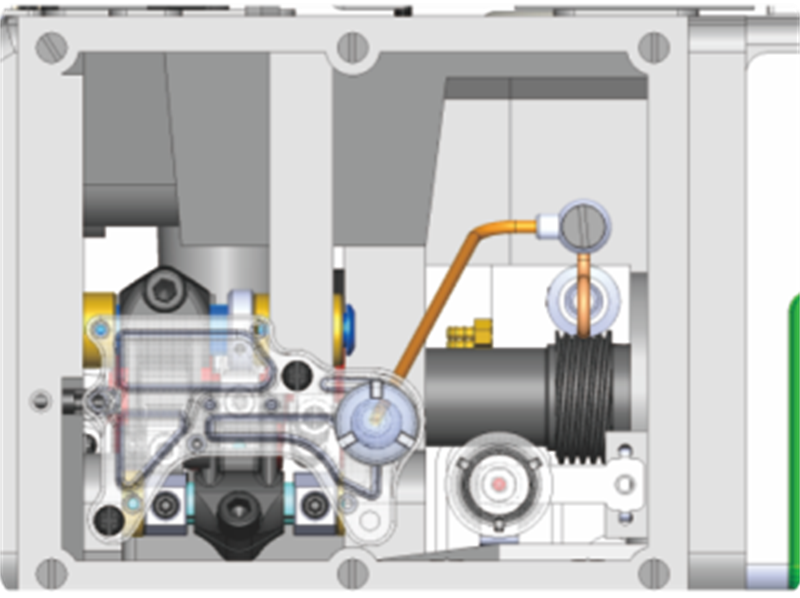

New oil supply system, more accurateoil delivery

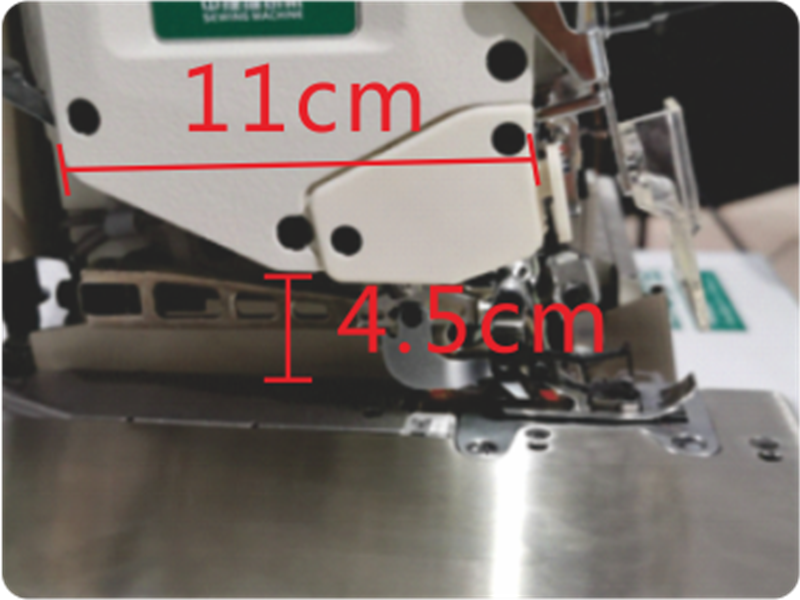

The head is only 11cm wide and 4.5cmhigh, with large operation space

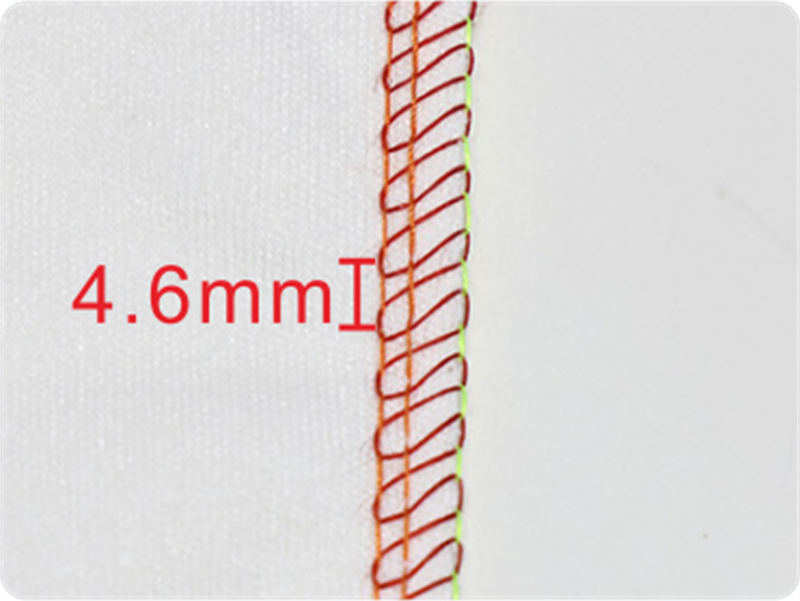

Large needle guage design,improve feeding efficiency
Technical Parameter
| Model | B9500-16S2 | B9500-13 | B9500-02×250 | B9500-355 |
| Needle | DCX27 11# | DCX27 11# | DCX27 11# | DCX27 11# |
| No.of needles | 1 | 2 | 2 | 3 |
| No.of threads | 3 | 4 | 4 | 6 |
| Needle gauge | 0 | 2 | 5 | 5 |
| Stitch width | 1.5 | 2+4 | 0.7-4.5 | 0.7-1.5 |
| Stitch length | 0.5-3.8 | 0.7-4.5 | 0.5-3.8 | 0.5-3.8 |
| Differential ratio | 0.7-2 | 0.7-1.5 | 0.7-2 | 0.7-2 |
| lternation range | 5.5 | 5.5 | 5.5 | 5.5 |
| wing speed | 6500 | 6500 | 6500 | 6500 |
※ For other models, please inquire about ZOJE Electronic Sample
Download user manualContact +86-400-807-9881
