Stepping differential
Strong sewing of thick fabric
Light thread trimming

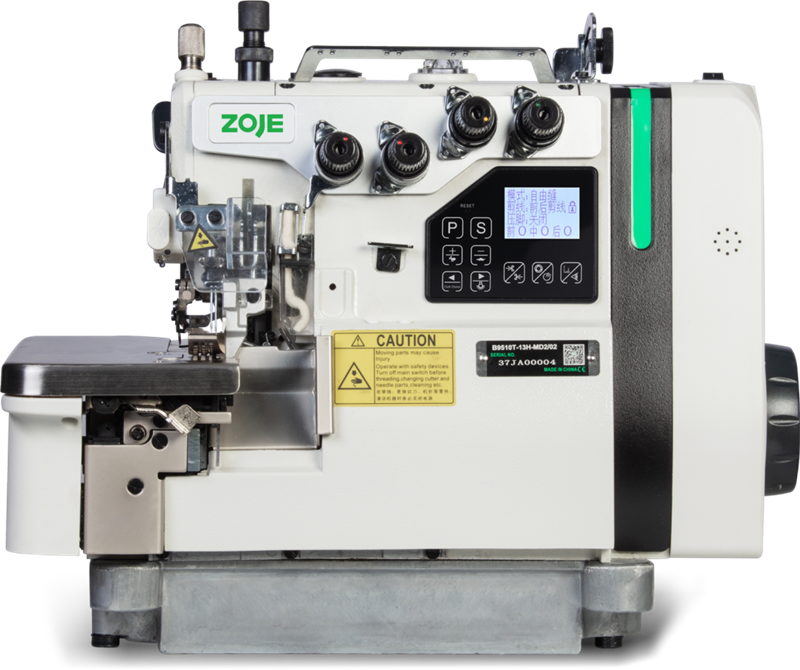

SUPER HIGH SPEED STEP DIFFERENTIAL INTELLIGENT OVERLOCK SEWING MACHINE
The differential model is equipped with a stepper motor to drive the presser foot lifting andthread cutting, which is the industry's first
The stepper motor controls the height and cutting angle of the presser foot for lifting andtrimming, which can be digitally adjusted, making it convenient and fast
The stepper motor has a light thread cutting sound, and there is no abnormal sound from thecutting knife impact
The spindle motor is designed with high torque, and 6 layers of thick velvet sleeping clothesare easily worn
The patented design of the upper differential adjustment mechanism has a large adjustmentrange and light wrench torque

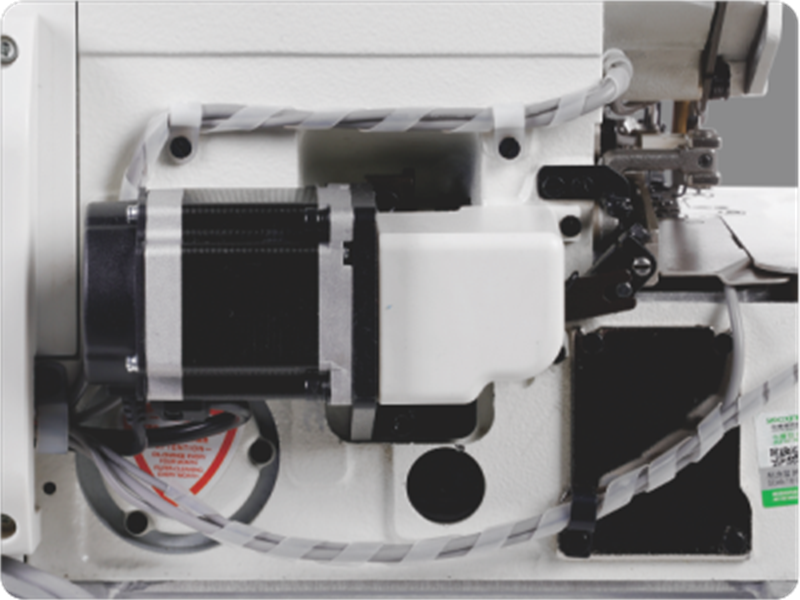

Step motor drive foot lifter and trimming

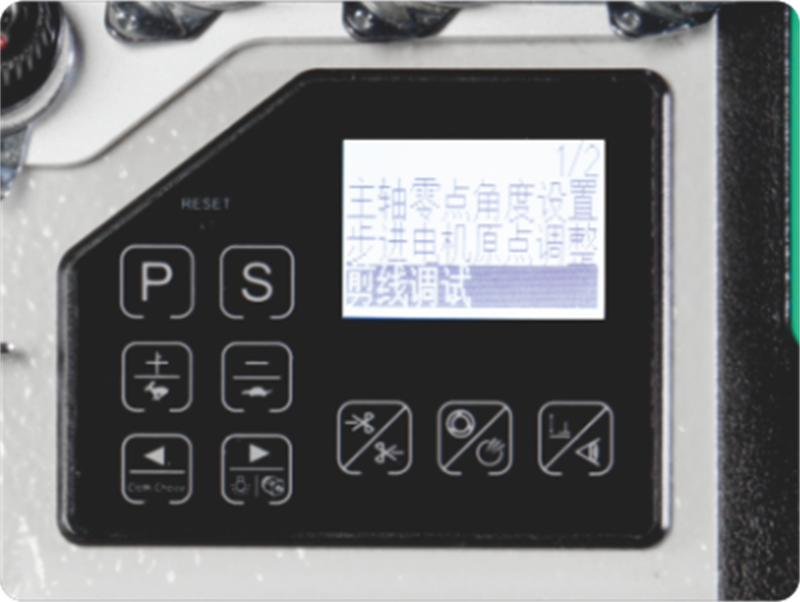

Digital control interface

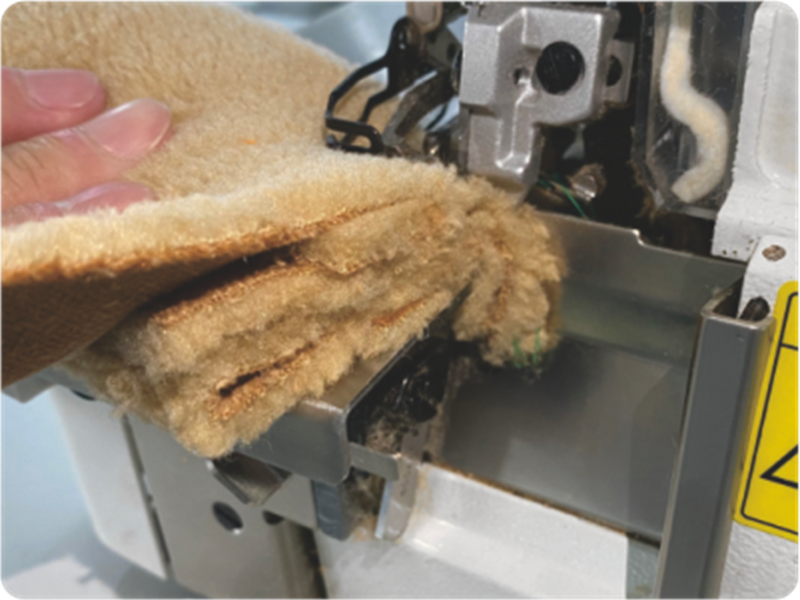

6 layers of thick velvet sleeping clothesare easily worn

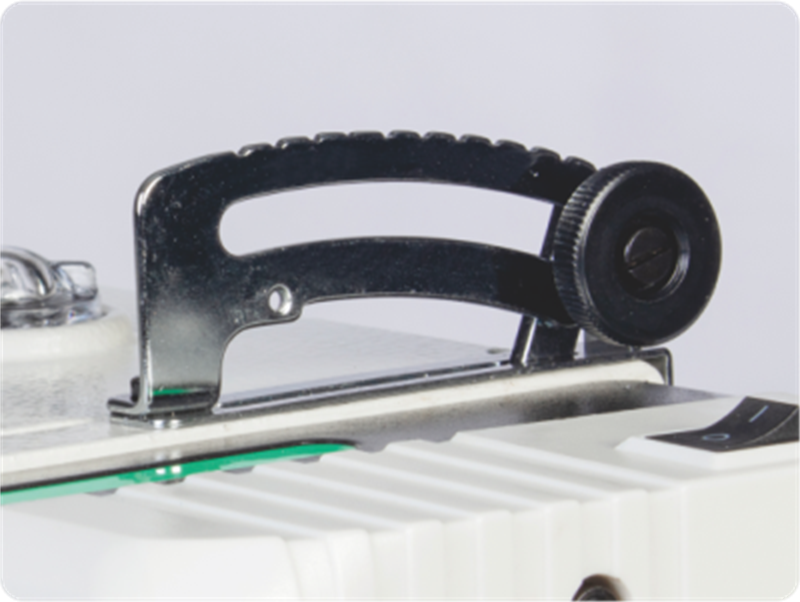

The patented design of the upper differentialadjustment mechanism
| Model | B9510T- 13SH-MD2/MED3/MPD3 | B9510T- 38- MD2/MED3/MPD3 |
| Needle | DCX27 14# | DCX27 14# |
| No.of needles | 2 | 2 |
| No.of threads | 4 | 5 |
| Needle gauge | 2 | 3 |
| Stitch width | 2+4 | 3+4 |
| Stitch length | 1-7 | 1.5-6 |
| Differential ratio | 0.7-1.5 | 0.7-1.7 |
| lternation range | 7 | 7 |
| wing speed | 6500 | 6500 |
※ For other models, please inquire about ZOJE Electronic Sample
Download user manual
