Strong sewing
No displacement
Big Stitch

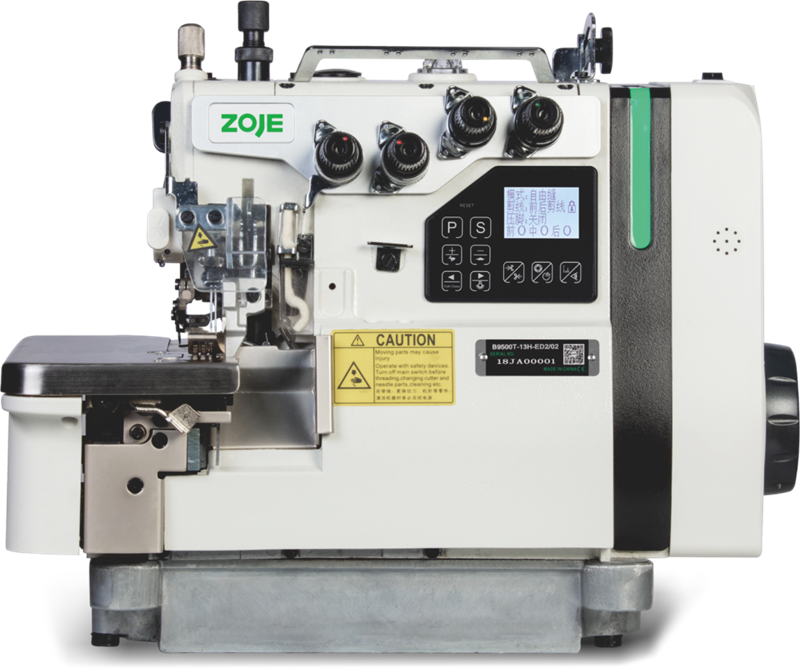

UPPER AND LOWER DIFFERENTIAL HIGH-SPEED INTELLIGENTOVERLOCK SEWING MACHINE

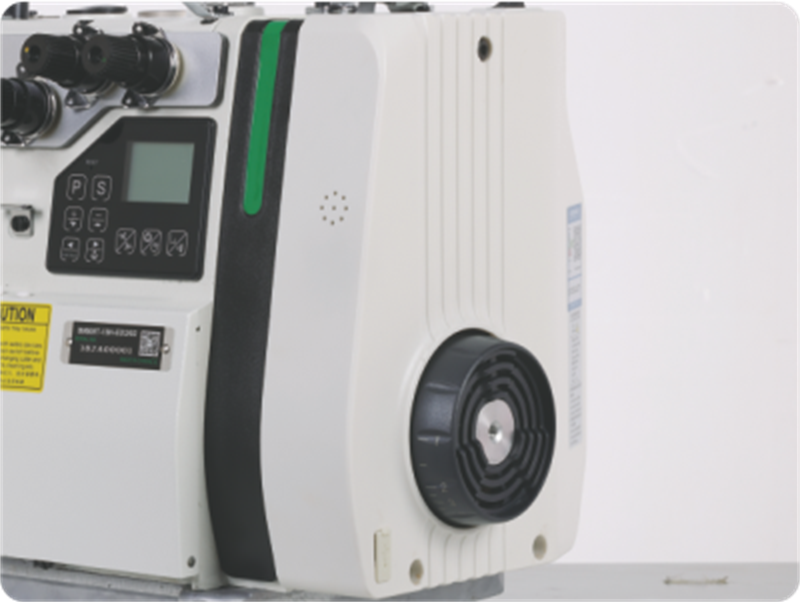

Integrated electric control,stable and reliable
Adopt all-in-one electric control, more energy saving, more stable, save electric control assemblyto the board time, more convenientinstallation,improve efficiency

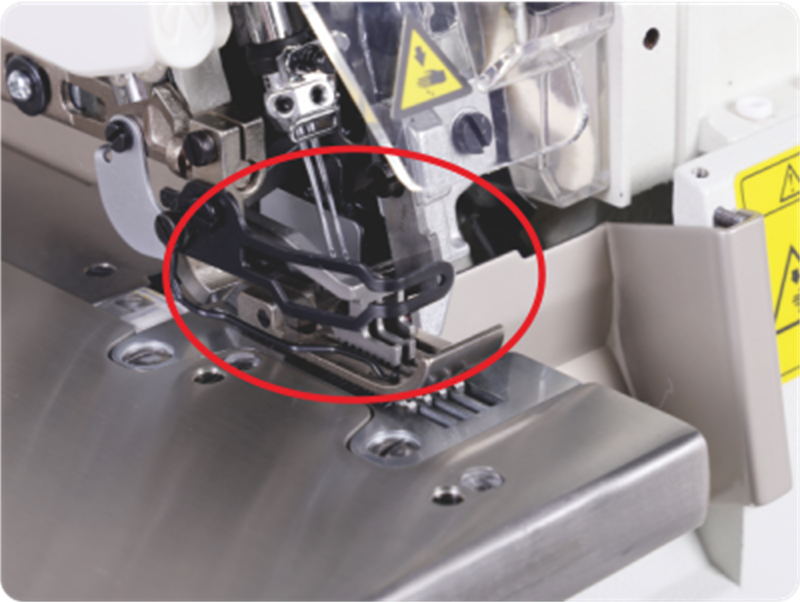

Synchronous feeding,better sewing
The patent design of upper differential adjustment mechanism is adopted to synchronously feedthe upper and lower teeth to avoid sewing distortion and dislocation, with better sewing effecthigher quality and wider adaptability
Cloth identification,convenient operation
One button automatic adjustment of sensor induction value, intelligent identification of meshgauze, fishing net cloth and other special fabrics, a wider range of use, sewing more easily

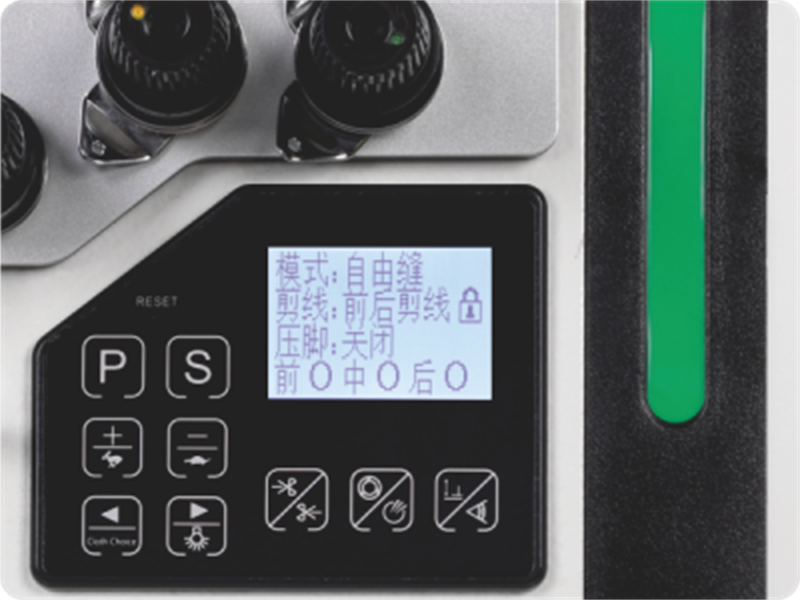

Voice navigation,easy to understand
Touch dot matrix LCD screen, voice broadcast, easy to understand, more convenient operation
Super power USB,charging no worries
With USB charging interface, mobile phone charging, external fan, warm baby, software upgradeand so on
Integrated electric control,stable and reliable
Synchronous feeding, better sewing

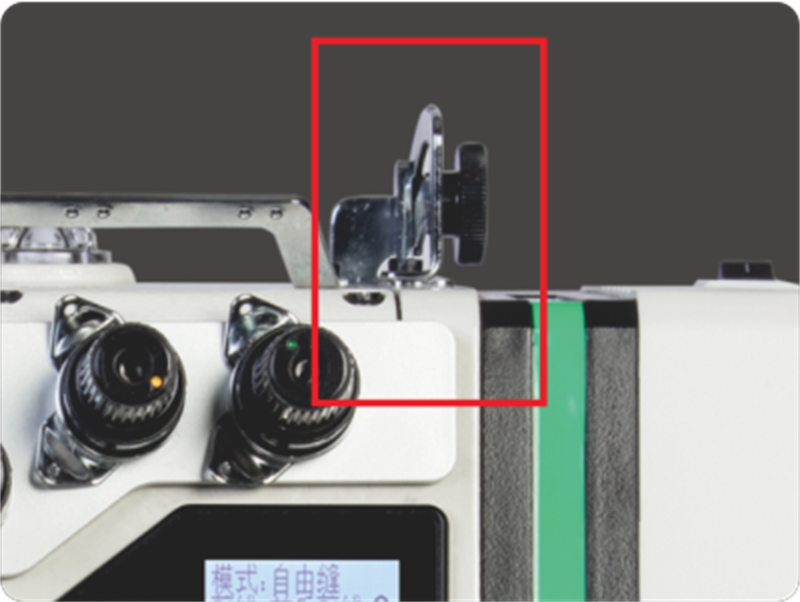

Upper differential regulationpatent design
Cloth identification,convenient operation
| Model | B9500-13BL- PD3 |
| Needle | DCX27 11# |
| No.of needles | 2 |
| No.of threads | 4 |
| Needle gauge | 2 |
| Stitch width | 2+4 |
| Stitch length | 0.8-4.2 |
| Differential ratio | 0.8-1.8 |
| lternation range | 5.5 |
| wing speed | 7000 |
※ For other models, please inquire about ZOJE Electronic Sample
Download user manual
