B9500-13BL-PD3

B9500-13BL-PD3

Cover the thread

High efficiency

Cloth recognition

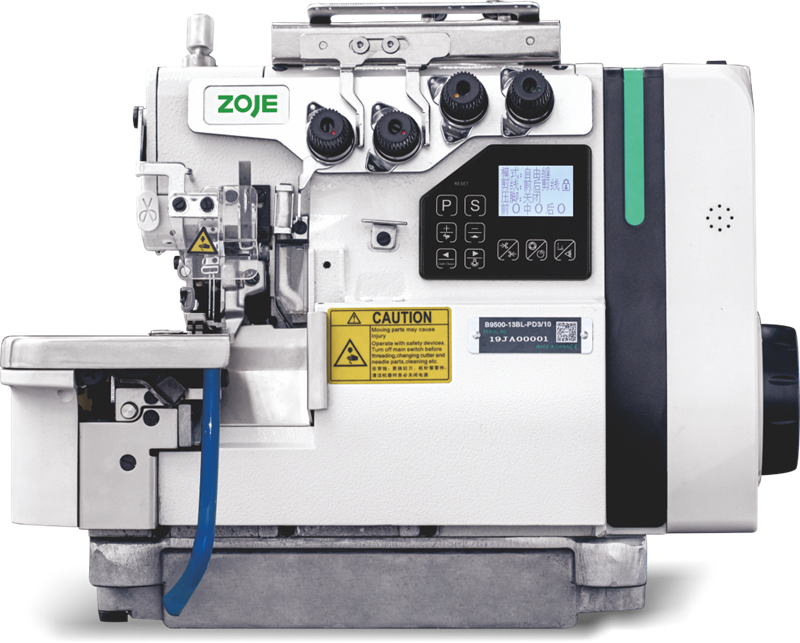

SUPER HIGH SPEED AUTOMATIC ALLY COVERS STITCHESINTELLIGENT OVERLOCK SEWING MACHINE

Core Technology

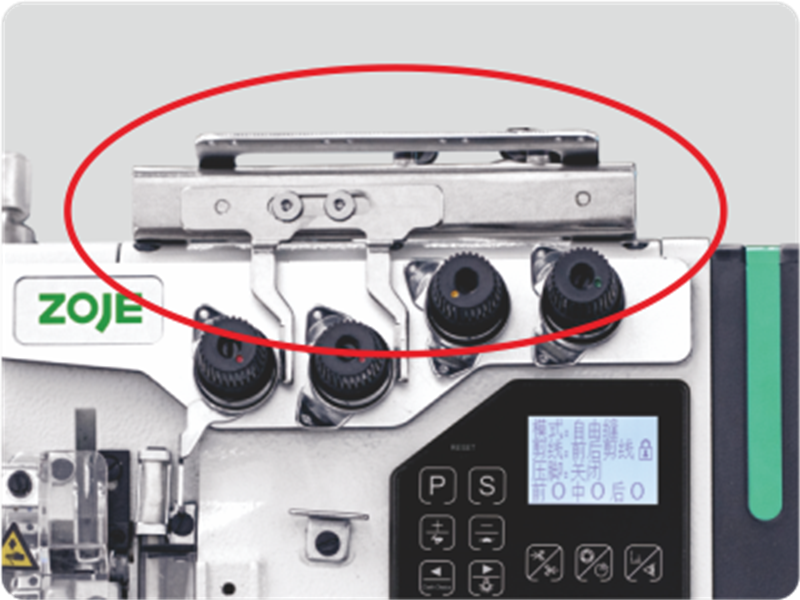

Newloose wire device,more stable stitch wrapping

After sewing, loosen two straight stitches at the same time, so that the thread braid after cutting ismore easily sucked into the needle board suction pipe, so that the next sewing is smoother

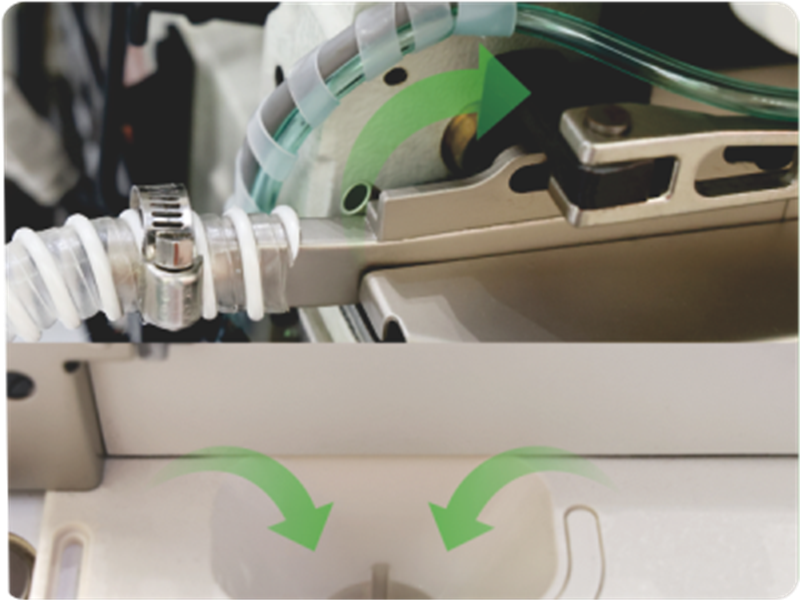

Acuuming before and after, comfortable and clean

With the function of waste suction before and after, waste cloth suction before, waste threadsuiction after, effective dustproof and clean environmental protection when sewing


Cloth identification,convenient operation

One button automatic adiustment of sensor induction value, intelligent identification of meshgauze, fishing net cloth and other special fabrics, a wider range of use, sewing more easily


Oil free, clean and durable

Thie tooth frame is equipped with four oil seals to prevent oil, avoid oil contamination of the fabricand effectively reduce the cloth caused by oil pollution Reworked, neat and durable

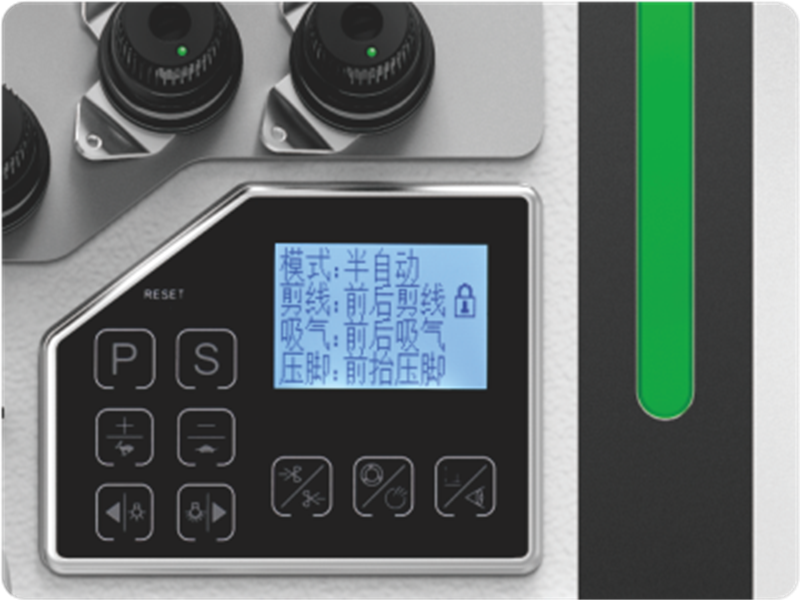

One key restore,easy operation

Users can according to the need, restore to self-set parameters or factory parameters, do not haveto:press the wrong and trouble


Sensor sensing,accurate and fast

Equipped with fast presser foot, front and back cutting three sensors, sensor closer to the operator.presser foot more fast,accurate induction sewing cloth


Product Features


New loose wire device, more stablestitch wrapping

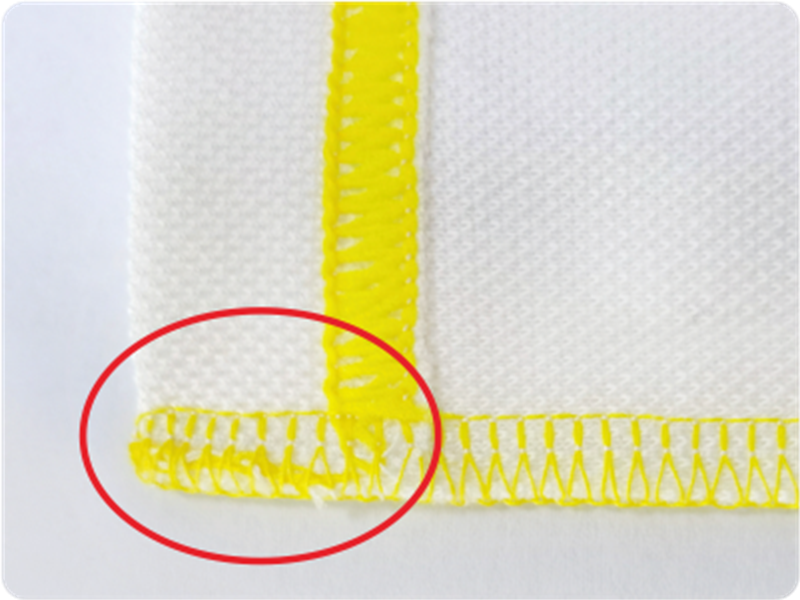

Automatically covers stitches toprevent breakage



Vacuuming before and after,comfortable and clean



Cloth identification,convenient operation

Technical Parameter
ModelB9500-13BL- PD3
NeedleDCX27 11#
No.of needles2
No.of threads4
Needle gauge2
Stitch width2+4
Stitch length0.8-4.2
Differential ratio0.8-1.8
lternation range5.5
wing speed7000

※ For other models, please inquire about ZOJE Electronic Sample
