Three automatic
Stable performance
Short thread head

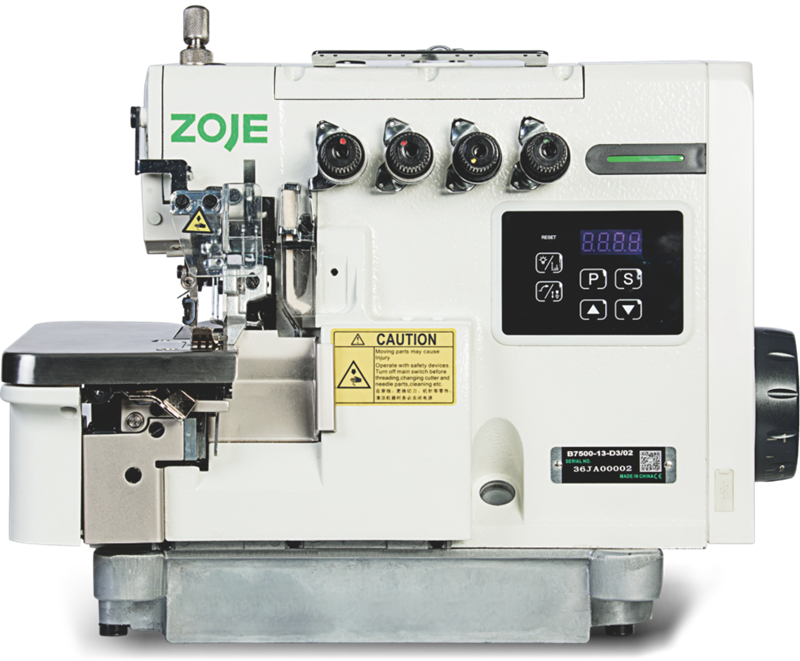

HIGH SPEED INTELLIGENT OVERLOCK SEWING MACHIE

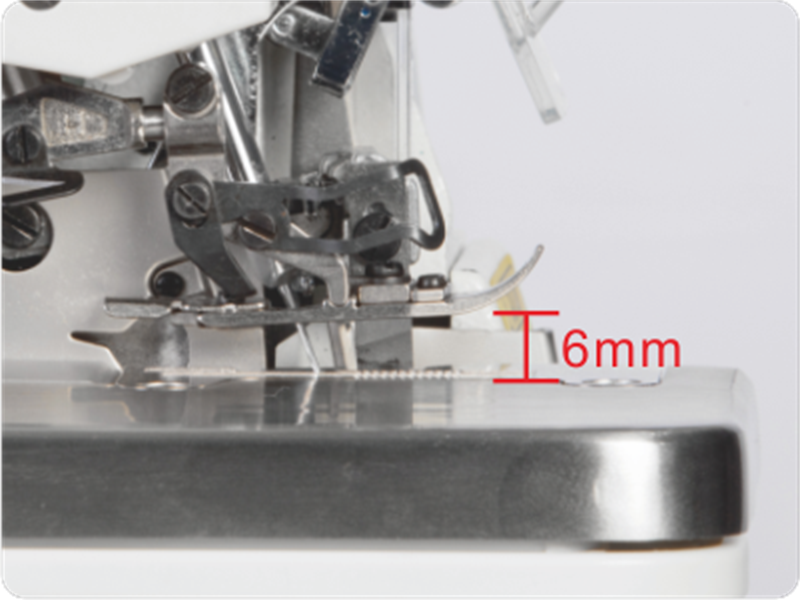

Increase the material placement space and design the presser foot height to increasefrom 5.5mm to 6.5mm

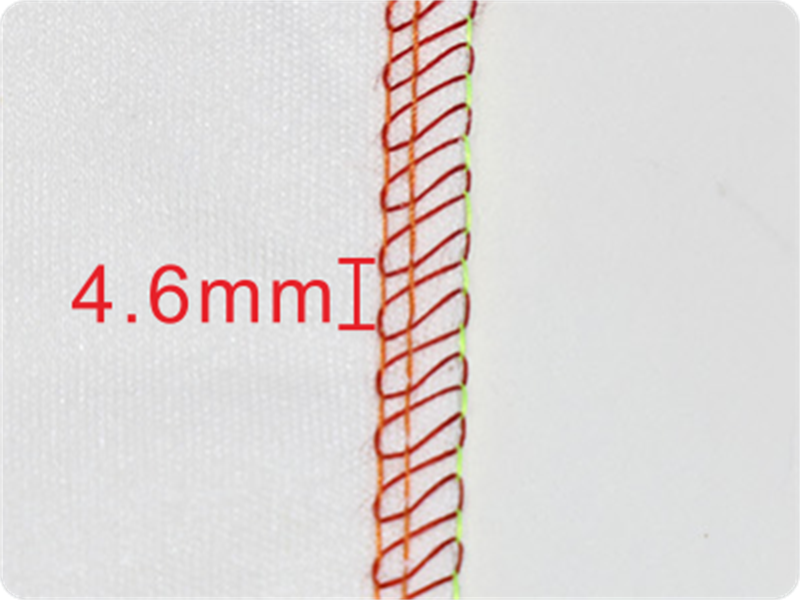

The side suction and cutting thread is made of non cutting cloth, with a short thread emdthat can be controlled within 5mm

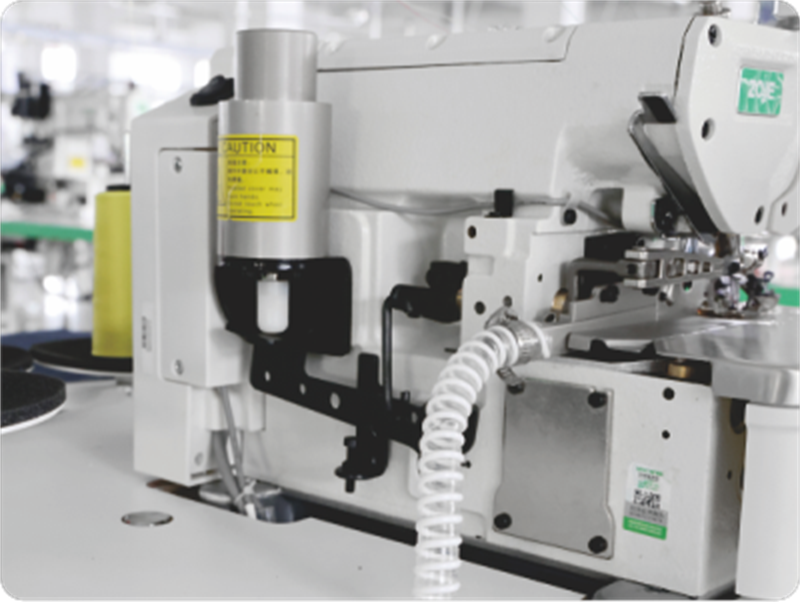

Three automatic (side suction and culting line+electromagnet lifing pressure foot+pneumatic waste suction,with more stable performance and higher cost-effectiveness
Increase the material placement spaceand design the presser foot height
Three automatic, with more stableperformance and higher cost-effectiveness
The side suction and cutting thread ismade of non cutting cloth

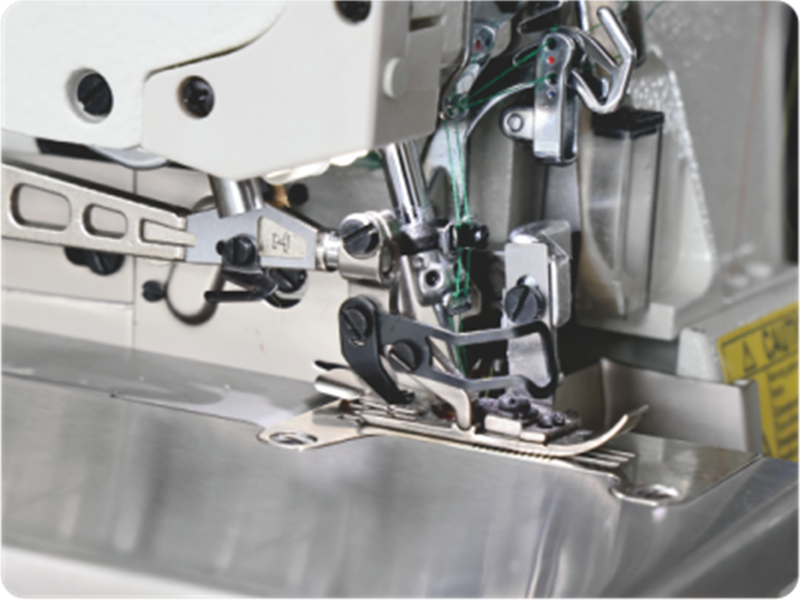

Large needle guage design,improve feeding efficiency
| Model | B7500- 13- ED2/PD3 | B7500- 13-SD3 | B7500- 38- ED2/PD3 | B7500- 86- ED2/PD3 |
| Needle | DCX27 11# | DCX27 11# | DCX27 14# | DCX27 21# |
| No.of needles | 2 | 2 | 2 | 2 |
| No.of threads | 4 | 4 | 5 | 6 |
| Needle gauge | 2 | 2 | 3 | 5 |
| Stitch width | 2+4 | 2+4 | 3+4 | 5+6 |
| Stitch length | 0.7-4.5 | 0.7-4.5 | 0.5-3.8 | 0.7-4.5 |
| Differential ratio | 0.7-1.5 | 0.7-1.5 | 0.7-2 | 0.7-1.5 |
| lternation range | 6.5 | 6.5 | 5.5 | 7 |
| wing speed | 6500 | 6500 | 6500 | 6500 |
※ For other models, please inquire about ZOJE Electronic Sample
Download user manual
