Single step
Thick and thin
Super fast start and stop

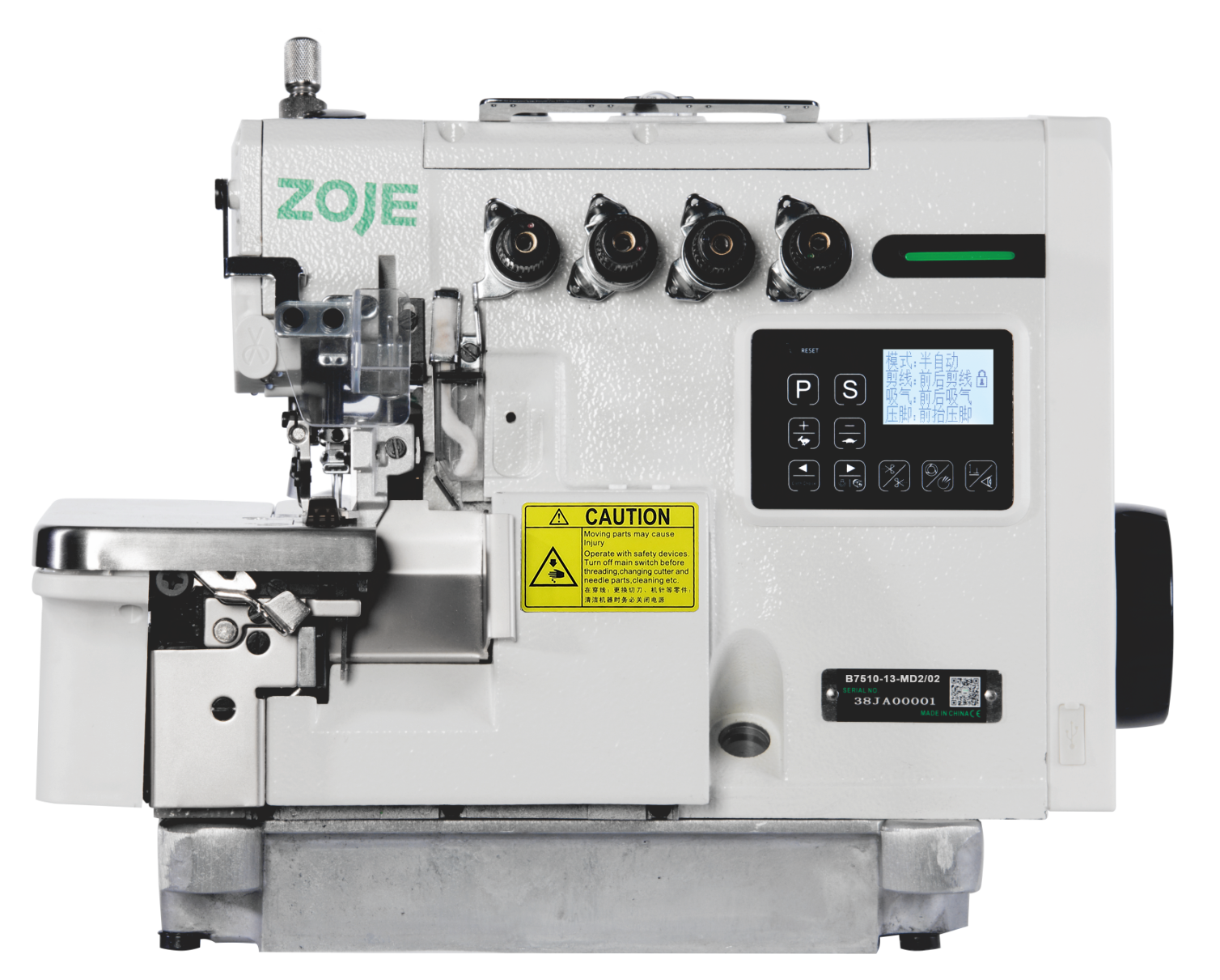

SUPER HIGH SPEED STEP INTELLIGENT OVERLOCK SEWING MACHINE
Adopting a high-end dot matrix LCD touch screen, it can display text and is easy to operate
The height of the presser foot is designed to be raised, increasing from 5.5mm to 6.5mmand the over thickness capacityis increased by 18%
The stepper motor controls the lifting of the presser foot and thread cutting, and the heightof the presser foot and thread cutting angle can be digitally adjusted, making it convenientand fast
The stepper motor has a light thread cutting sound, and there is no abnormal sound fromthe cutting knife impact
Hollow seam noise reduction design, with no abnormal noise in the hollow seam
The optimized design of the thread passing mechanism ensures more stable thick and thinsewing stitches, and has strong through-thickness performance
Driven by a servo motor, it starts and stops very quickly, with a starting time of 34% fasterthan Hall motor at 6000 rpm; The braking time is 56% faster

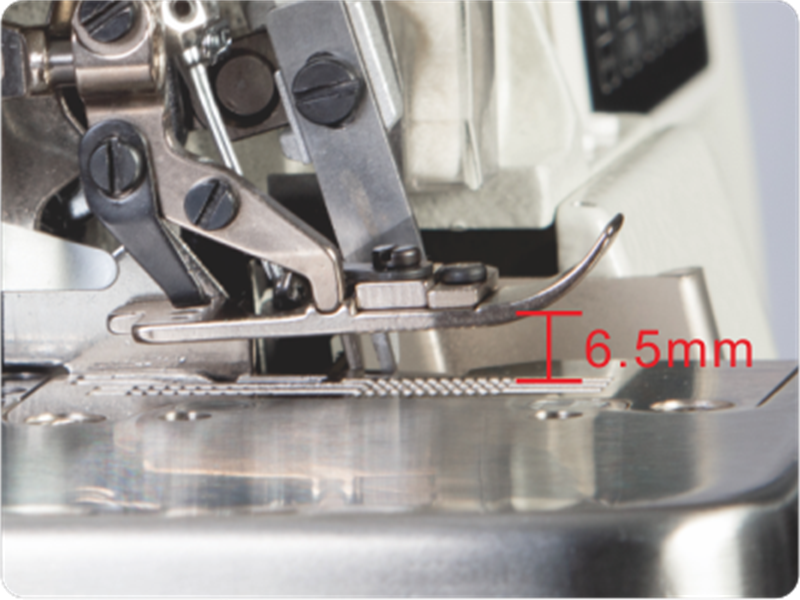

Increase the material placement spaceand Press foot height raised

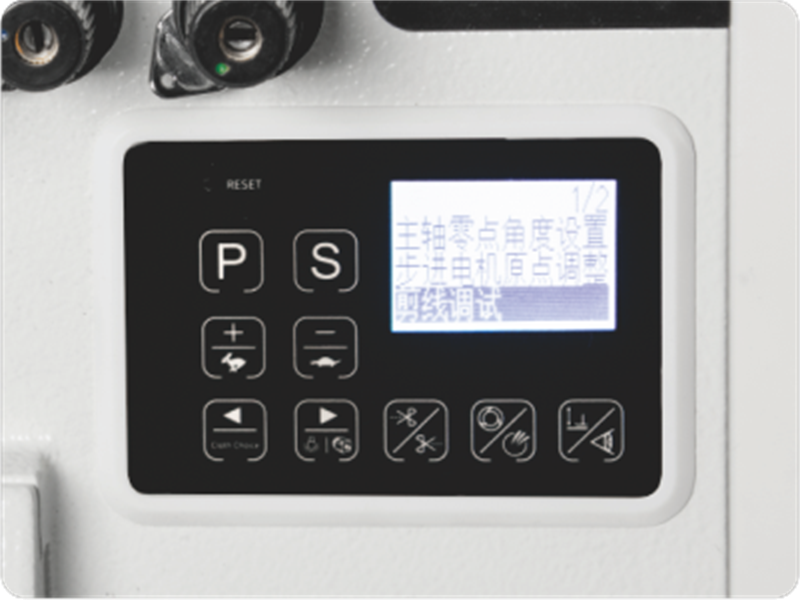

Digital control interface

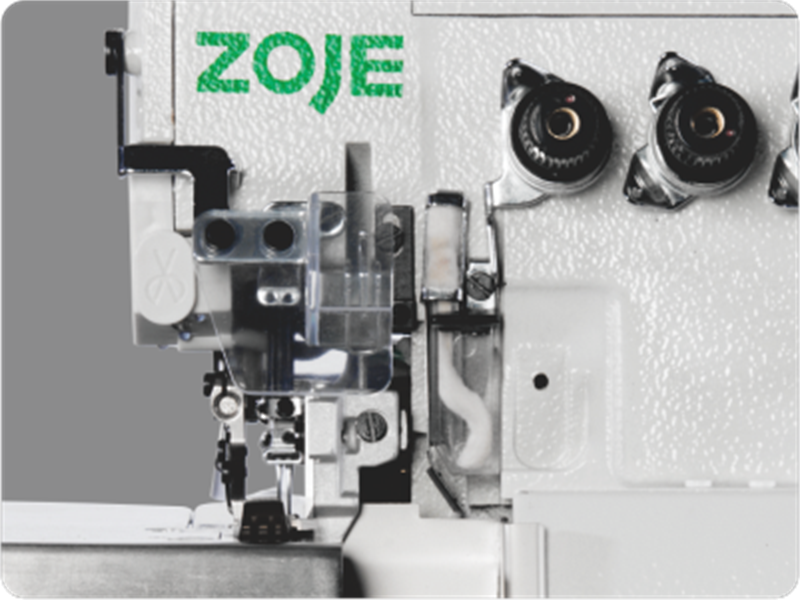

The optimized design of the threadpassing mechanism

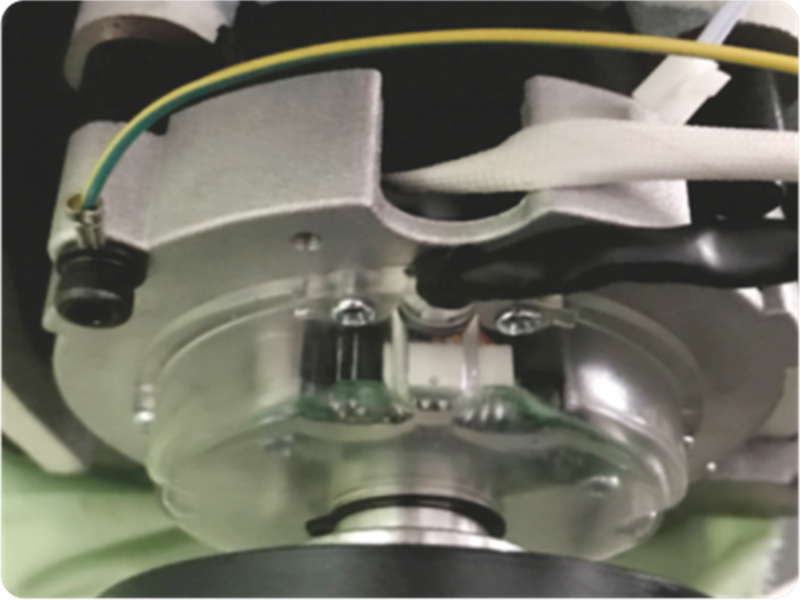

Servo motor, start and stop super fast
| Model | B7510- 17- MD2/MED3/MPD3 | B7510- 13- MD2/MED3/MPD3 | B7510- 38- MD2/MED3/MPD3 | B7510- 70- MD2/MED3/MPD3 | B7510- 86- MD2/MED3/MPD3 |
| Needle | DCX27 11# | DCX27 11# | DCX27 14# | DCX27 21# | |
| No.of needles | 1 | 2 | 2 | 2 | 2 |
| No.of threads | 3 | 4 | 5 | 5 | 5 |
| Needle gauge | 0 | 2 | 3 | 5 | 5 |
| Stitch width | 4 | 2+4 | 3+4 | 5+5 | 5+6 |
| Stitch length | 0.5-3.8 | 0.7-4.5 | 0.5-3.8 | 0.5-3.8 | 0.7-4.5 |
| Differential ratio | 0.7-2 | 0.7-1.5 | 0.7-2 | 0.7-2 | 0.7-1.5 |
| lternation range | 7 | 7 | 6 | 7 | 7 |
| wing speed | 7000 | 7000 | 7000 | 7000 | 7000 |
※ For other models, please inquire about ZOJE Electronic Sample
