B9000
Direct drive
All-in-one
Large needle pitch

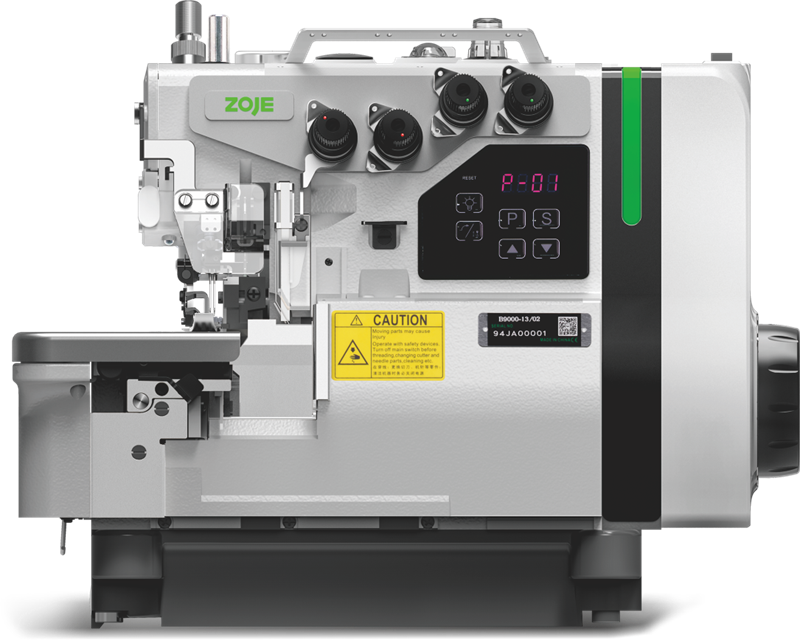

HIGH-SPEED INTELLIGENT OVERLOCK SEWING MACHINE
Core Technology
New appearance, more sense of technology and identification
Control box of all-in-one machine is more stable and portable
Large needle guage design,improve feeding efficiency
Patented oil supply system, more durable parts
Through shaft, lighter torque, faster reaction
All-inclusive needle bar oil absorption,prevent the pollution of fabrics
Simple panel, easy to operate
Product Features

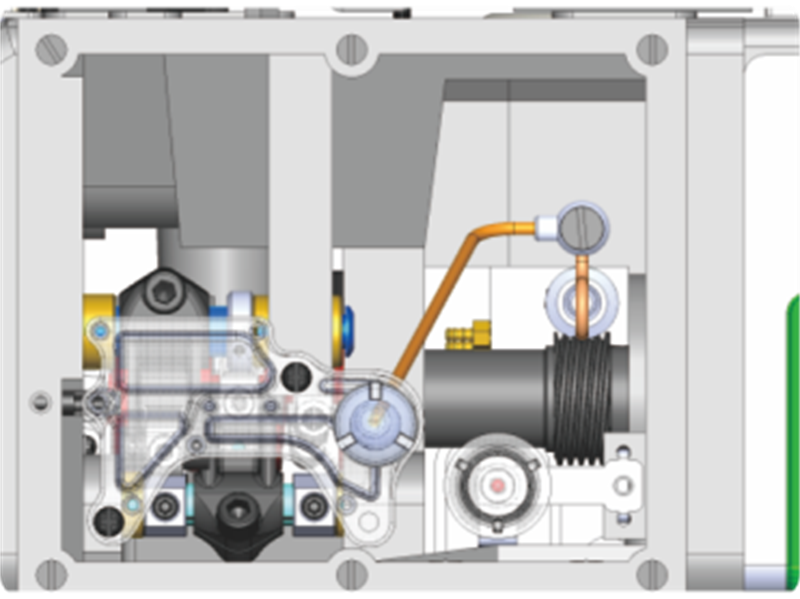

New oil supply system, more accurateoil delivery

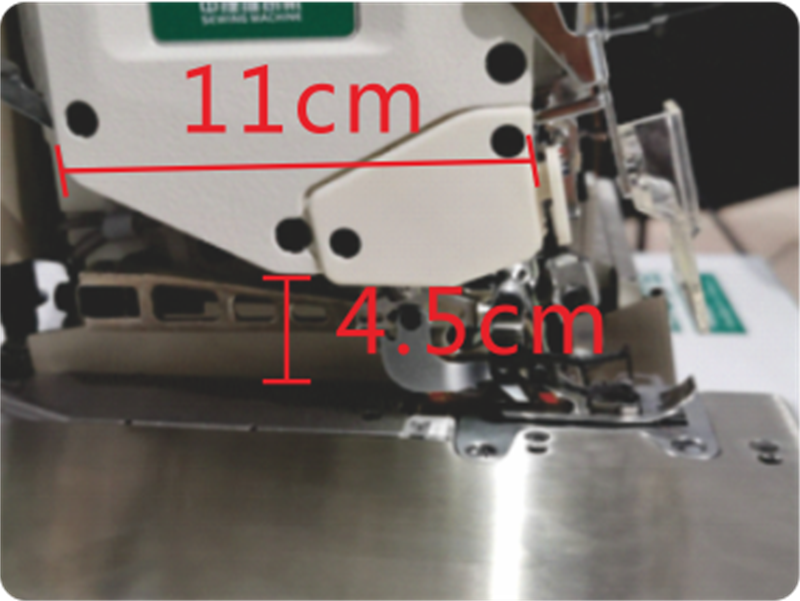

The head is only 11cm wide and 4.5cmhigh, with large operation space
Technical Parameter
| Model | B9000-17 | B9000-13 | B9000-38 | B9000-70 |
| Needle | DCX27 11# | DCX27 11# | DCX27 14# | DCX27 14# |
| No.of needles | 1 | 2 | 2 | 2 |
| No.of threads | 3 | 4 | 5 | 5 |
| Needle gauge | 0 | 2 | 3 | 5 |
| Stitch width | 4 | 2+4 | 3+4 | 5+5 |
| Stitch length | 0.8-4.5 | 0.8-4.5 | 0.8-4 | 0.8-4 |
| Differential ratio | 0.8-1.5 | 0.8-1.5 | 0.8-1.5 | 0.8-1.5 |
| lternation range | 5.5 | 5.5 | 5.5 | 5.5 |
| wing speed | 6000 | 6000 | 6000 | 6000 |
※ For other models, please inquire about ZOJE Electronic Sample
