Built-in stepper model
Cutting accurate
Less fault

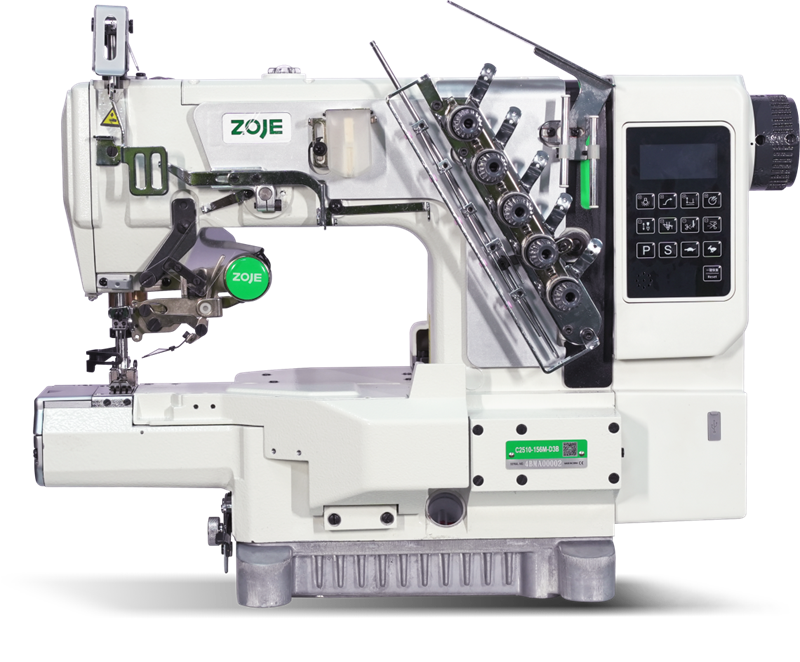

HIGH SPEED STEP CYLINDER TYPE INTERLOCK MACHIME

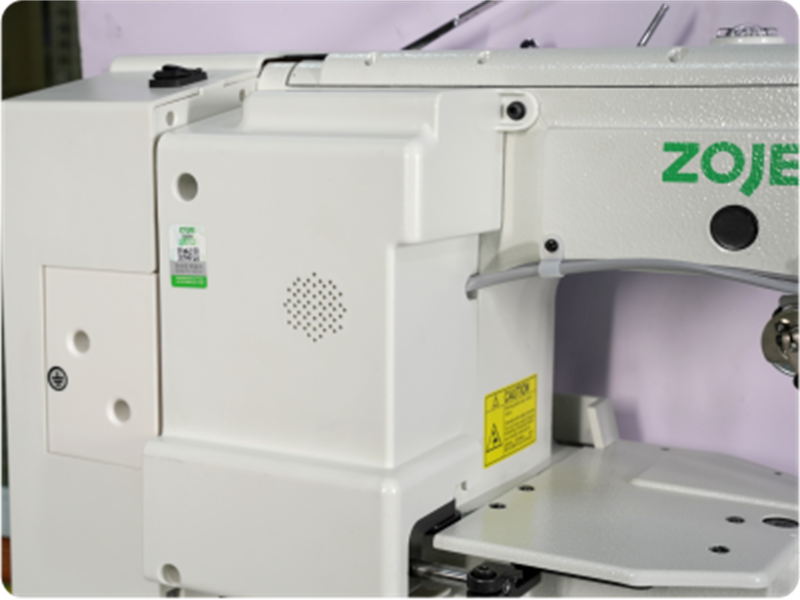

Built-in Stepper Motor for Thread Cutting and Presser Foot Lifting
The stepper device is built into the machine body, providing a sleek and aesthetically pleasingappearance.it prevents encoder malfunctions caused by lint entering the mechanism
DgitalAdjustment of Presser Foot Height
The stepper motor controls thread cutting and presser foot lifting. it offers fast and precise threadcutting, with digitally adjustable presser foot height. This minimizes equipment adjustments whenswitching between different styles or seasons

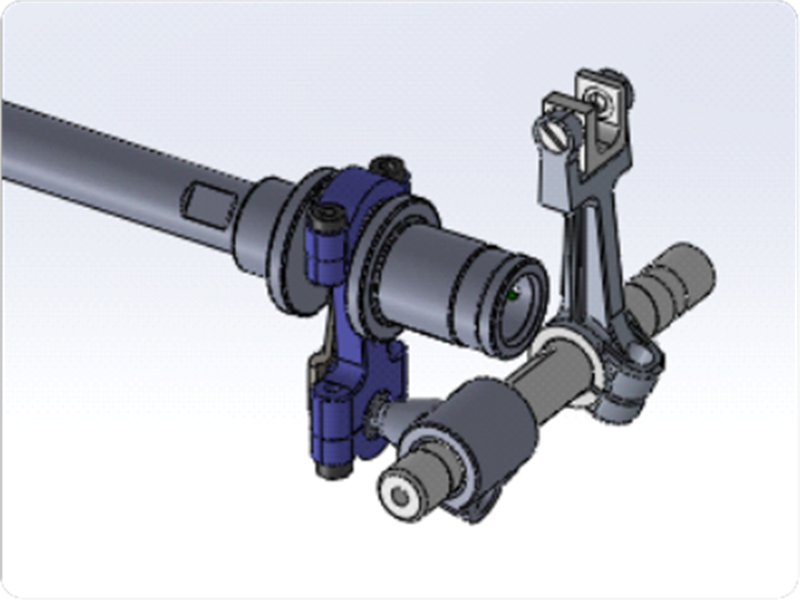

High-Speed SilentTransmission Structure
The factory default rotational speed is increased to 4500 rpm, and the overall machine noise iscÃntrolled within 8i dB at the factory default rotational speed of 4500 rpm

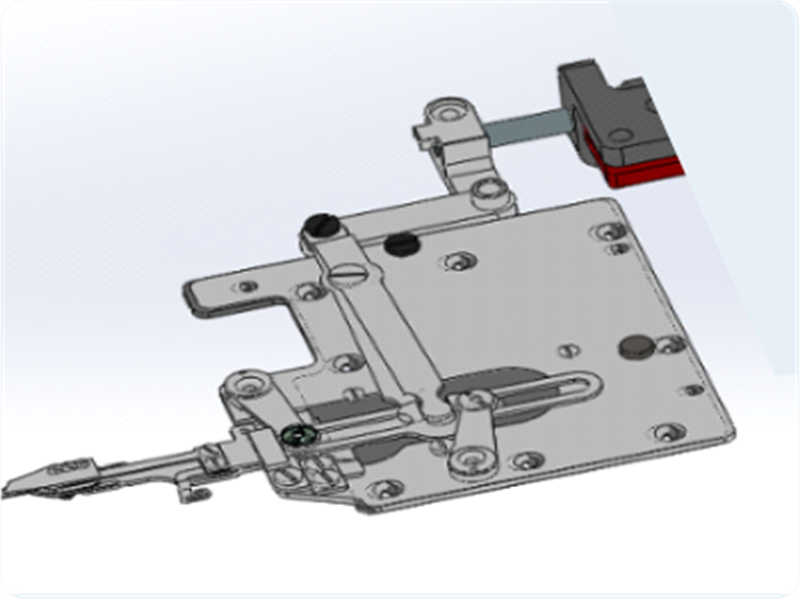

Quick Positioning and Installation for Adjusting Thread Cutting Blade Assembly
The brand-new thread cutting blade assembly with quick positioning and adjustment features reducesthe skill requirements for maintenance personnel, it is easy to learn and convenient to adjust
Easy sewing from thin to thick,improvedsewing performance
Built-in stepper motor for thread cuttingand presser foot lifting
High-speed silent transmission structure
Quick positioning and installation forAdjusting thread cutting blade assembly
| Model | C2510- 156M- D3B/02 |
| Needle | UY128GAS11# |
| No.of needles | 3 |
| No.of threads | 5 |
| Stitch width | 5.6 |
| Stitch width | 1.4-4.5 |
| Differential ratio | 1/0.7-1/1.7 |
| lternation range | 10 |
| wing speed | 5500 |
※ For other models, please inquire about ZOJE Electronic Sample
