Thread cutting braid more faster
Threading is more convenient

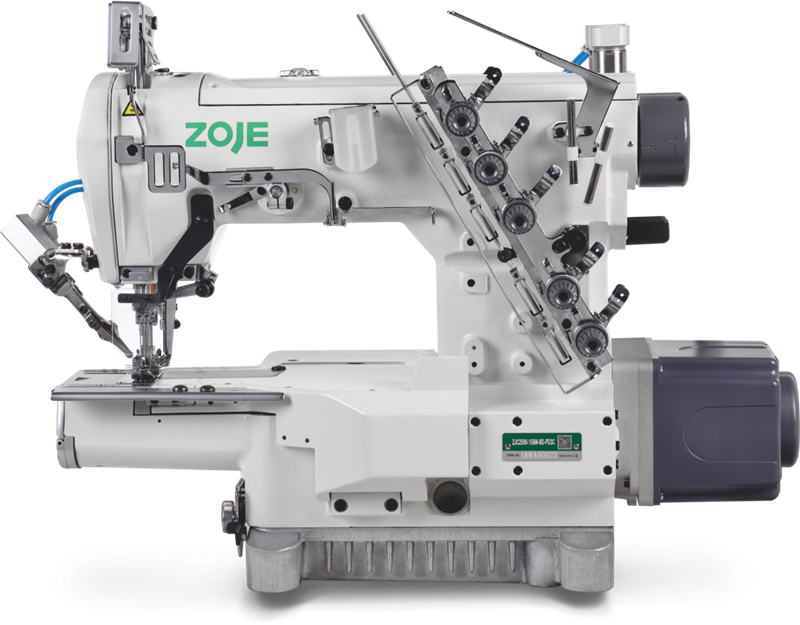

HIGH-SPEED DIRECT-DRIVE AUTOMATIC TRIMMING CYLINDER TYPE INTERLOCK SEWING MACHINE
The latest patented flip type needle bar shield design is convenient for threading

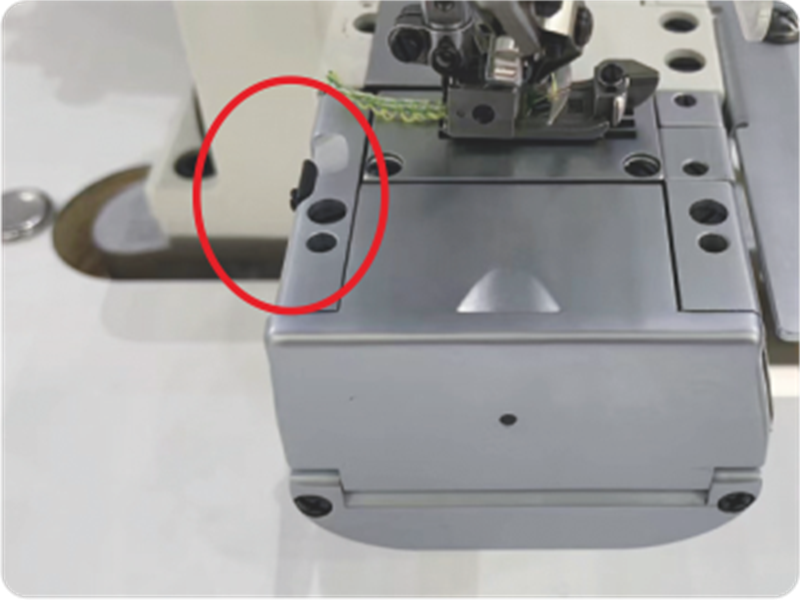

The unique design of the thread cutting knife makes the user's thread cutting braid moreconvenient and fast

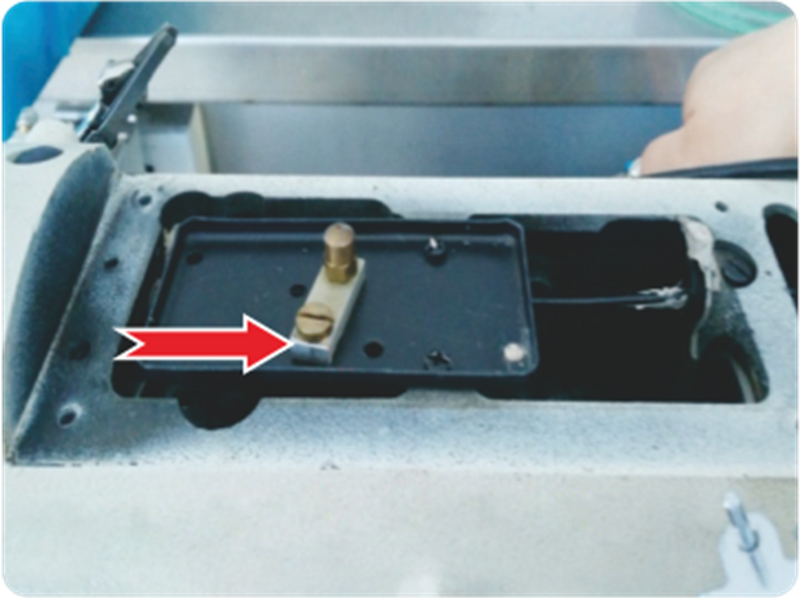

The amount of oil on the machine head can be adiusted to meet the needs of diferentcustomers
The circumference of the barrel is 270mm, the length of the barrel is 59mm, and the workingrange is large
Improve the design of differential adjustment mechanism, which makes the adjustment simpleand fast

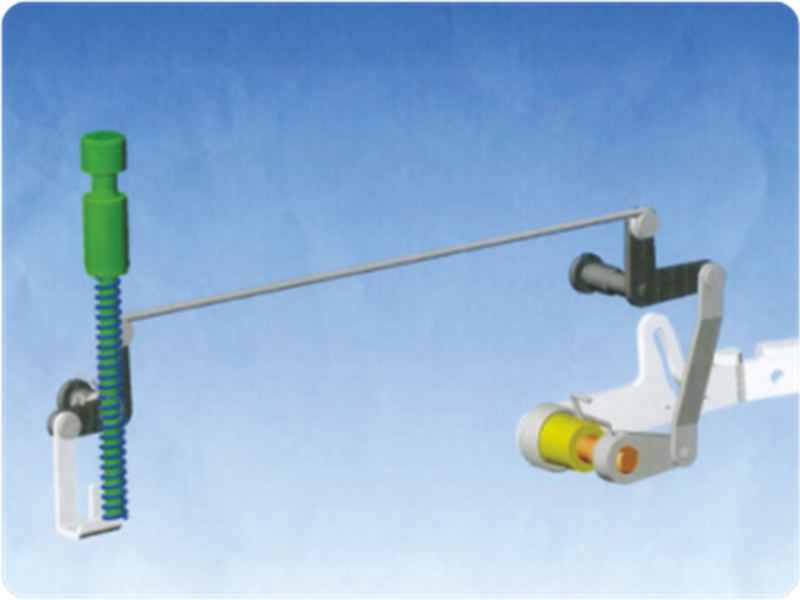

The patented presser foot lifting mechanism design makes the presser foot lifting moreportable and flexible, and the wire clamp resets stably after loosening the wire

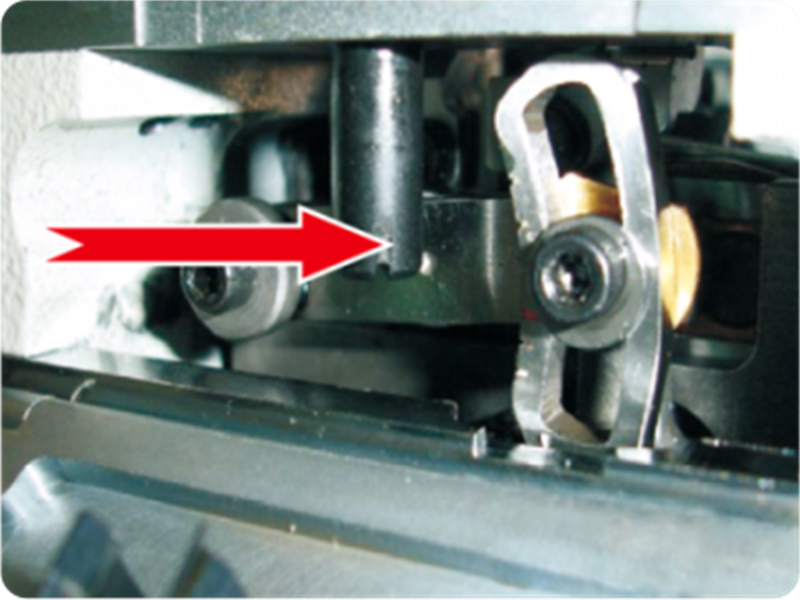

The patent mechanism shrinks the wear gap, which solves the problems of needle skipping.thread breaking and high working noise when bending the needle and hooking the thread
The threading cam is external, which is simple and easy to use
The head is forced to return oil, the bottom plate returns oil naturally, the needle bar does not leakoil, the tooth frame does not throw oil, and the finished product is free of stains
Patent foot lifter
The amount of oil on the machinecan be adjusted
Unique patented cutter design
Improve the design of differentialadjustment mechanism
| Model | ZJC2500-156M- BD- PD3C | ZJC2500-164M- BD- PD3C |
| Needle | UY128GAS11# | UY128GAS11# |
| No.of needles | 3 | 3 |
| No.of threads | 5 | 5 |
| Stitch width | 5.6 | 6.4 |
| Stitch width | 1.4-4.4 | 1.4-4.4 |
| Differential ratio | 1/0.7-1/1.7 | 1/0.7-1/1.7 |
| lternation range | 7 | 7 |
| wing speed | 5000 | 5000 |
※ For other models, please inquire about ZOJE Electronic Sample
