Less free feeding
No back seam
High precision

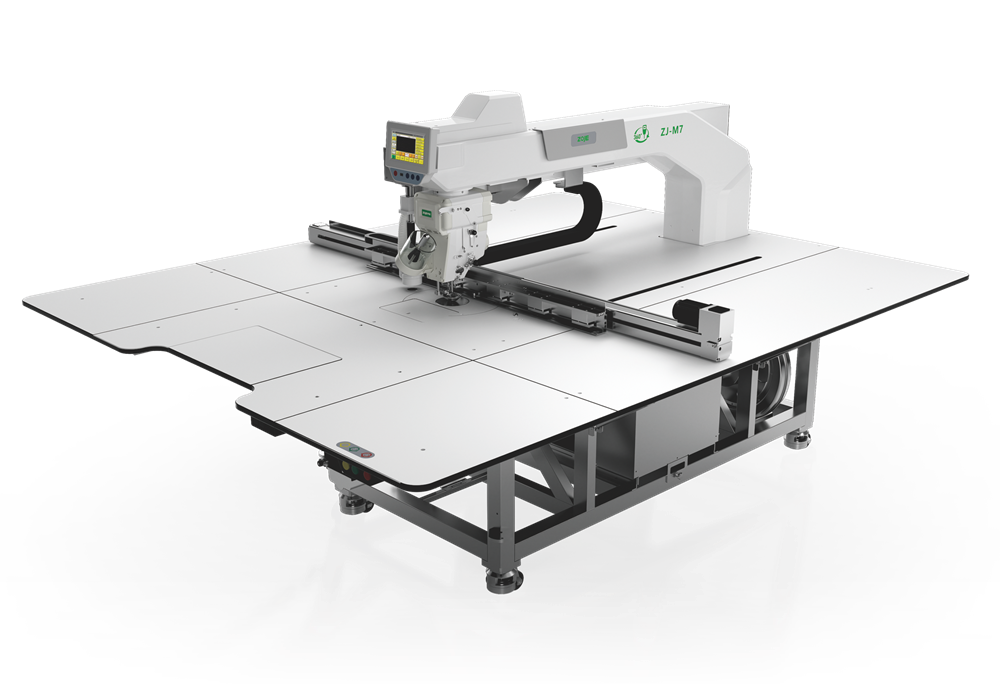

ROTATING HEAD INTELLIGENT TEMPLATE MACHINE

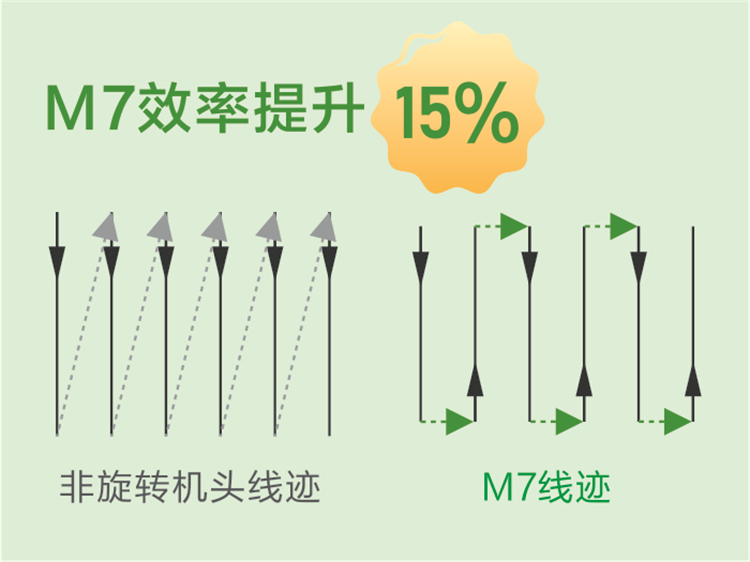

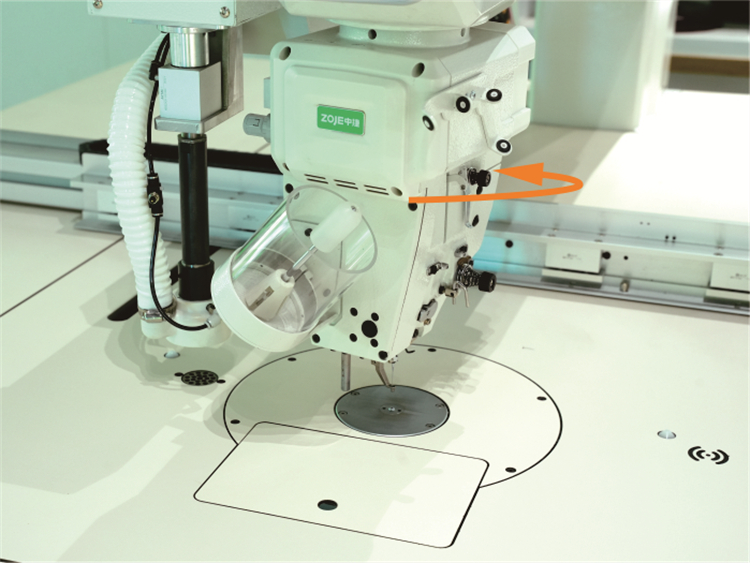

The machine head rotates 360 ° freely: no reverse sewing, perfect sewing thread marks
M7 Efficiency increased by 15%(This data is based on internal test results and is for reference only.)
Extended-Range Sewingfor Single-Pass Completion

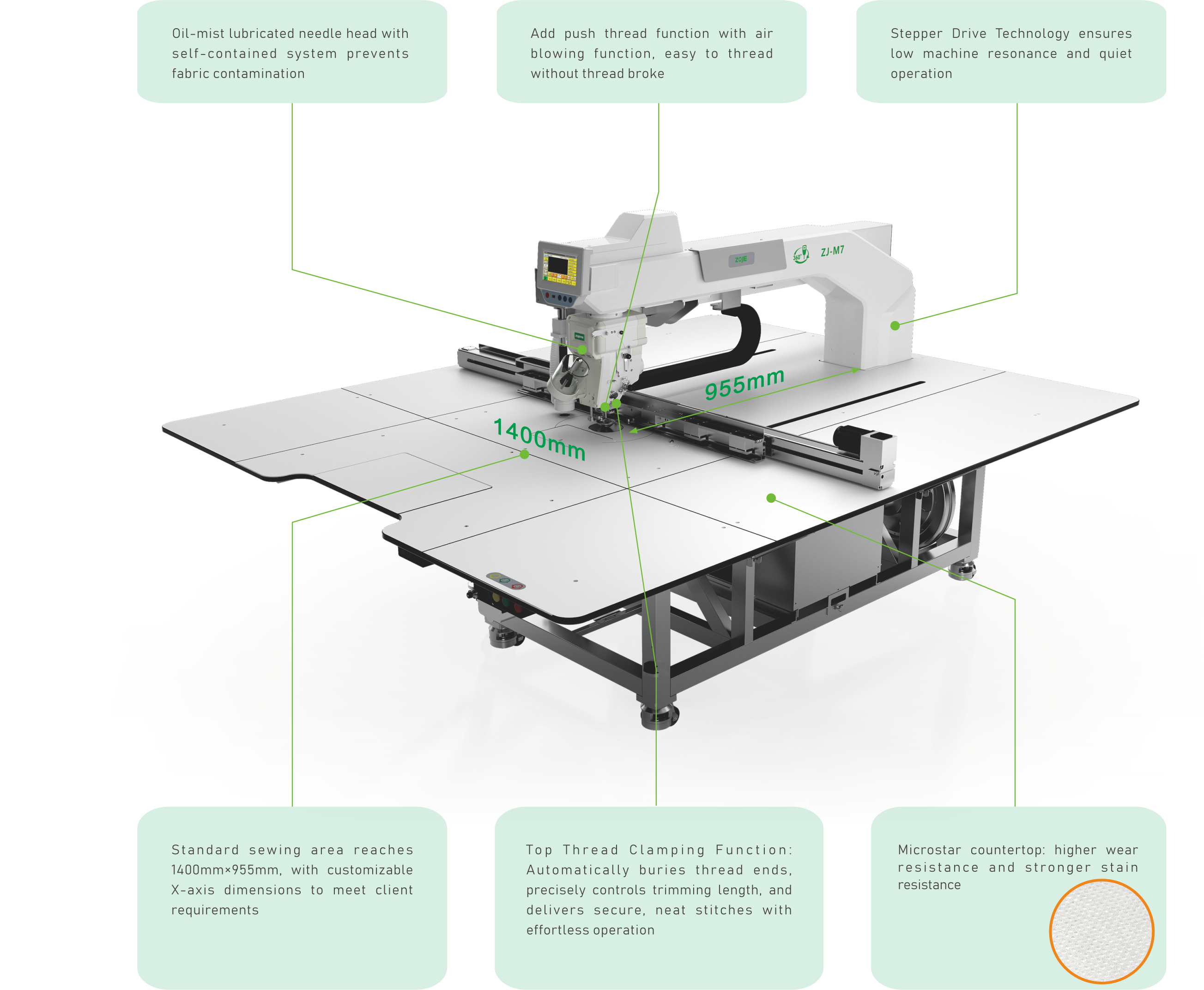

Standard sewing area reaches 1400mmx955mm, with customizable X-axisdimensions to meet client requirements

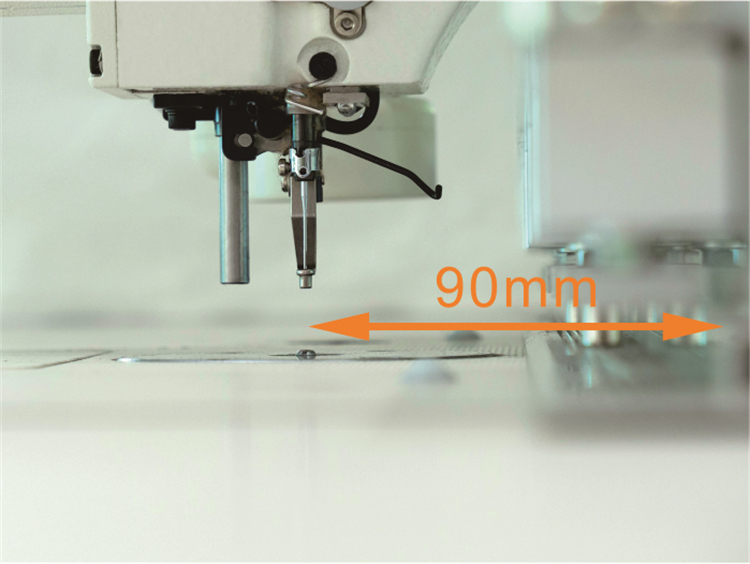

Minimal 90mm front template overhang optimizes material usage efficiency

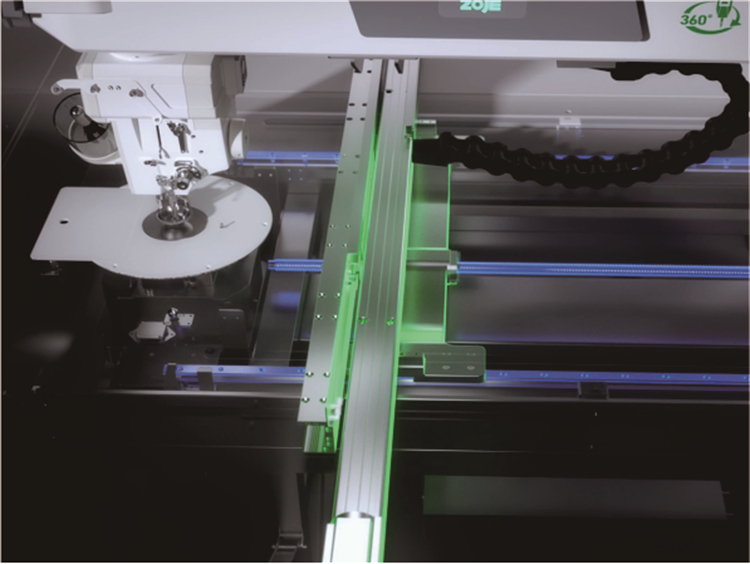

Newly Designed Feeding Mechanism with Noise & Vibration Reduction
Stepper Drive Technology ensures low machine resonance and quiet operation
Motorized Thread-Trimming Mechanism achieves silent cutting

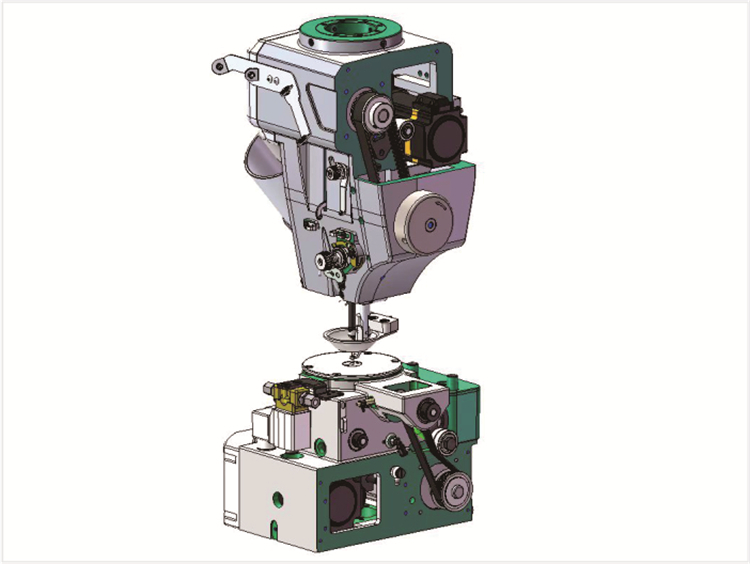

Self-Adaptive Needle-to-Plate Alignment System for Quickand Efficient Migration Installation
Newly designed self-centering upper/lower frame structure maintains concentricitywithin 0.05mm tolerance

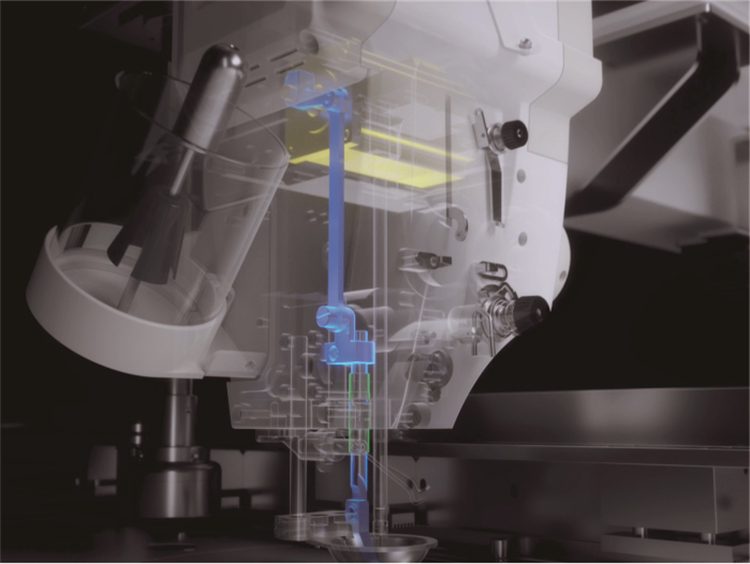

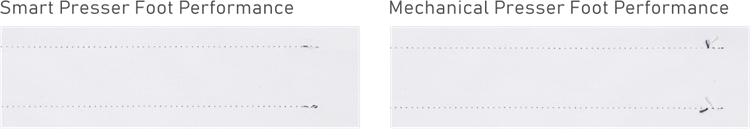

Smart Presser Foot for Multi-Fabric Adaptability
Foot height is electronically adjustable via control parameters
Smart Presser Foot prevents bird nesting at stitch start
Dual-Servo Drive Eliminates Skipped Stitches &Thread Breaks
Dual-Axis Independent Drive, Perfect Synchronization! Featuring dual 600W servomotors with millisecond smart coordination to eliminate skipped stitches and threadbreaks
Upgrade Timing belt feeding, with soft sound

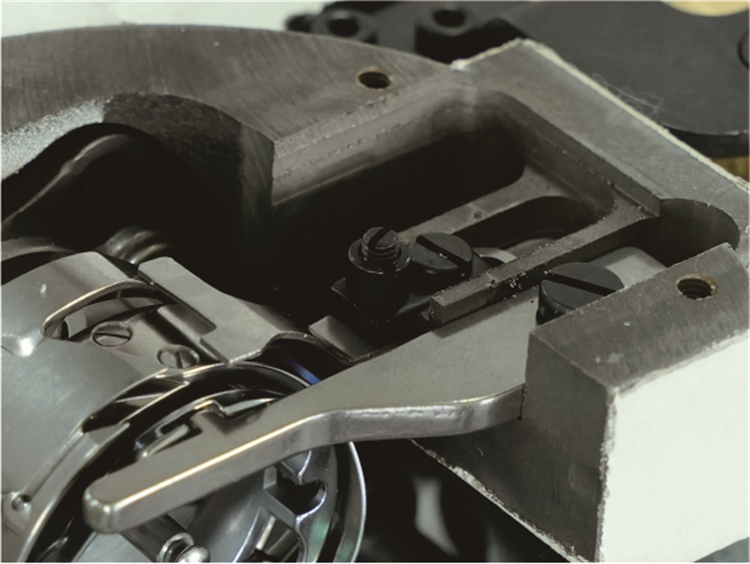

Unique front mount disconnecting mechanism, theadjustment would be more convenient and fast

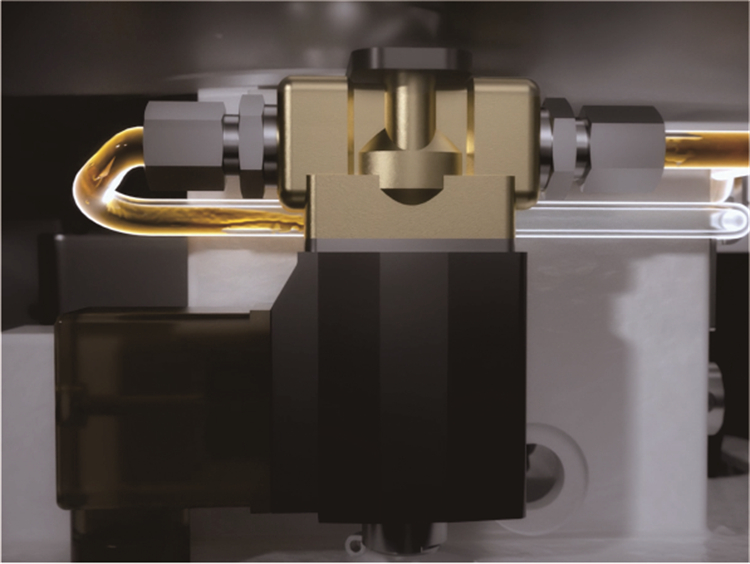

Accurately control the oil volume by the controlbox to prevent the fabric from contaminating theoil stains; to avoid unnecessary waste

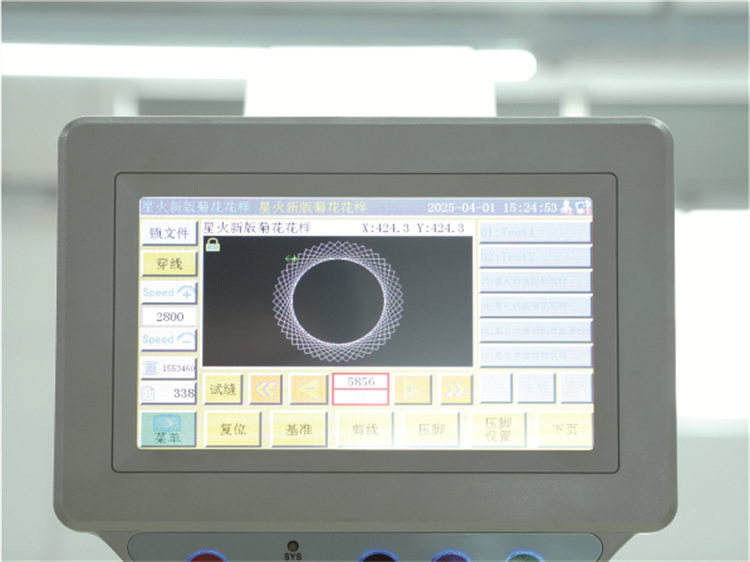

Pattern adjustment free, quick recognition andeasy operation

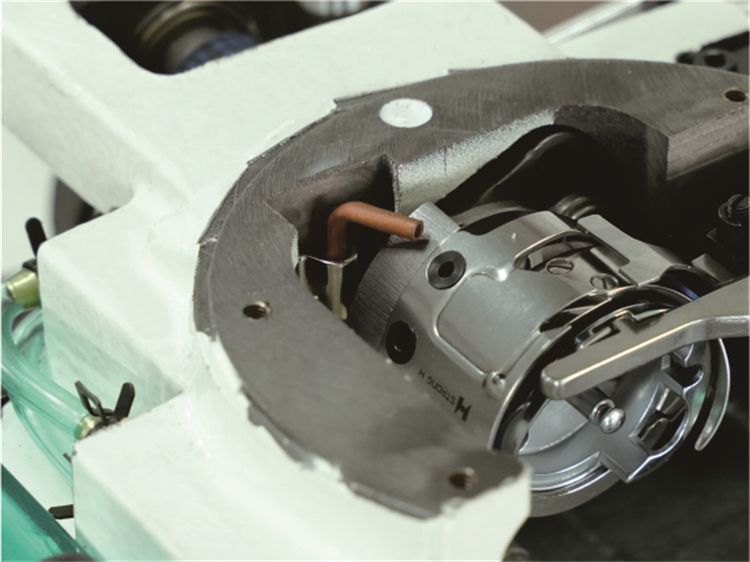

Increase the bottom line blowing structure formore stability and efficiency

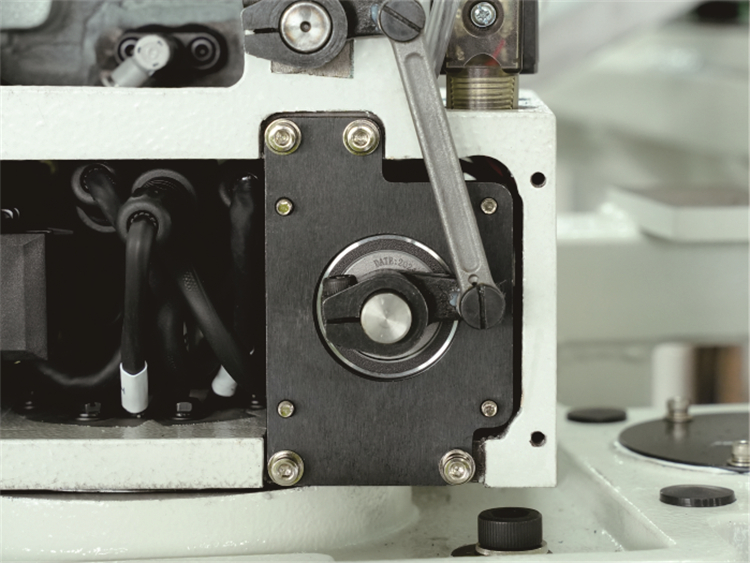

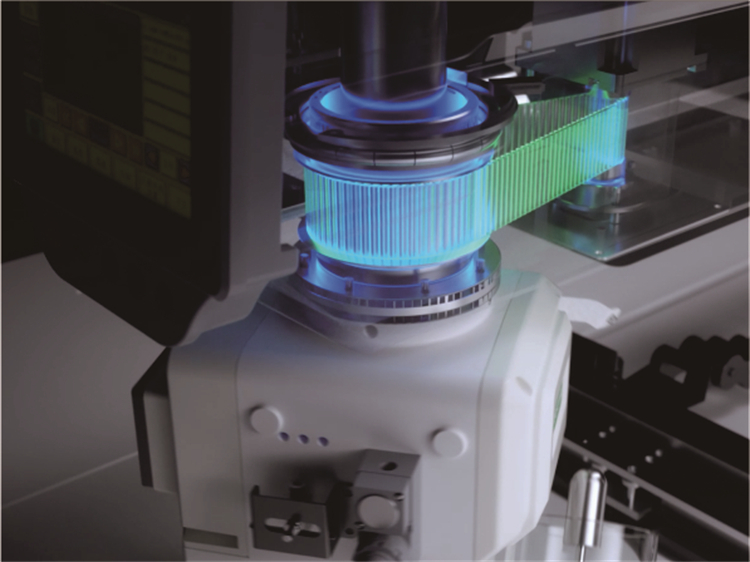

Vertical rotation utilizes synchronous belt drivewith independent stepper motor control.delivering exceptionallysmooth andagilemovement for handling intricate patterns withease

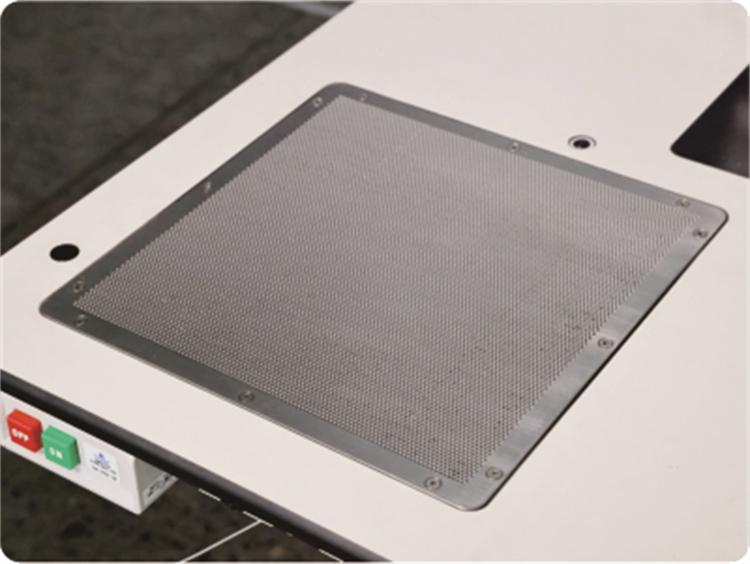

Table top suction system (optional)

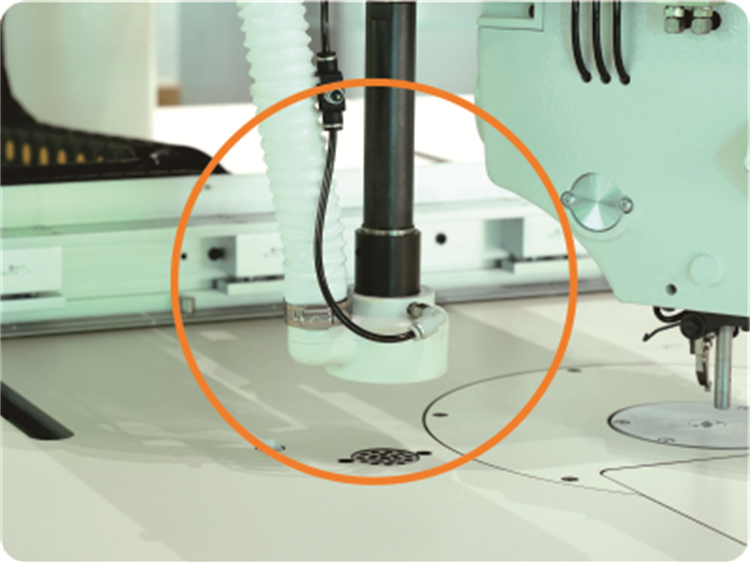

Laser cutting technology (optional)
Down Quilting Stitches
Special-Process Quilting
Decorative Quilting Lines
Quilting stitches in down jackets/padded coats (AsTM D123 textile terms,Precision stitching on fashionwer/casual suits l1s0 4915 sewing standards) Heav-dutyseams for home textiles/footwear/bags (ls0 19958 leather terms),Laser-cut edges and pocket slitting (lEc 60825 laser safety)
| Model | ZJ-M7-S955H-SF-V3 | ZJ-M7-S955H-SF-LK2-V3 |
| Needle | DPX5 7~14# | DPX5 7~14# |
| Sewing speed | 3200rpm(Needle gauge within 3.5mm) | 3200rpm(Needle gauge within 3.5mm) |
| Sewing area | 1400x955mm | 1400x955mm |
| Stitch length | 0.05~12.7mm(0.05mm Unit) | 0.05~12.7mm(0.05mm Unit) |
| Medium pressure foot stroke | Standard 3mm | Standard 3mm |
| Pattern Storage | Maximum 999 patterns(maximum50000 needles for one pattern) | Maximum 999 patterns(maximum50000 needles for one pattern) |
| Identification of the template | Automatically identify 999 kinds of templates | Automatically identify 999 kinds of templates |
| File format | Support format files, such as dxf/.plt etc | Support format files, such as dxf/.plt etc |
| Input voltage | 220V+ 44V | 220V+ 44V |
| Output power | 600W | 600W |
※ For other models, please inquire about ZOJE Electronic Sample
Download user manual
