Less free feeding
No back seam
High precision

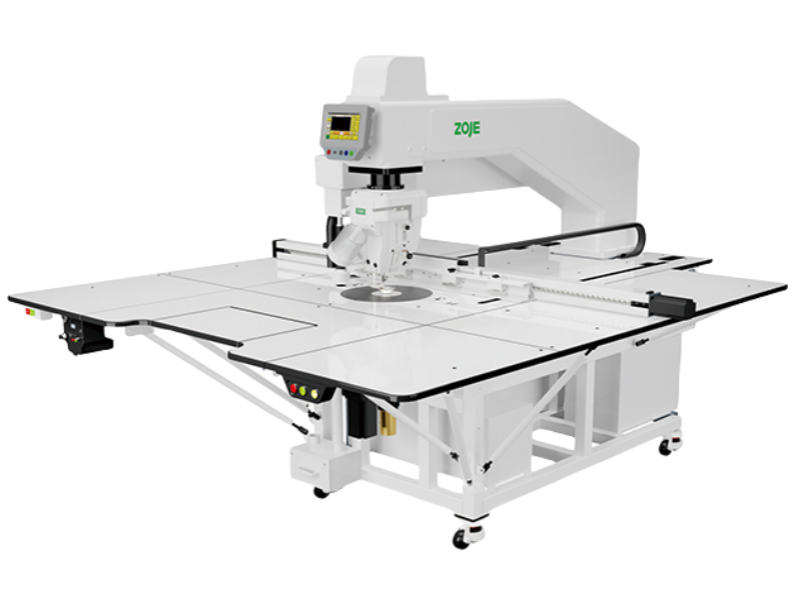

ROTATING HEAD INTELLIGENT TEMPLATE MACHINÈ
The machine head rotates 360 ° freely: no reverse sewing, perfect sewing thread marks
Feeding three screw structure: high precision, strong rigidity, and precise sewing
Intelligent mechanical presser foot: easy to handle various sewing materials
Step motor thread cutting: Low noise control accuracy, and the length of threadcutting can be controlled through parameter settings
Adopting an electronic oil supply structure: the oil quantity of the rotary shuttle is easy to adjust, withhigh accuracy, which can better prevent excessive oil from polluting the seam material (unigue to Zoje)
Equipped with front independent installation and adjustment of rotary hook positioning hook.fixed knife, and wire splitter structure: easy and fast maintenance and adjustment (unigue to Zoje）
The product has an overall casting structure of the base plate: the product has good rigidity,high stability for long-term use, and is not easily deformed
Small thread clamping function on the surface: it can achieve the function of starting and ending thread clamping, and the startingand ending thread clamping can prevent starting and burying the thread.The head and end control the length ofthe thread after cutting
Oil free needle rod: plated diamond needle rod, with longer service life
Laser cutting technology (optional): precise cutting and long service life

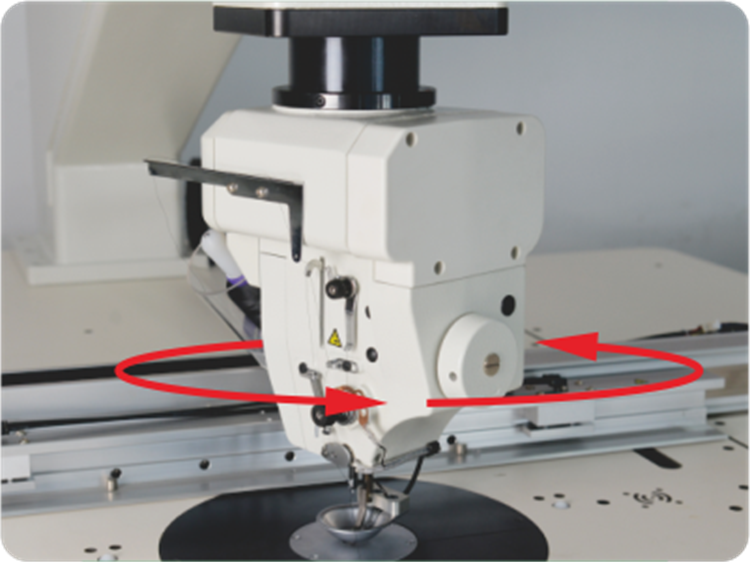

360°arbitrary rotation ofthe machine head

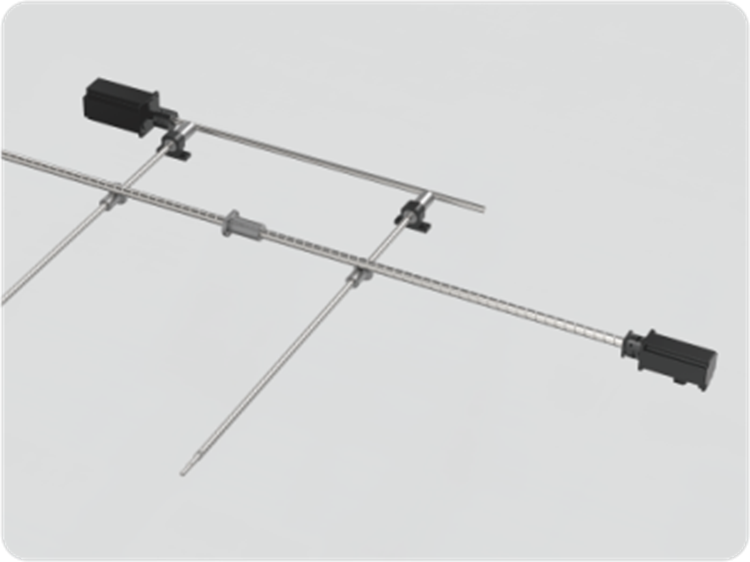

Three lead screw motor feeding

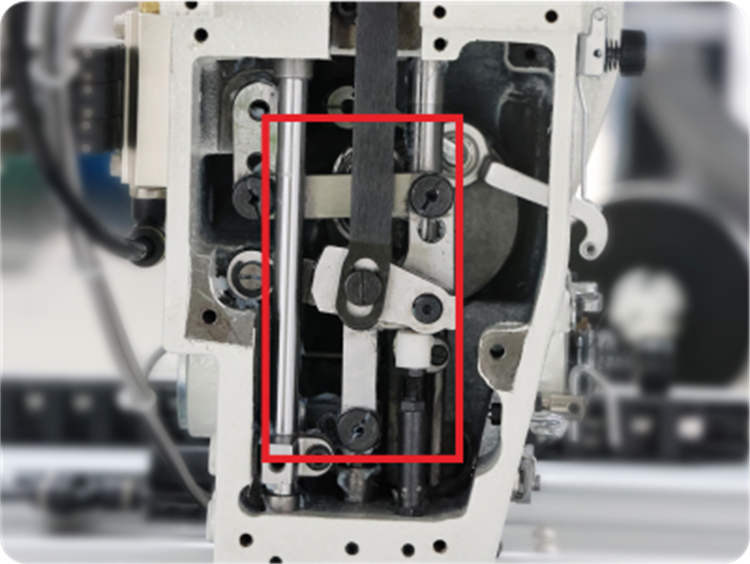

Intelligent mechanical presserfoot structure

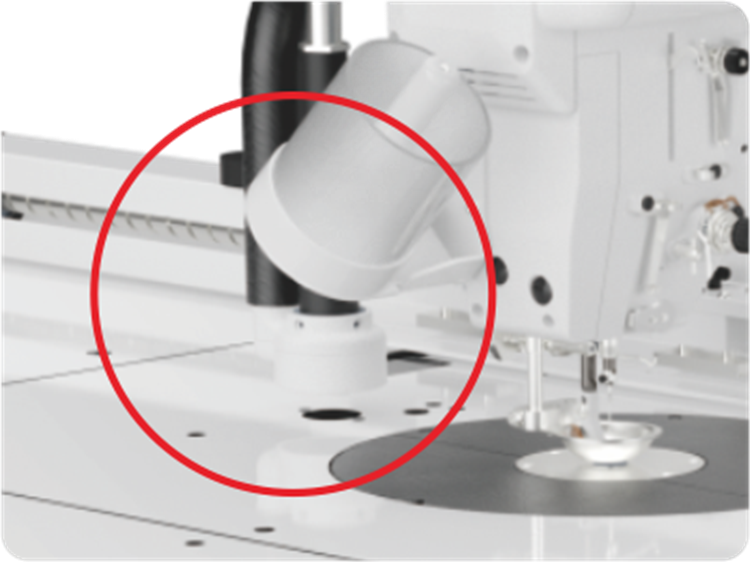

Laser cutting technology
| Model | ZJ- M7- GS900H- SF- LK2- V2 | ZJ- M7- GS900H-SF- V2 |
| Needle | DPX5 7~14# | DPX5 7~14# |
| Sewing speed | 3200rpm(Needle gauge within 3.5mm) | 3200rpm(Needle gauge within 3.5mm) |
| Sewing area | 1300x900mm | 1300x900mm |
| Stitch length | 0.05~12.7mm(0.05mm Unit) | 0.05~12.7mm(0.05mm Unit) |
| Medium pressure foot stroke | Standard 3mm | Standard 3mm |
| Pattern Storage | Maximum 999 patterns(maximum50000 needles for one pattern) | Maximum 999 patterns(maximum50000 needles for one pattern) |
| Identification of the template | Automatically identify 999 kinds of templates | Automatically identify 999 kinds of templates |
| File format | Support format files, such as dxf/.plt etc | Support format files, such as dxf/.plt etc |
| Input voltage | 220V+ 44V | 220V+ 44V |
| Output power | 600W | 600W |
※ For other models, please inquire about ZOJE Electronic Sample
Download user manual
