No drilling
No off-line
Stable performance
Accurate feeding

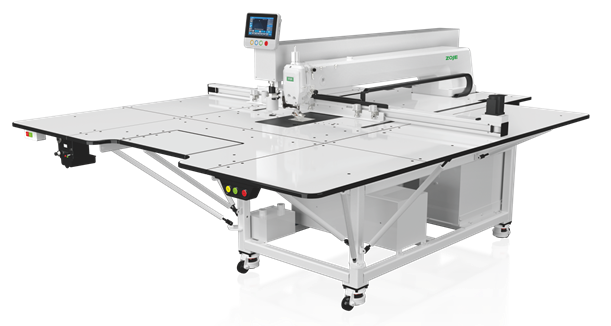

HIGH PRECISION INTELLIGENT TEMPLATE MACHINE
Double screw motor feeding for precise sewing
Intelligent medium pressure foot structure to prevent drilling and thread detachment
Adopting a motor thread cutting structure, which is more stable and convenient for debugging
The overall casting structure of the bottom plate has stronger rigidityand higher stability
Pattern adjustmentfree,quick recognition and easy operation
New laser structure (optional),efficient and precise cutting of fabric
Add push thread function with air blowing function, easy to threadwithout thread broken
Increase the bottom line blowing structure for more stability and efficiency

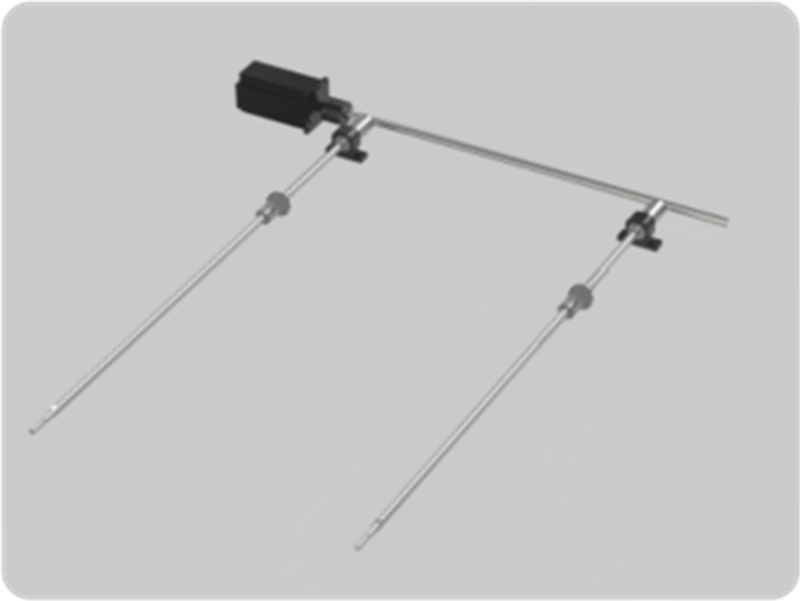

Y-direction double screw motorfeeding structure

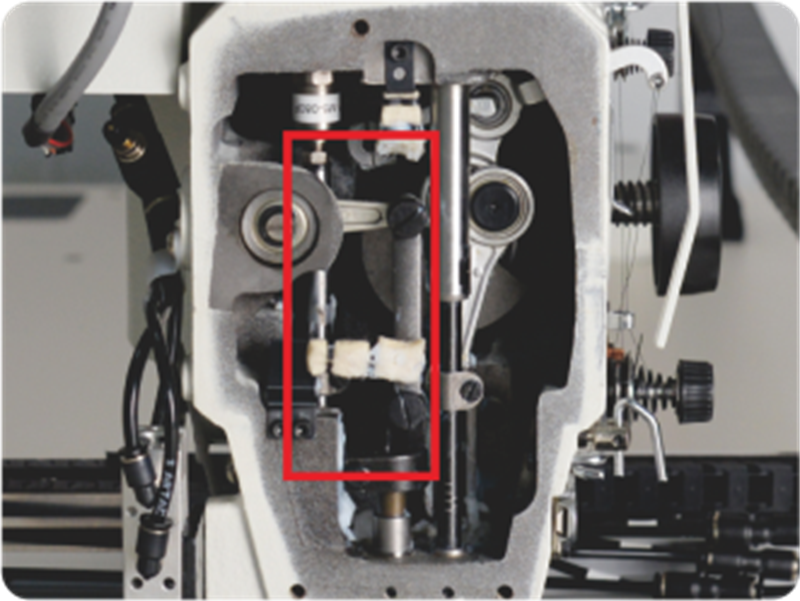

Intelligent medium pressurefoot structure

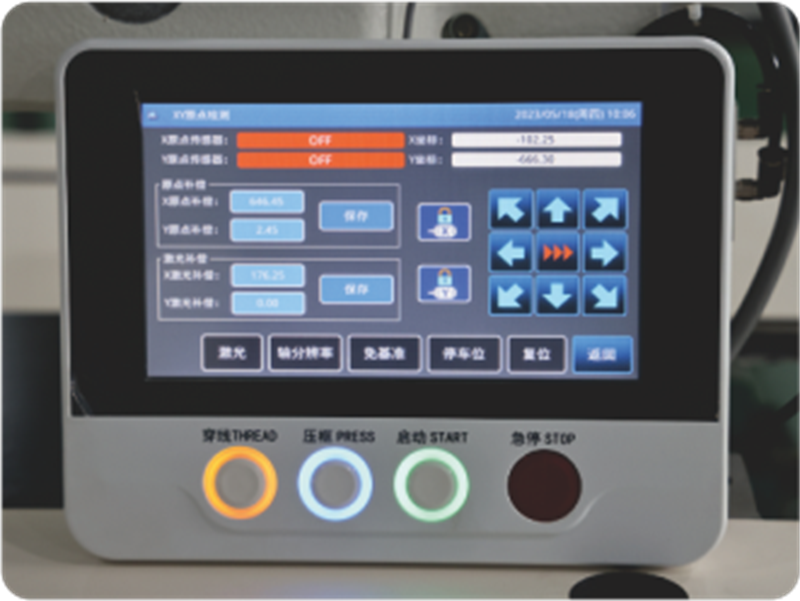

Pattern free benchmark

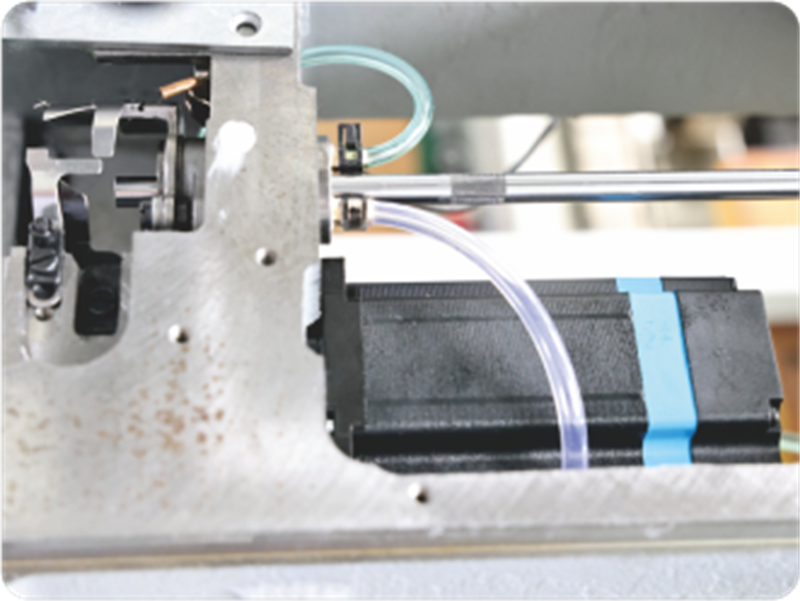

Motor wire cutting structure

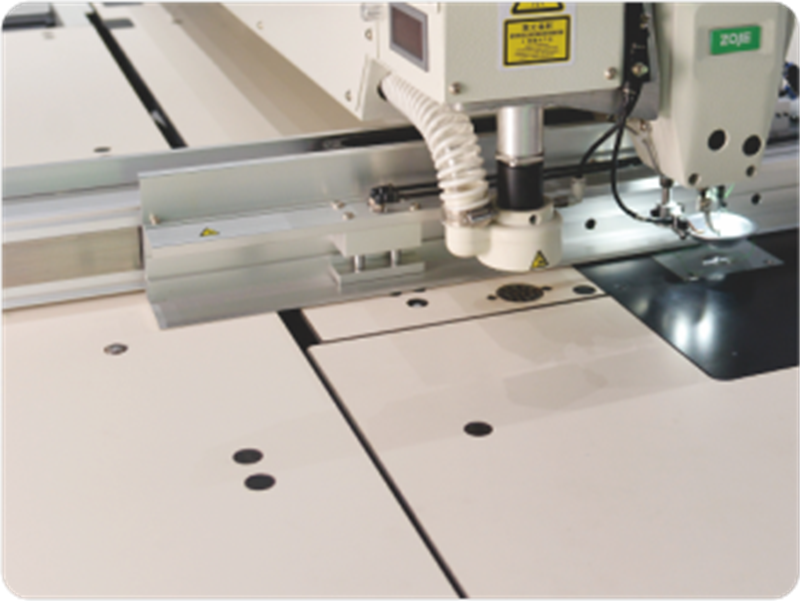

laser structure

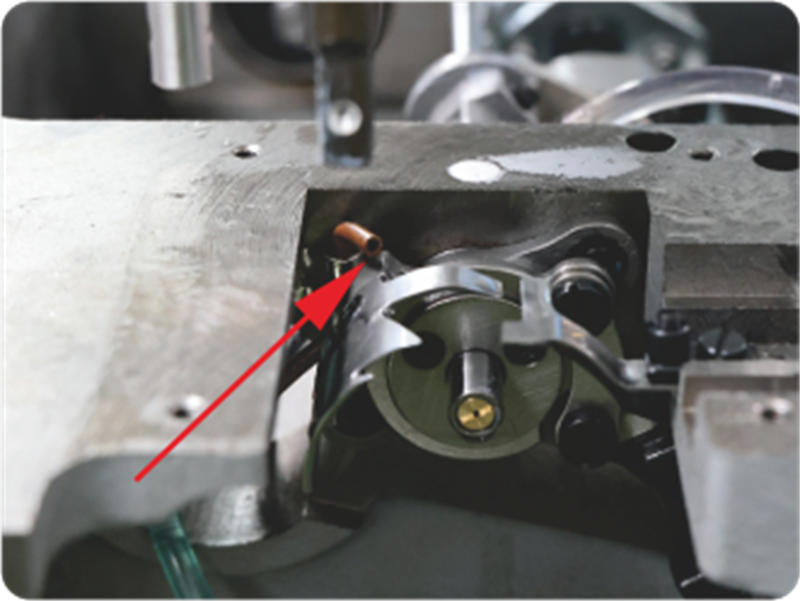

Bottom thread blowing structure
| Model | ZJ- M6- GS900H- SF- LK2- V3 | ZJ- M6- S900H- SF- LK2- V3 |
| Needle | DPX5 7~14# | DPX5 7~14# |
| Sewing speed | 3200rpm(Needle gauge within 3.5mm) | 3200rpm(Needle gauge within 3.5mm) |
| Sewing area | 1300mm X 900mm | 1300mm X 900mm |
| Stitch length | 0.05~12.7mm(0.05mm Unit) | 0.05~12.7mm(0.05mm Unit) |
| Medium pressure foot stroke | Standard 3mm | Standard 3mm |
| Pattern Storage | Maximum 999 patterns(maximum50000 needles for one pattern) | Maximum 999 patterns(maximum50000 needles for one pattern) |
| Identification of the template | Automatically identify 999 kinds of templates | Automatically identify 999 kinds of templates |
| File format | Support format files, such as dxf/.plt etc | Support format files, such as dxf/.plt etc |
| Input voltage | 220V+ 44V | 220V+ 44V |
| Output power | 750W | 750W |
※ For other models, please inquire about ZOJE Electronic Sample
Download user manual
