Automatic shuttle changing
Stable performance
Accurate feeding

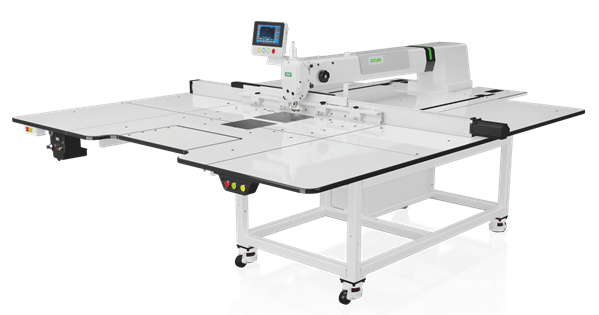

HIGH PRECISION AUTOMATIC ROTARY SHUTTLE INTELLIGENT TEMPLATE MACHINE
Feeding three screw structure: high precision, strong rigidity, and precise sewing
Intelligent medium pressure foot: anti drilling and anti detachment
Adopting an electronic oil supply structure: the oil quantity of the rotary shuttle is easy to adjust, withhigh accuracy, which can better prevent excessive oil from polluting the seam material (unigue to Zoje)
Equipped with front independent installation and adjustment of rotary hook positioning hook,fixed knife, and wire splitter structure: easy and fast maintenance and adjustment (unique to Zoje)
Smallthread clamping function on the surface: it can achieve the function of starting and ending thread clamping, and the startingand ending thread clamping can prevent starting and burying the thread.The head and end controlthe length of the thread after cutting
Oil free needle rod: plated diamond needle rod, with longer service life
Automatic shuttle changing technology (optional): 4 hours withoutthe need to replace the shuttle core

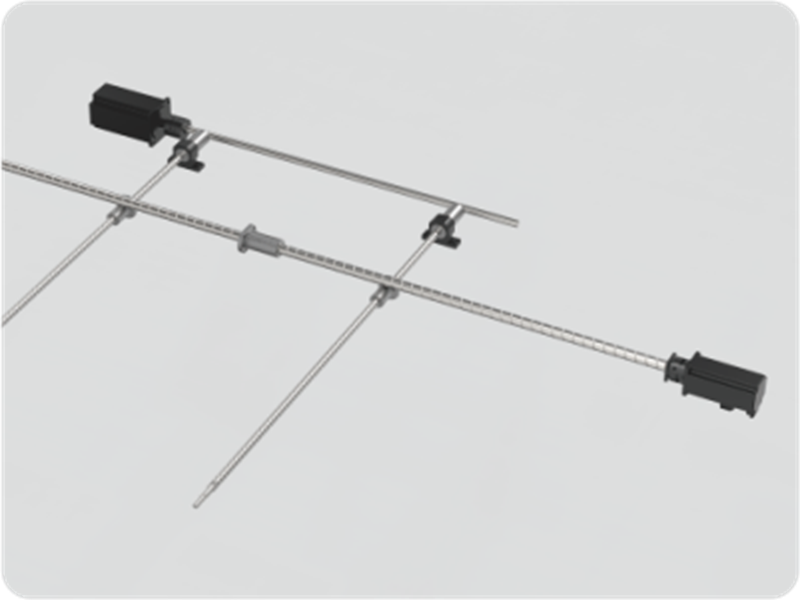

Three lead screw motor feeding

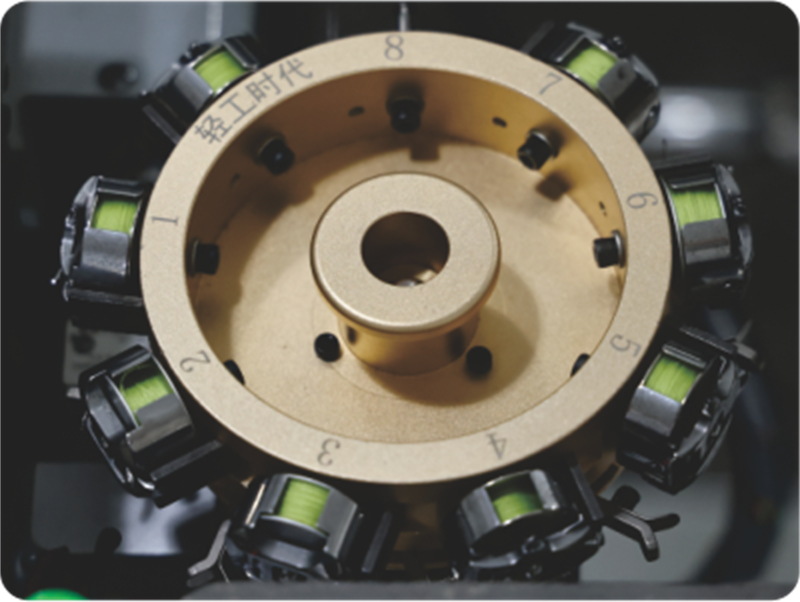

Automatic shuttle changing technology

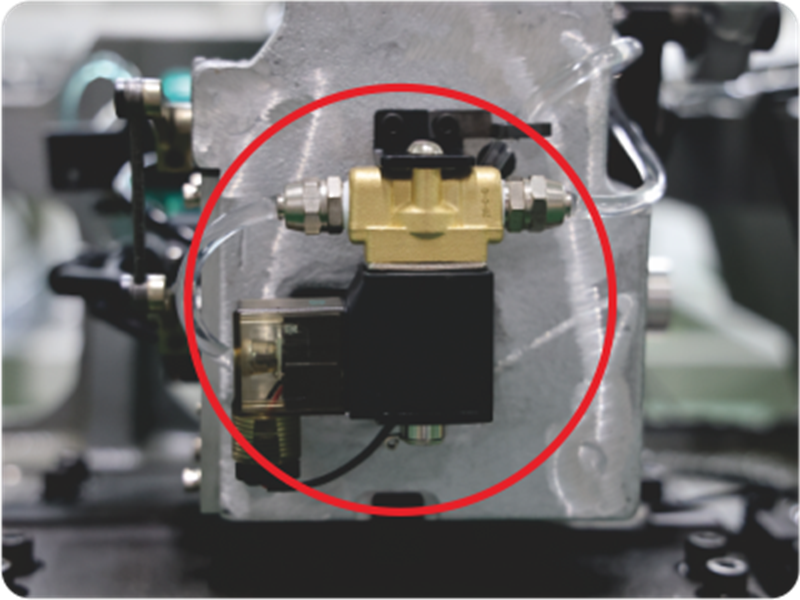

Electronic oil supply system
Intelligent middle presser foot structure
| Model | ZJ- M6- GS900- SF- B-V2 | ZJ- M6- S900- SF- B-V2 |
| Needle | DPX5 7~14# | DPX5 7~14# |
| Sewing speed | 3200rpm(Needle gauge within 3.5mm) | 3200rpm(Needle gauge within 3.5mm) |
| Sewing area | 1300mm X 900mm | 1300mm X 900mm |
| Stitch length | 0.05~12.7mm(0.05mm Unit) | 0.05~12.7mm(0.05mm Unit) |
| Medium pressure foot stroke | Standard 3mm | Standard 3mm |
| Pattern Storage | Maximum 999 patterns(maximum50000 needles for one pattern) | Maximum 999 patterns(maximum50000 needles for one pattern) |
| Identification of the template | Automatically identify 999 kinds of templates | Automatically identify 999 kinds of templates |
| File format | Support format files, such as dxf/.plt etc | Support format files, such as dxf/.plt etc |
| Input voltage | 220V+ 44V | 220V+ 44V |
| Output power | 750W | 750W |
※ For other models, please inquire about ZOJE Electronic Sample
