Continuously connecting without disconnection
Easy to install
Widely applicable

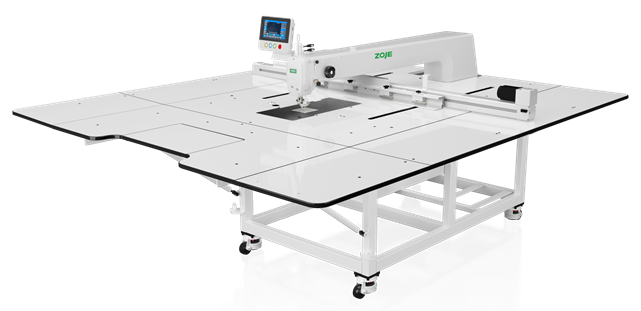

ULTRA HIGH-SPEED INTELLIGENT TEMPLATE MACHINE
Intelligent medium pressure foot structure, no disconnection during sewing
Electronic oil control,visual operation, 50% oil saving
Upgrade Timing belt feeding, with soft sound
Optimize the structure of the rotary knife thread cutting for easier debugging and lighter sound
The upgraded clamping and holding structure has wider adaptability,and the cylinder clamping force is greater
Upgrade the Microstar platform for faster and more durable installation
Add push thread function with air blowing function, easy to threadwithout thread broken
Increase the bottom line blowing structure for more stability and efficiency

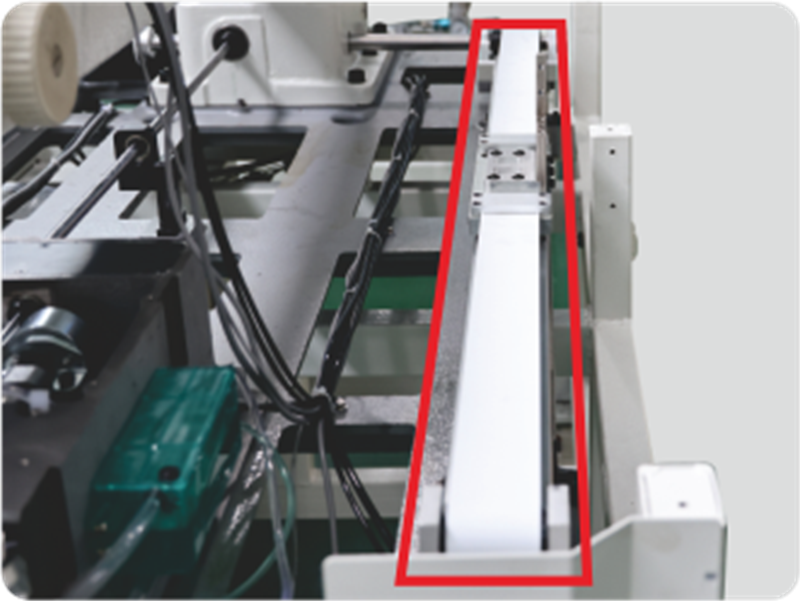

Upgrade Y direction feeding to Timingbelt

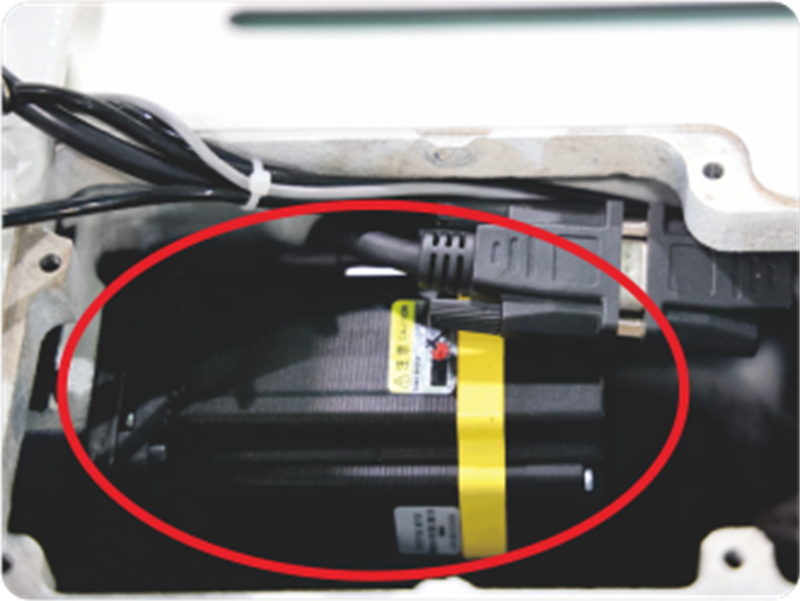

Optimize the thread cuttingstructure

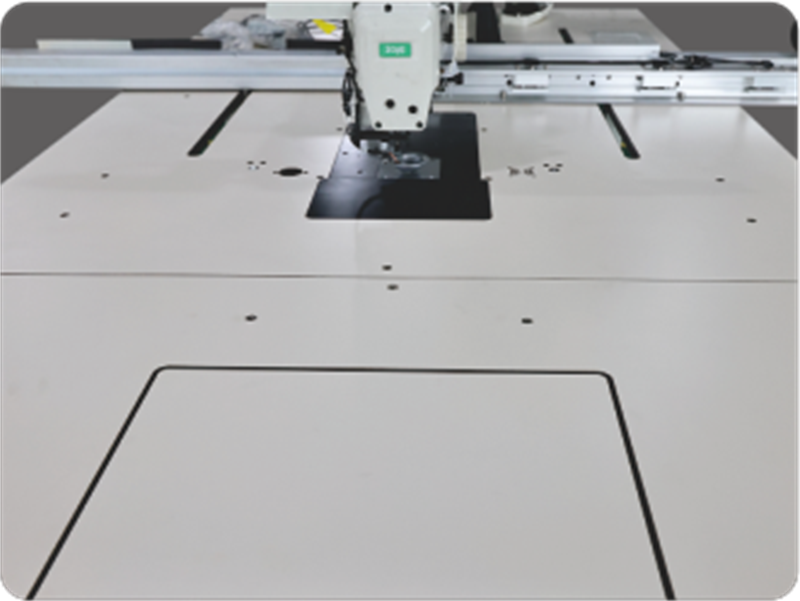

Upgrade the Microstar foldingplatform

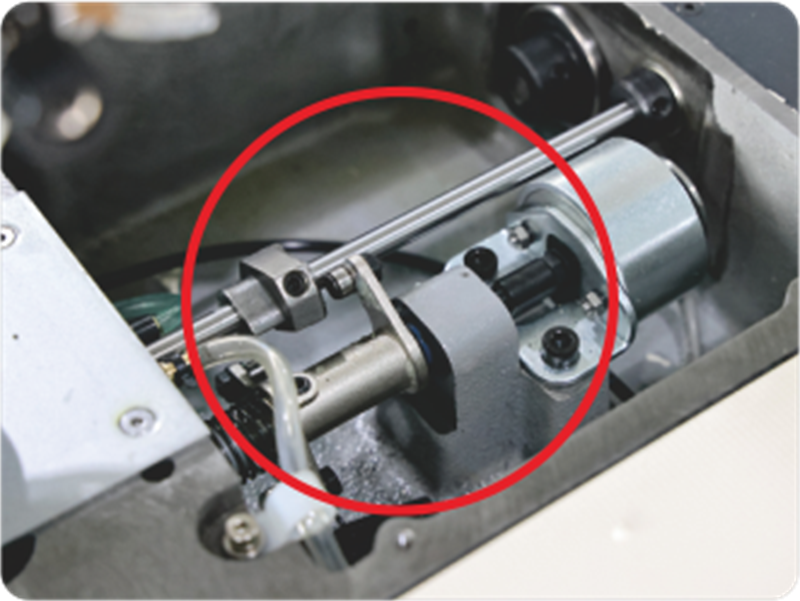

Intelligent medium pressure footmotor

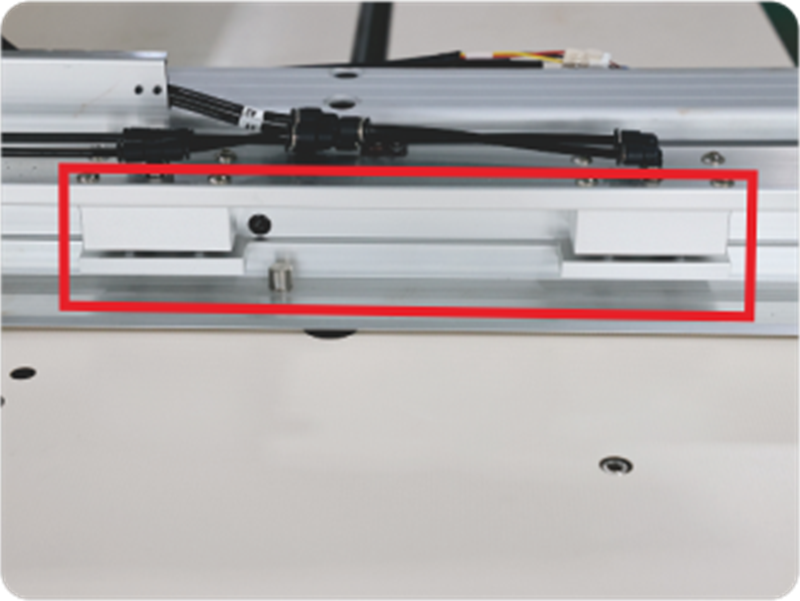

Template clamp and holderstructure upgrade

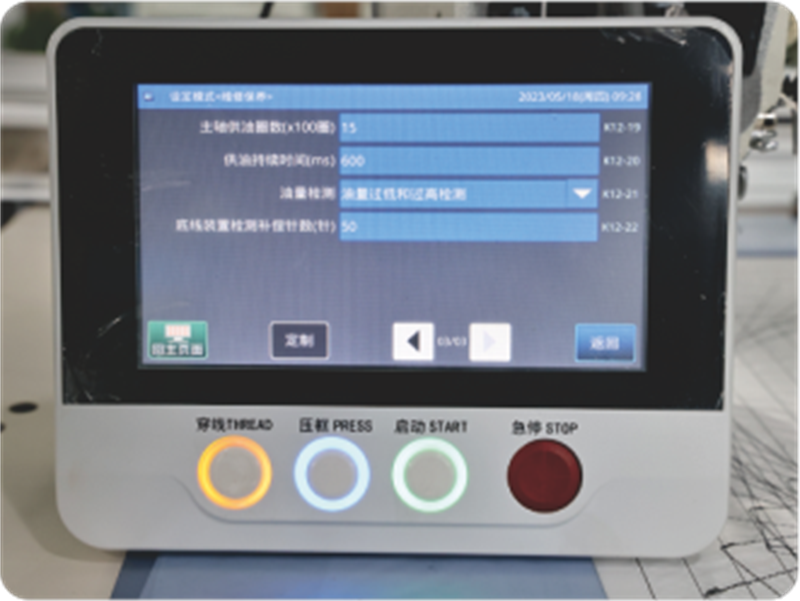

Visual oil control operationinterface
| Model | ZJ- M5- S900H- SF- V7 | ZJ- M5- S900H- SF- LK2- V7 |
| Needle | DPX5 7~14# | DPX5 7~14# |
| Sewing speed | 3200rpm(Needle gauge within 3.5mm) | 3200rpm(Needle gauge within 3.5mm) |
| Sewing area | 1300mm X 900mm | 1300mm X 900mm |
| Stitch length | 0.05~12.7mm(0.05mm Unit) | 0.05~12.7mm(0.05mm Unit) |
| Medium pressure foot stroke | Standard 3mm | Standard 3mm |
| Pattern Storage | Maximum 999 patterns(maximum50000 needles for one pattern) | Maximum 999 patterns(maximum50000 needles for one pattern) |
| Identification of the template | Automatically identify 999 kinds of templates | Automatically identify 999 kinds of templates |
| File format | Support format files, such as dxf/.plt etc | Support format files, such as dxf/.plt etc |
| Input voltage | 220V+ 44V | 220V+ 44V |
| Output power | 750W | 750W |
※ For other models, please inquire about ZOJE Electronic Sample
Download user manual
