ZJ5781D

ZJ5781D

High precision

Good stitching

Quiet operation

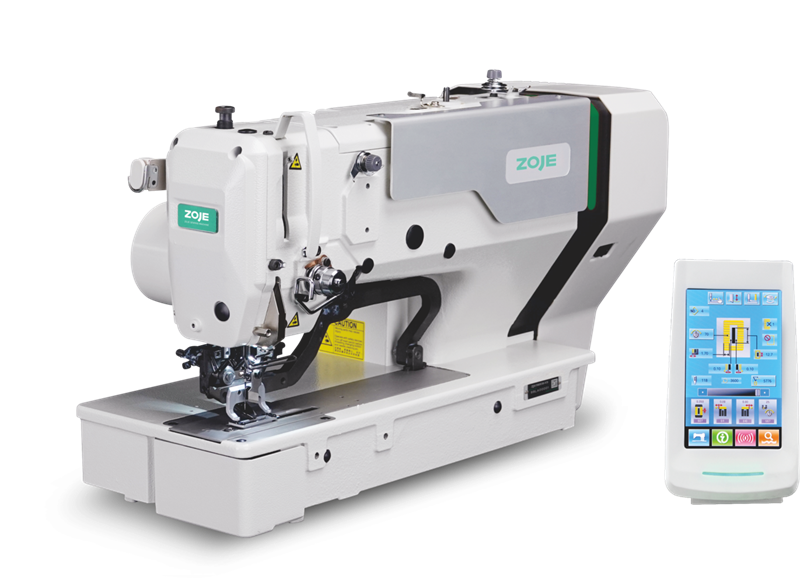

INTELLIGENT LOCKSTITCH BUTTONHOLING MACHINE

Core Technology

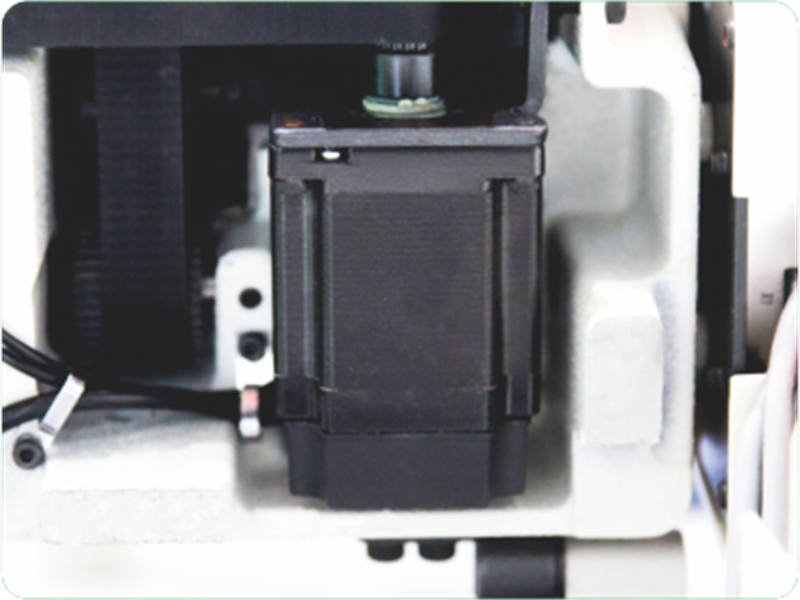

Closedloop motor,higher sewing accuracy

he pendulum pin and feeding are driven by step closed-loop motor, with high precision and stablestitch

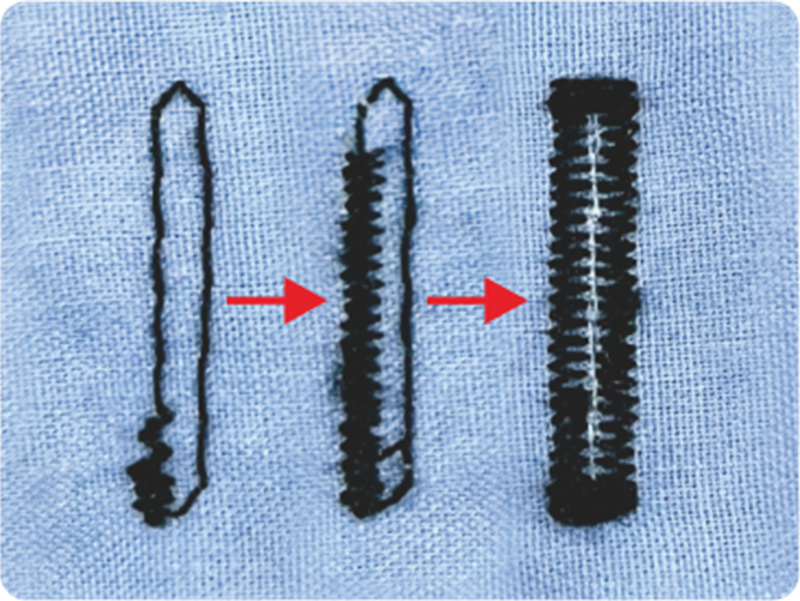

Bottom seam process,beautiful stitching

With the function of backing sewing, it is especially suitable for sewing elastic fabrics, withbeautifulstitches and no deformation

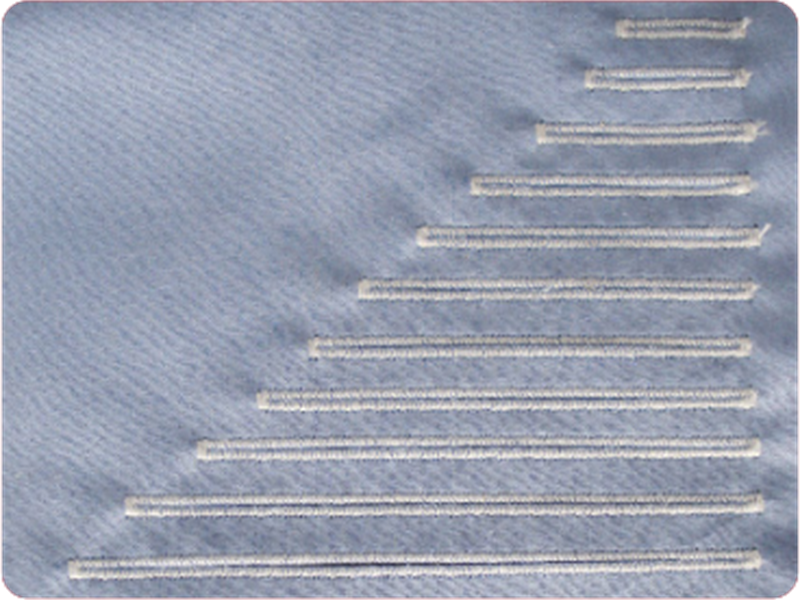

Multi Size buttonholes,no need to change the knife

The sewing of large-size buttonholes can be realized by repeatedly dropping the cutter withoutchanging the cutter


There is no oil at the head, and the oil box is sealed

The machine head adopts advanced oil-free technology, and is equipped with environmentalprotection lubrication, sealing oil box, which does not pollute sewn products, and the oil pan isclean,tidy and more durable

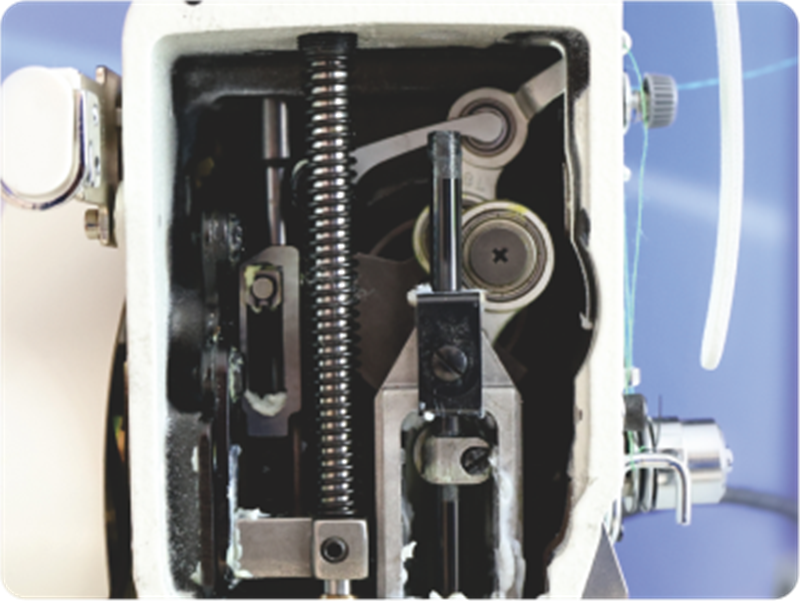

Pendulum structure makes the sound lighter

The electronic wire clamping mechanism with new pendulum frame structure and adiustabletersion makes the sound of the whole machine lighter


Product Features


Closed loop motor, higher sewingaccuracy



Bottom seam process, beautifulstitching



Multi Size buttonholes, no need tochange the knife



There is no oil at the head, and the qilbox is sealed

Technical Parameter
ModelZJ5781DS-V3
NeedleDB×5(11#)11#-14#
Sewing speed4200rpm
Stitch length(Max)40mm
Alternation  range0-17mm
Cutter size6.4~31.8mm(1/4"~11/4")
Memorable dataMaximum 99 patterns
Sewing range5×40mm
Needle bar stroke34.6mm
Auto presser foot needle pendulum feeding fabric drive wayStepper motor drive
Power/consumptionSingle-phase AC220V-240V/600VA
Sewing materialsCotton buttons for shirts, overalls

※ For other models, please inquire about ZOJE Electronic Sample
