ZJ9610SA/ZJ9620SA
Beautiful stitching
Lower noise
Energy-efficient performance

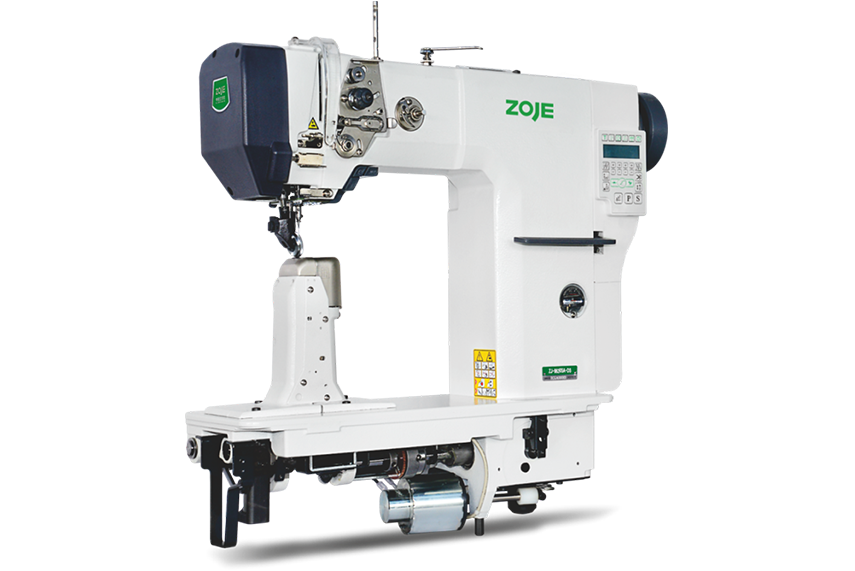

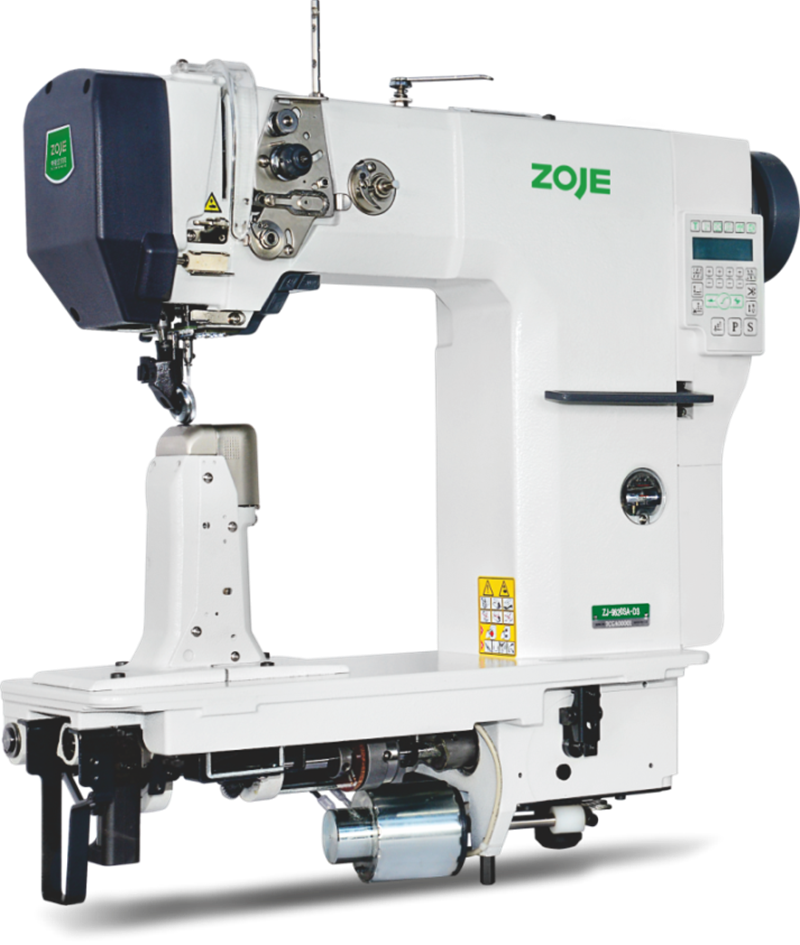

INTELLIGENT POST-BED SEWING MACHINF
Core Technology
Adopts column type bottom plate
Direct drive mode
Nicer stitch, lower noise, energy saving, high efficiency
Intelligent and efficient operation panel
Auto thread trimming to save thread, more environmental protection
Precise electromagnet control , safe and reliable clutch structure
Product Features
single needle
double needle
Advanced stitch length adjust device

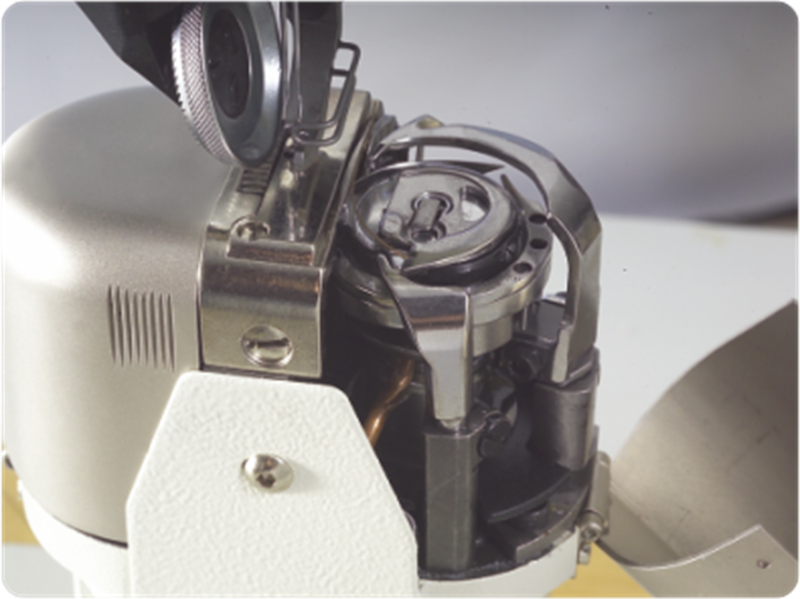

New thread cutter
Extensive adaptability
Technical Parameter
| Model | ZJ9610SA-D3 | ZJ9620SA-D3 | ZJ9610D-D3 |
| Specification | Single Needle Series | Double Needle Series | Single Needle Series |
| Needle | DP×17 14#-21# | DP×17 14#-21# | DP×17 14#-21# |
| Stitch length | 0~4.5mm/0~7.0mm | 0~4mm | 0~4.5mm/0~7.0mm |
| Presser foot lifte | Manual lift 7mm/Auto8-11mm | Manual lift 7mm/Auto8-11mm | Manual lift 7mm/Auto8-11mm |
| Auto thread trimmer | Yes | Yes | Yes |
| Sewing speed | 3000 RPM | 2000 RPM | 3000 RPM |
| Sewing the material type | Medium materials/Heavy materials | Medium materials/Heavy materials | Medium materials/Heavy materials |
| Auto back stitch | Yes | Yes | Yes |
| Drive Mode | Magnet mode | Magnet mode | Magnet mode |
| Oil filler Mode | Auto oil supply(Hook) | Auto oil supply(Hook) | Auto oil supply(Hook) |
| Working voltage | 220V | 220V | 220V |
| Rated Power | 750W | 750W | 750W |
※ For other models, please inquire about ZOJE Electronic Sample
