Through shaft transmission,stable, liaht and light torque:750W throuah shaft motordesian greatly reduces the torgue of the whole machine, and the sewing is stable, lightand low noise.

Silent backstitching and pattern editing:The stepping motor replaces the reverse sewingelectromagnet structure.Realize silent reverse sewing, and realize the function ofprogrammable needle distance by controlling the swing angle of the motor.

Adjustable presser foot height:The stepping motor controls the presser foot liftingstructure. The presser foot lifting height can be adjusted according to customerrequirements.Lift the presser foot gently.

Connecting rod bearing design, wear resistance and noise reduction:The connecting rodadopts a needle bearing design, which is wear-resistant and noise reduction, reduces oilcontamination, effectively reduces the front and rear clearance of the presser foot, andimproves the sewing performance.

Structural design of self lubricating eccentric:The inner hole of the connectingrod of the presser foot lifting eccentric adopts Teflon technology, which iswear-resistant and noise reduction, and has a longer service life.

Seal design of lifting shaft:The sealing design of the presser foot lifting shaft eliminatesthe trouble of oil contamination, greatly reduces the wear of parts and is more beautiful.

Fan type handwheel, good heat dissipation:Fan type handwheel is adopted, which hasbetter heat dissipation effect.

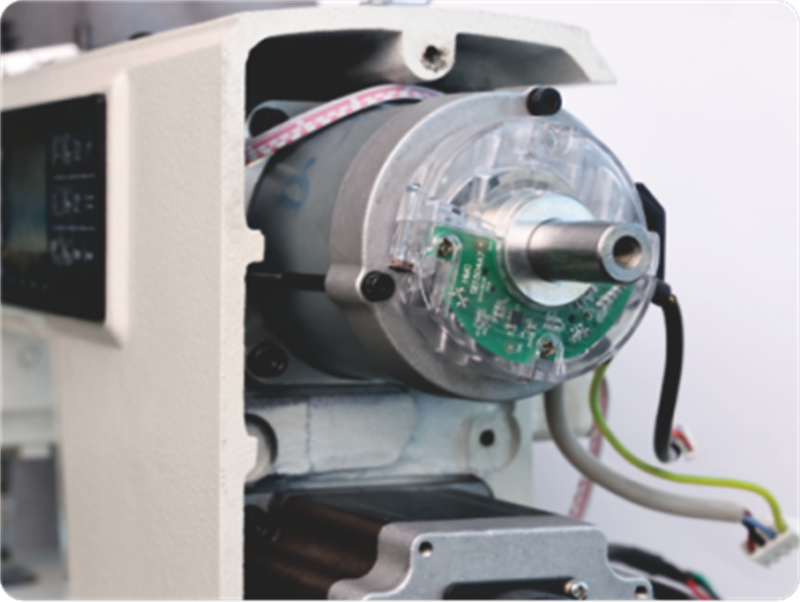

750W through shaft motor design

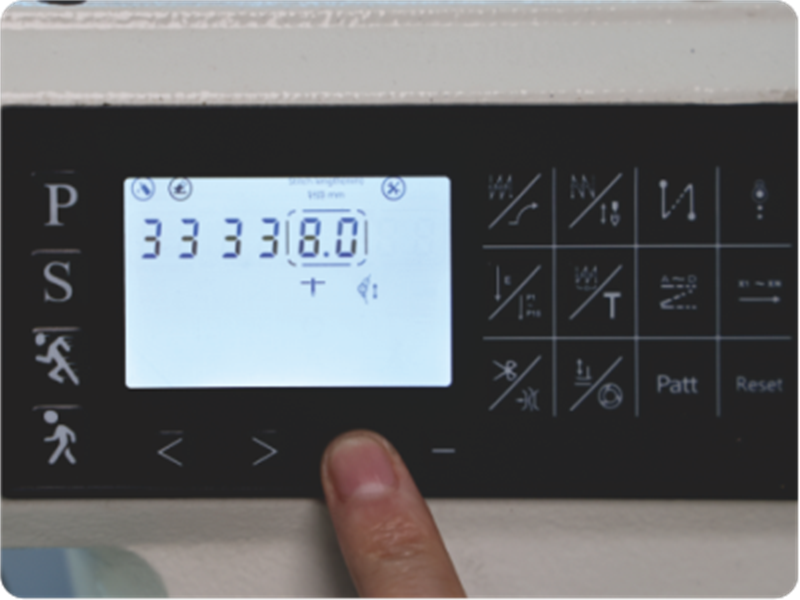

Hd LCD touch screen

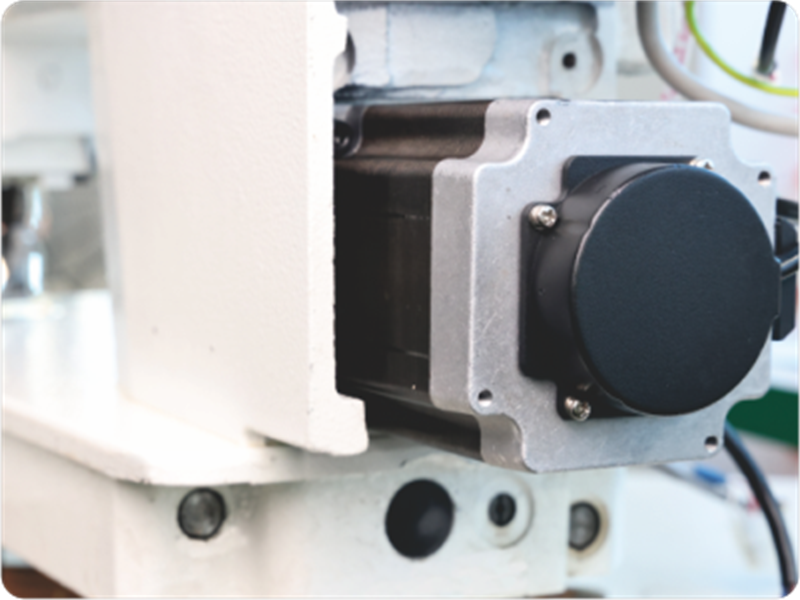

The stepping motor replaces theelectromagnet ,Silent backstitching

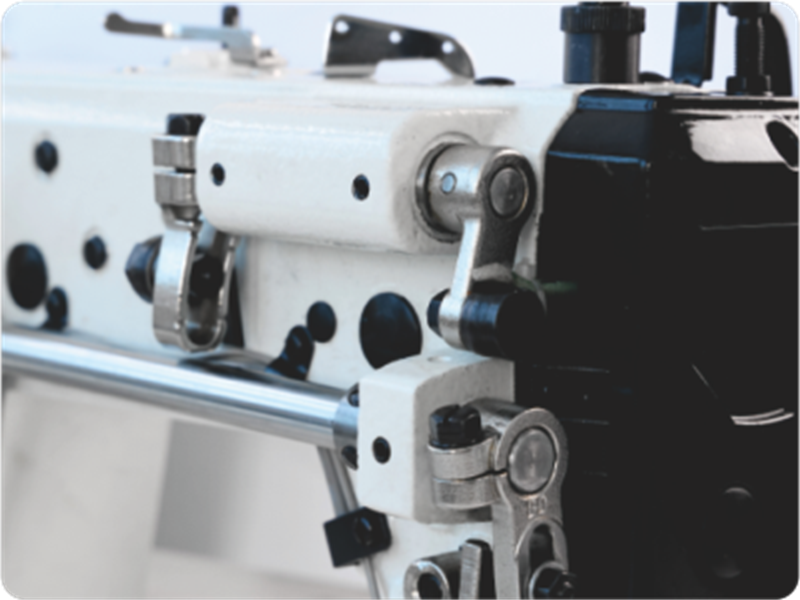

Connecting rod bearing design,wearresistance and noise reduction

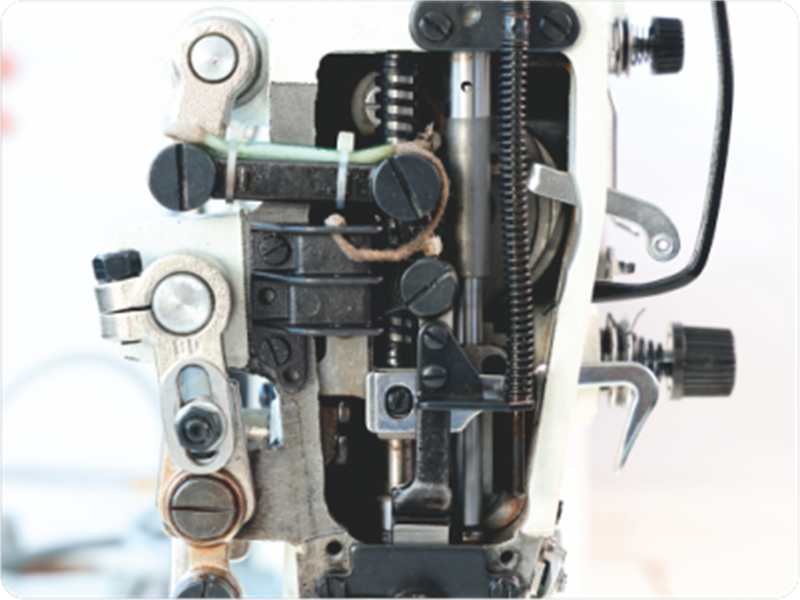

Seal design of lifting shaft

※ For other models, please inquire about ZOJE Electronic Sample
