ZJ0303E

ZJ0303E

Top and bottom compound feed

Consistent stitch length in forward and reverse stitching

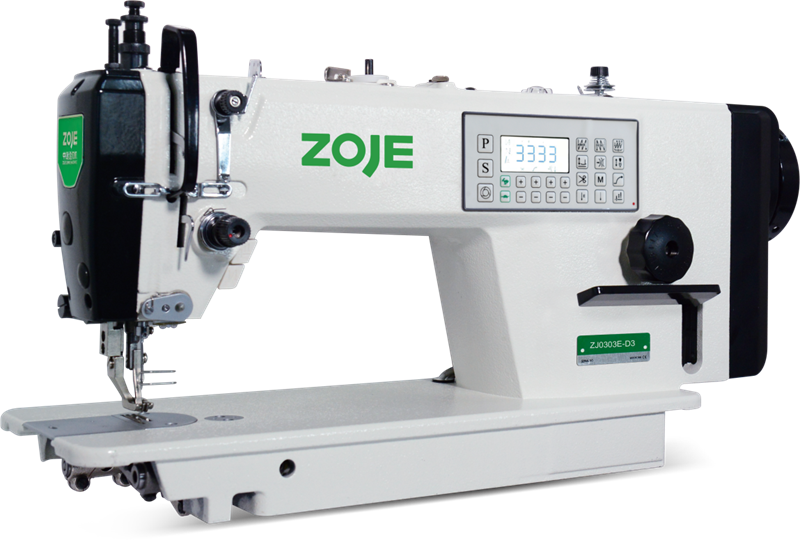

DIRECT DRIVE UP & DOWN FEED ENLARGE SPACE ALL-IN-ONELOCKSTITCH SEWING MACHINE

Core Technology

Through shaft transmission, stable, light and light torque:750w through shaftmotor design greatly reduces the torque of the whole machine, and the sewing isstable, light and low noise.


Compound feed by feed dog and presser foot


Nose needle roller bearing design,wear resistance, noise reduction


Adopt link take up, large hook catch thread


The lock device for stitch dial,ensure keep the same stitch length for reverse


Optional power distribution magnet to lift the presser foot


And forward sewingsuitable for bag,sail, baggage, leather coat, sofa etc

Product Features




Technical Parameter
ModelZJ0303E-M-D3ZJ0303E-D3ZJ0303E-CX-D3
NeedleDP×17 18#DP×17 22#DP×17 25#
Stitch length0-8mm0-8mm0-8mm
Thickness3mm5mm10mm
Alternation  range5/13mm5/13mm8/13mm
Sewing speed2200rpm2200rpm2000rpm
Rated     Power750W750W750W

※ For other models, please inquire about ZOJE Electronic Sample
