ZJ-UA-A9200L-JMX-WE5

ZJ-UA-A9200L-JMX-WE5

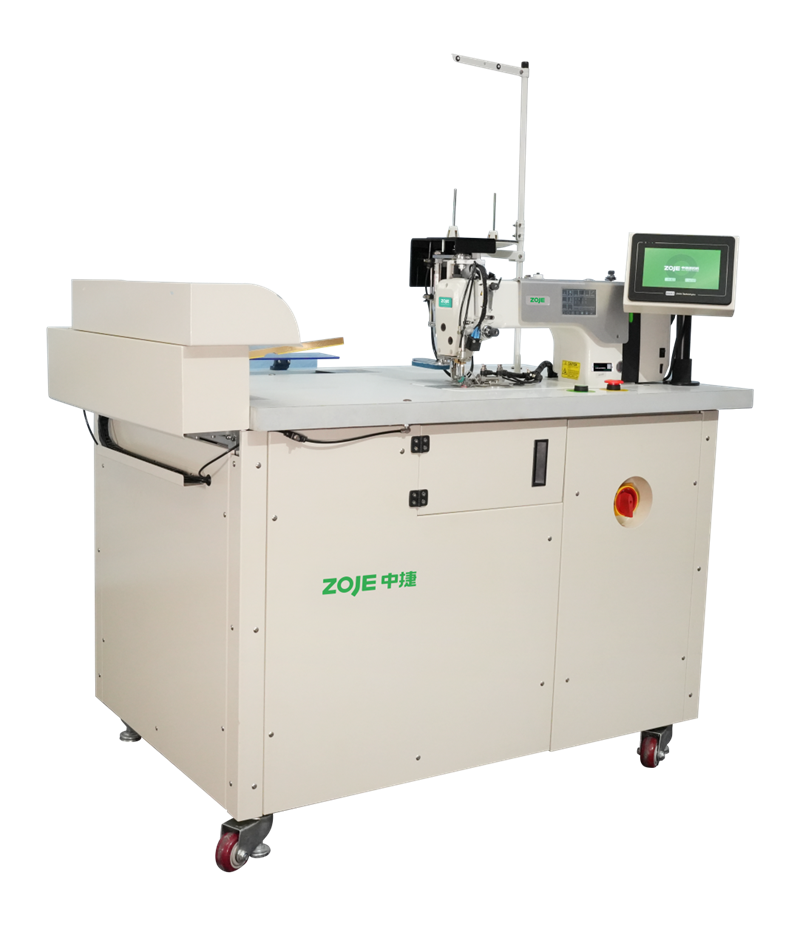

AUTOMATIC SHIRT CUFF/COLLAR TOP STITCH SEWING UNIT

Core Technology

Open thread sewing suitable for shirt collar, Xiukefu etc


Coreintelligent controlintegrated system with stableperformance


Open wire width photoelectric sensor control, width range 1-10mm


The sewing procedure can be saved for next use

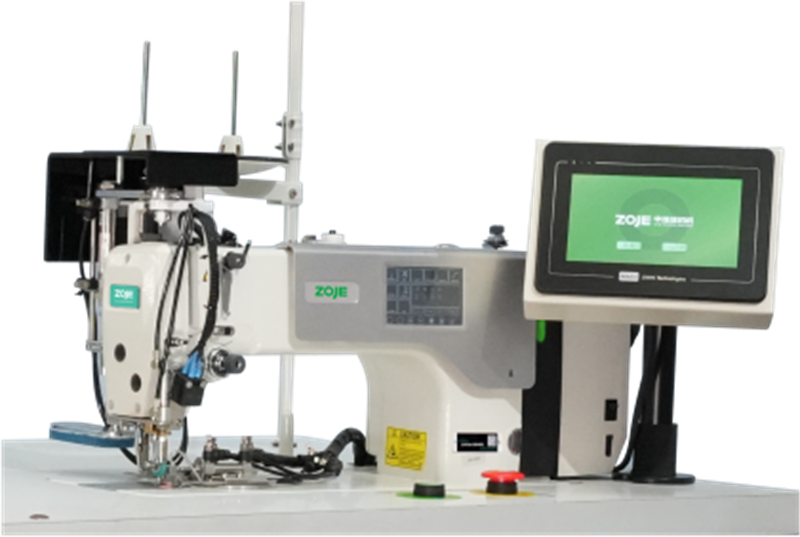

LCD touch screen.color interface


Automatic efficiency:self-sewing, automatic turning,automatic size recognition


Easy to use:Any novice needs simple training andcanimmediately operate on the job


Automatic collection function,which alows forautomatic stacking of sewn fabrics


One person can operate two machines and produce480 shirt collars per hour

Product Features


Intelligence control system

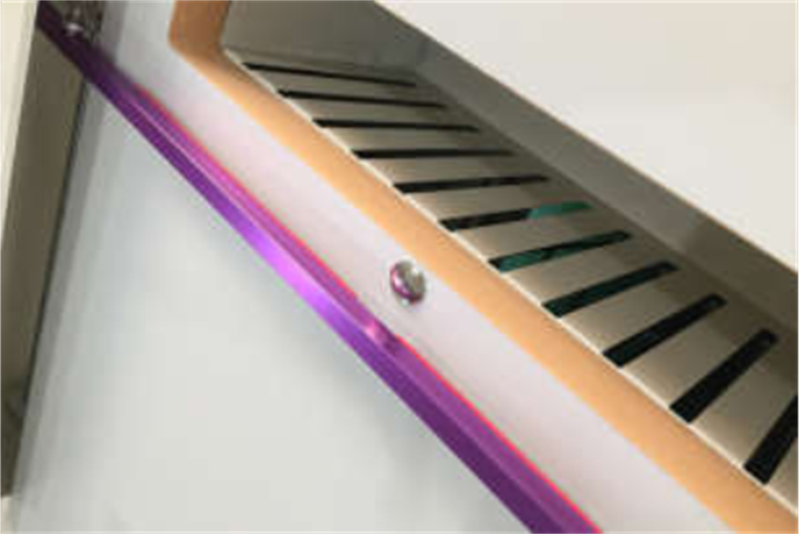

Automatic material receiving device

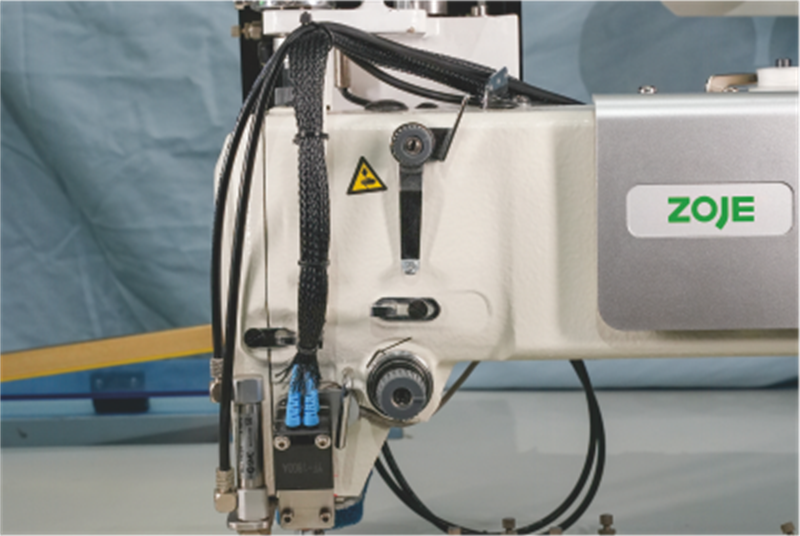

Photoelectric detection of wire breakage induction

Technical Parameter
ModelZJ-UA-A9200L-JMX-WE5
Sewing range1-6mm
Use the needleDB*1  80/12
8-Hour production3800只
power supply220V    50/60HZ
power0.8KW
Air pressure5MPa
Machine weight120KG
Machine size mm1330X800X1260

※ For other models, please inquire about ZOJE Electronic Sample
