ZJ-UA-A9200L-W-DW-WE5

ZJ-UA-A9200L-W-DW-WE5

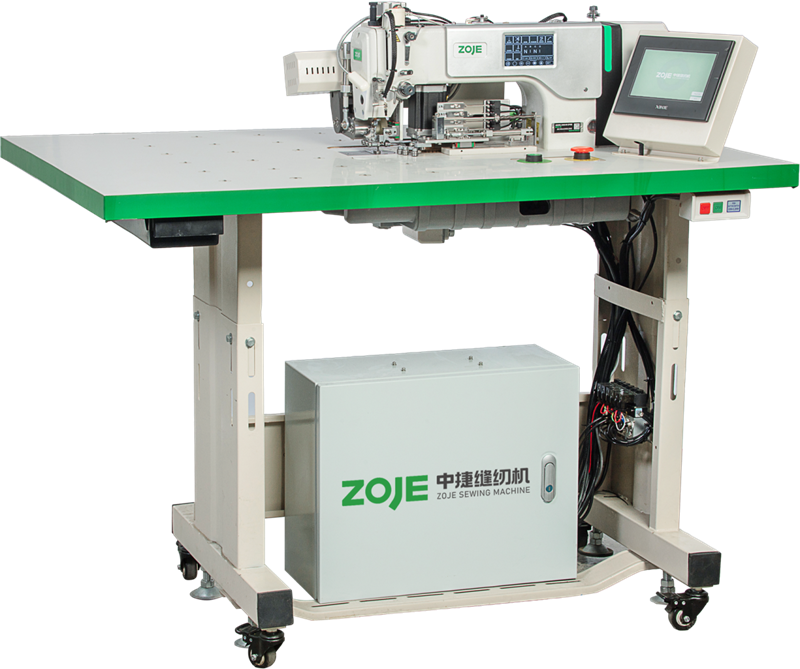

AUTOMATIC CUTTING TEMPLATE MACHINE

Core Technology

Pockets, covers and covers suitable for the processing of various types of shirts, suits anduniforms Sewing of collars, cuffs, epaulets, etc


This series of automatic movers uses PLC programmable controller and humannatureChemical touch screen, easy and quick operation


Sewing patterns can be preset according to the rubber plate model to make each pieceeffective Results consistent, greatly improve the efficiency and quality of work


Provideupand down blowing cleaning function to make the machine more stable andefficient


Anti-wear ball design of the nose to make the seams more responsive and machine lt is noteasy to wear and rust


Breakwire detection function, which allows for breakwire joints and thus saves rework Thetrouble is saving time


Automation of the entire vehicle seam process, suitable for raw workers


Product Features


Originalsharpcorner,circular slotconversion function,when sharp andcircular corner switching There is noneed to adjust the machine to achieverapid change



Unique nostril positioning function andautomatic thinning needle to enablesewn Sharp corners and roundedcorners are more natural and smooth



Researchand development of highspeedsynchronization coretechnology,synchronization of needlestep and template The moving treatmentmakes the seam of the cutting car moreflat



Independent pressure regulationdesign,with main cylinders independentlyconfigured for pressure regulation


Technical Parameter
ModelZJ-UA9200L-W-DM-WE5
NeedleDP×5 11#-16#
Needle gauge0.1-3
Sewing area30×190
Sewing materialsMen's shirt ,Womem's chiffon, knitting
Sewing speed3000rpm
Air consumption1L/min
Air pressure0.5Mpa
PowerAC220V,50/60Hz
Weight280Kg/320Kg
volume100×120×142mm

※ For other models, please inquire about ZOJE Electronic Sample
