Direct drive model
large space, more energy saving

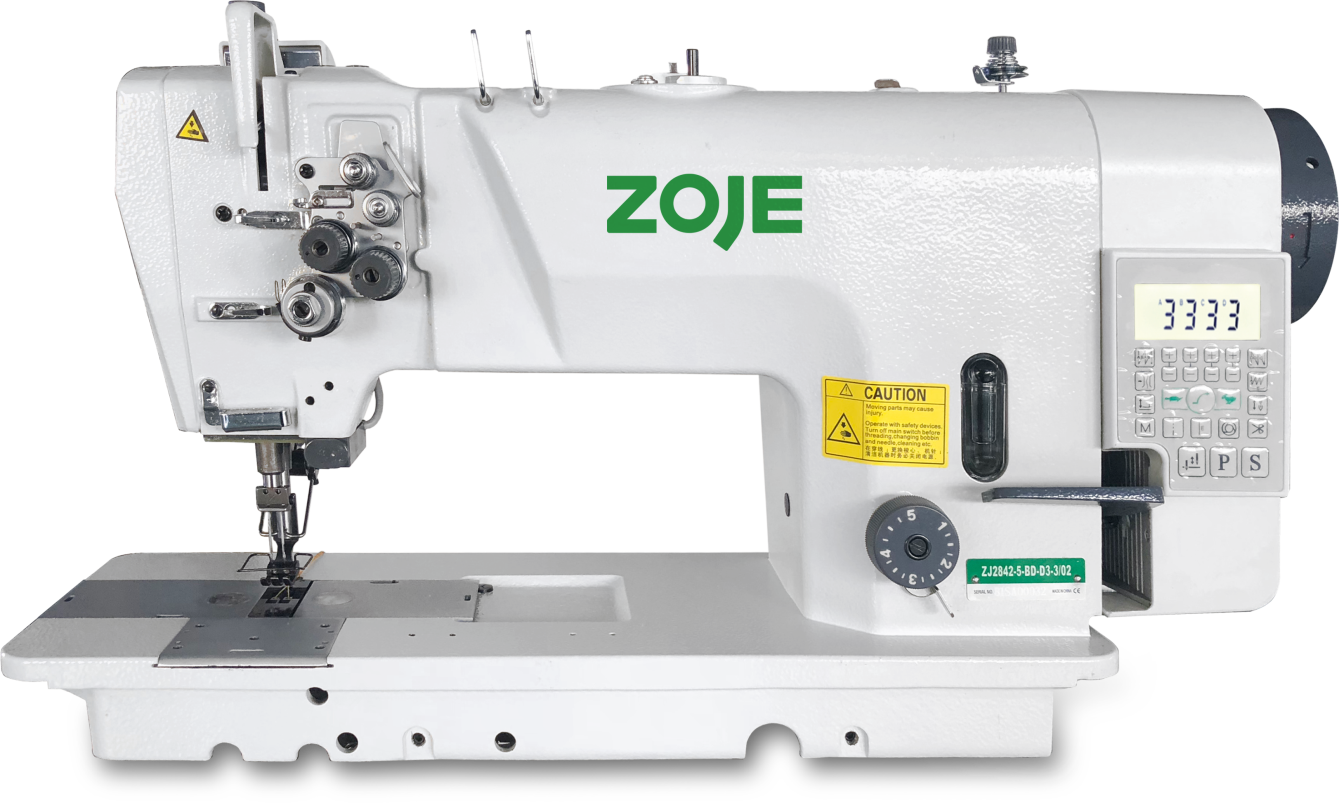

HIGH SPEED DIRECT DRIVE DOUBLE-NEEDLE MICRO-OIL LOCKSTITCH MACHINE

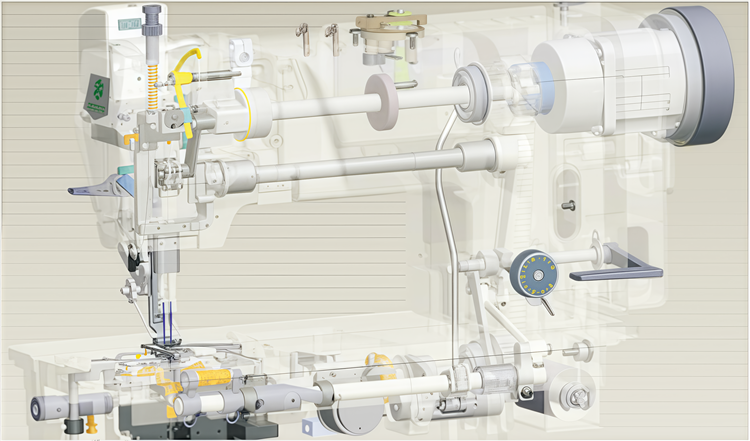

Adopt build-in direct drive servo motor, optimize the sewing technology
Increase by 16.5*20*26mm operation space, more comfortable sewing.
Simple trimming performance debugging, easy to change the needle gauge set.
Adopt multi-range adjustable LED lights, illuminate sewing materials, improve sewing quality
Automatic thread trimming,automatic wiring,automatic reversing,automatic foot lifter(option),increase productivity by 30%
Adopt mini oil lubrication, lower noise, vibration and pollution.
The cloth feeding dial is fixed by the positioning plate, so deviation can be prevented in sewing
It adopts less energy lost direct-drive motor, so that the operator can response to anysewing condition quickly and effectively.
It adopts small loss computer direct drive way.
Including straight and round knife trimming.

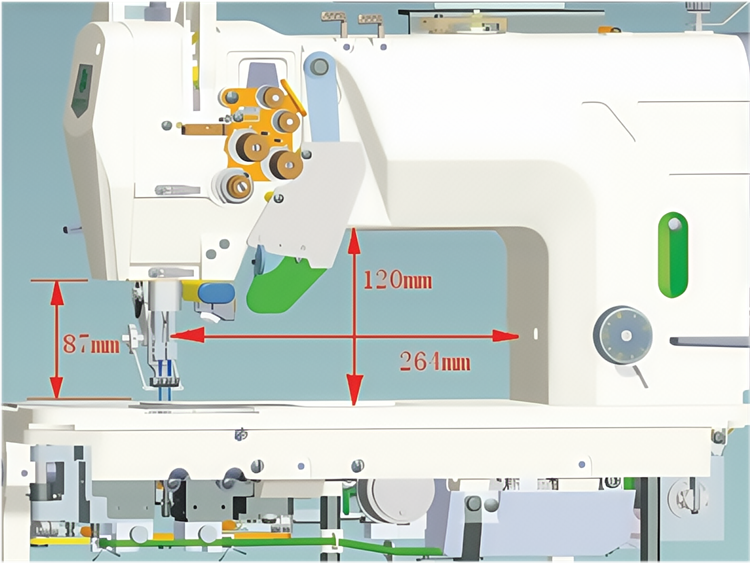

Large operating space

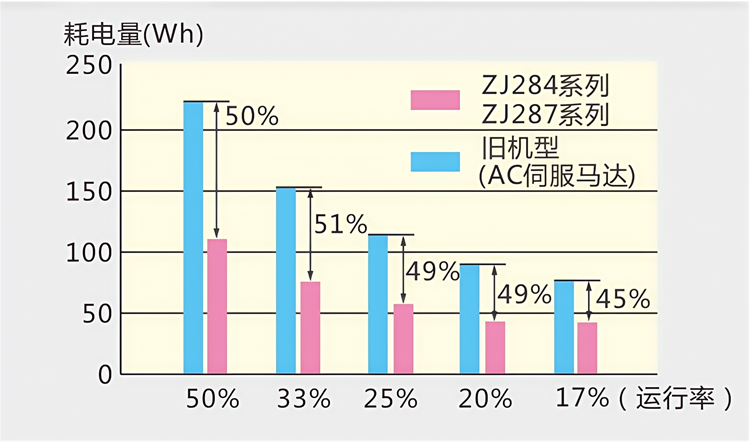

Energy saving and reducing consumption

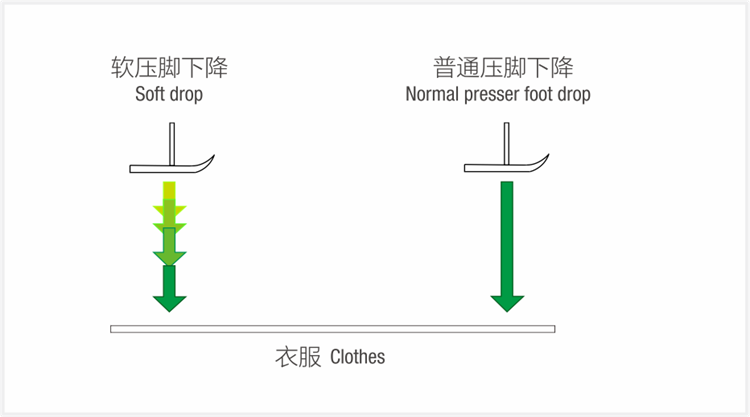

Presser foot soft drop function can prevent high-grade fabric from damaging

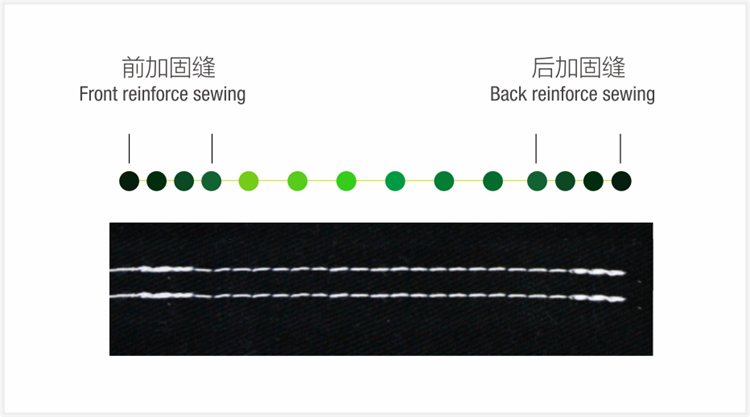

Decorative reinforce sewing to realize coincide stitch during back and forth reinforced sewing
Improve sewing quality

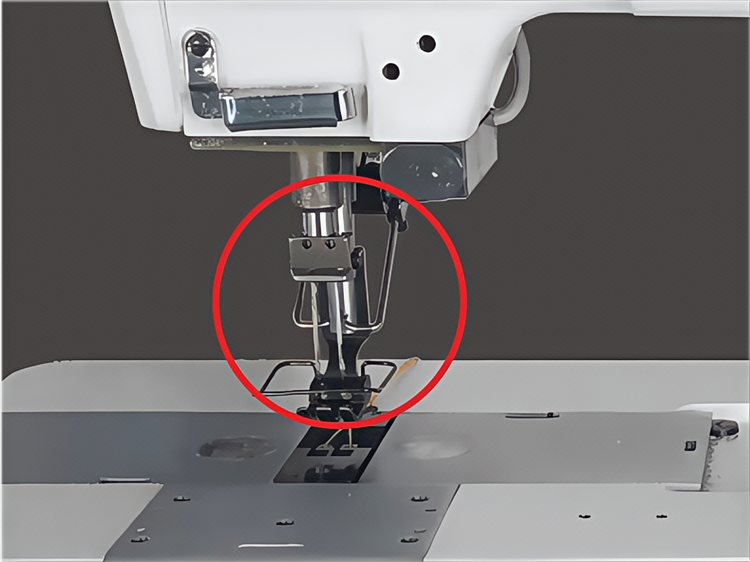

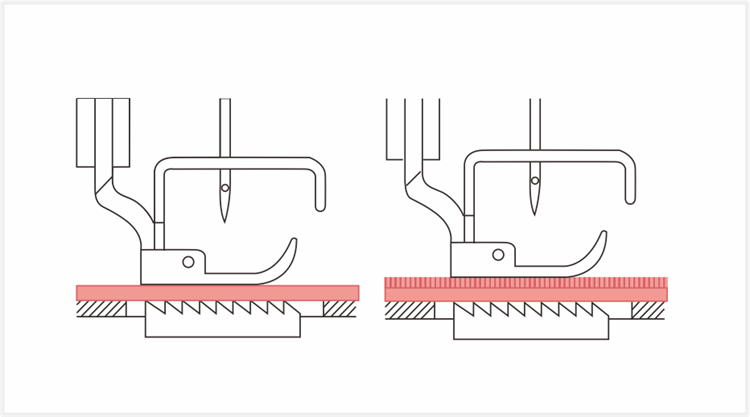

Adopt float line sewing with the most suitable float line presser foot to reduce thedamage of material
| Model | ZJ-2842-BD-D3-3/02 | ZJ-2842-5-BD-D3-3/02 | ZJ-2872-BD-D3-3/02 | ZJ-2872P-5-BD-D3-3/02 | ZJ-2842P-BD-D3-3/02 | ZJ-2842P-5-BD-D3-3/02 | ZJ-2872P-BD-D3-3/02 | ZJ-2872P-5-BD-D3-3/02 | ZJ-2842-BD-3/02 |
| Needle | DB×5 11#-16# | DB×5 14#-122# | DB×5 11#-16# | DB×5 14#-22# | DB×5 11#-16# | DB×5 14#-22# | DB×5 11#-16# | DB×5 14#-22# | DB×5 11#-16# |
| Stitch length | 4mm | 5mm | 7mm | 7mm | 4mm | 5mm | 7mm | 7mm | 4mm |
| Alternation range | 7-13mm | 7-13mm | 7-13mm | 7-13mm | 7-13mm | 7-13mm | 7-13mm | 7-13mm | 7-13mm |
| Needle Feed | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Needle gauge | 6.4 | 6.4 | 6.4 | 6.4 | 6.4 | 6.4 | 6.4 | 6.4 | 6.4 |
| Auto thread trimmer | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Vertical hook(standard) | Yes | Yes | / | / | Yes | Yes | / | / | Yes |
| Horizontal hook(large) | / | / | Yes | Yes | / | / | Yes | Yes | / |
| Medium Materials | Yes | / | Yes | / | Yes | / | Yes | / | Yes |
| Heavy Materials | / | Yes | / | Yes | / | Yes | / | Yes | / |
| Sewing speed | 3000rpm | 3000rpm | 3000rpm | 3000rpm | 3000rpm | 3000rpm | 3000rpm | 3000rpm | 3000rpm |
※ For other models, please inquire about ZOJE Electronic Sample
