A5490L

A5490L

Large workspace

Memory pattern change

Sealed oil pan

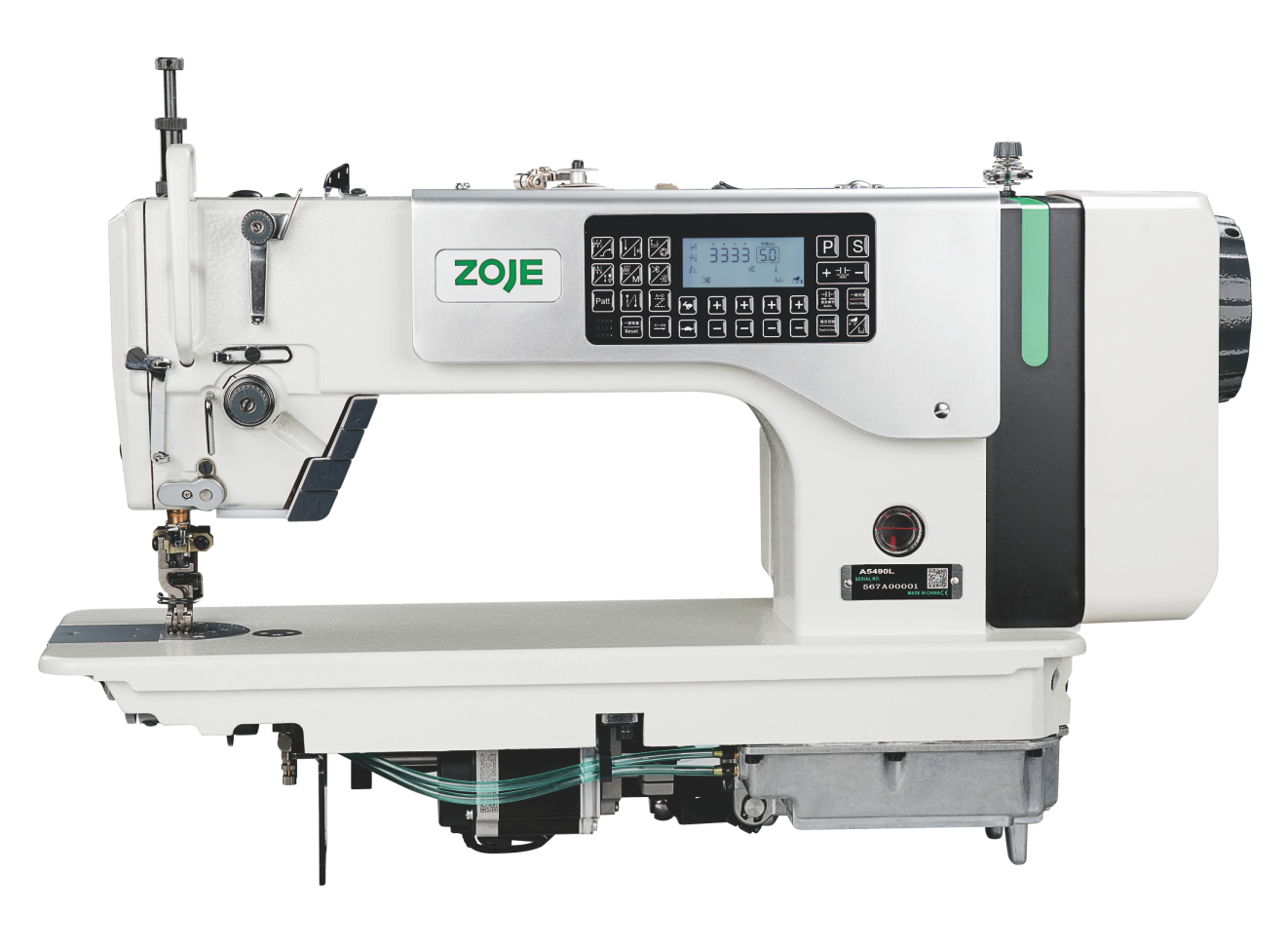

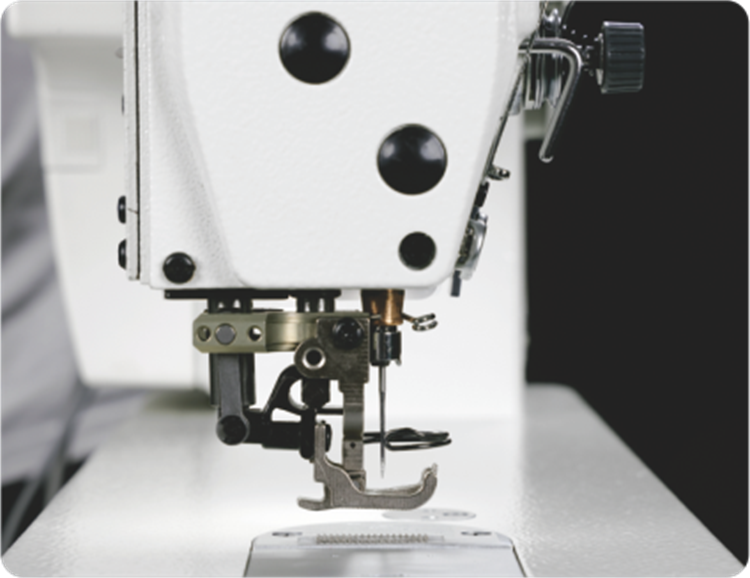

UNDER DIFFERENTIAL FLAT SEWING MACHINE

Core Technology
Product Features

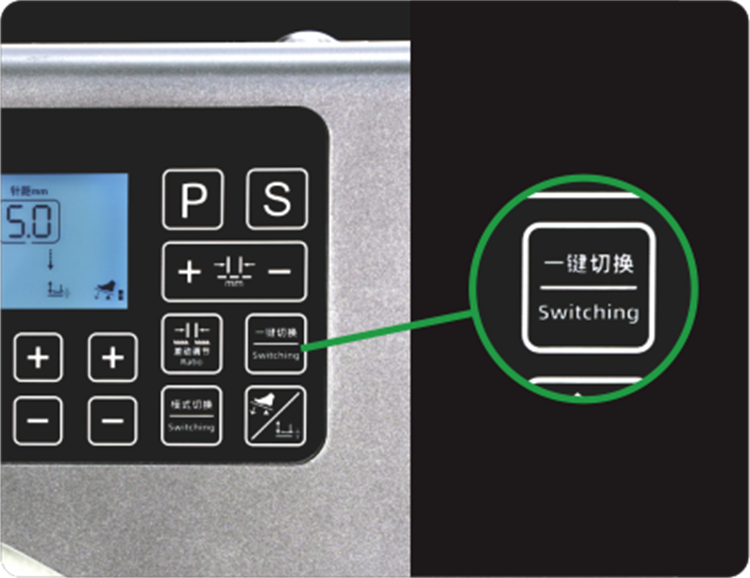

One-touch switching,5-second pattern change

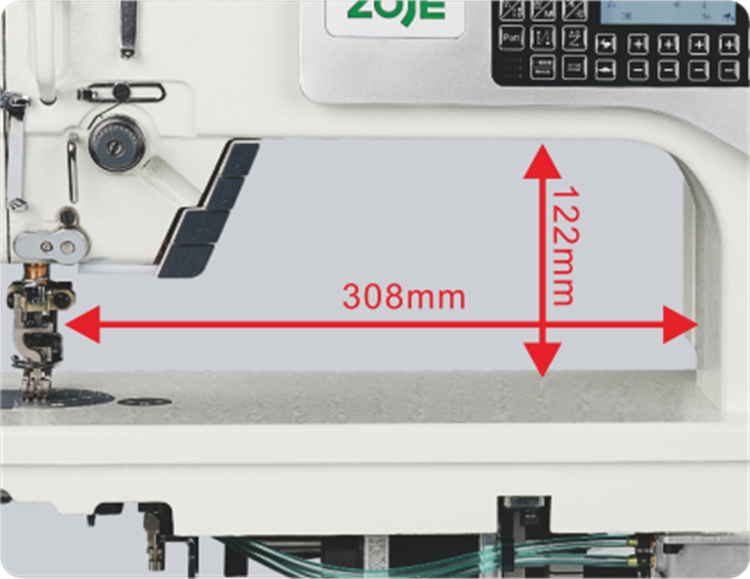

308x122mm,industry's largest working space

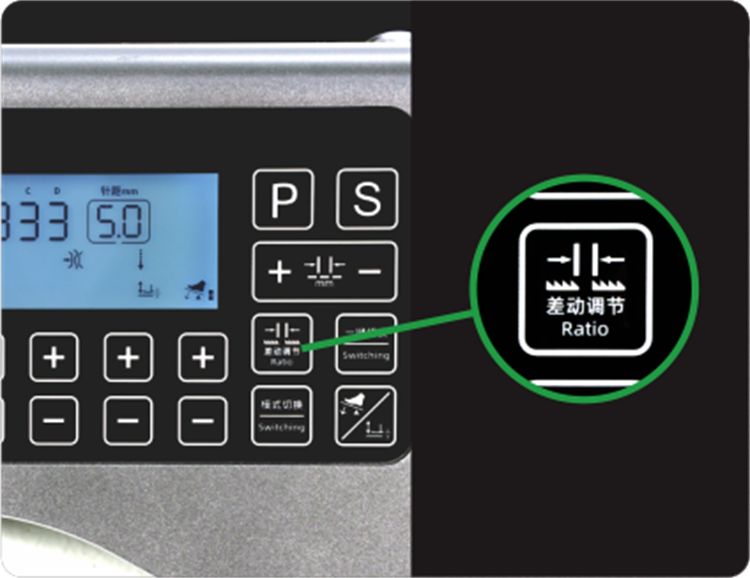

Parametric adjustment of upper differential stepper



Standard stepper auto presser foot lift

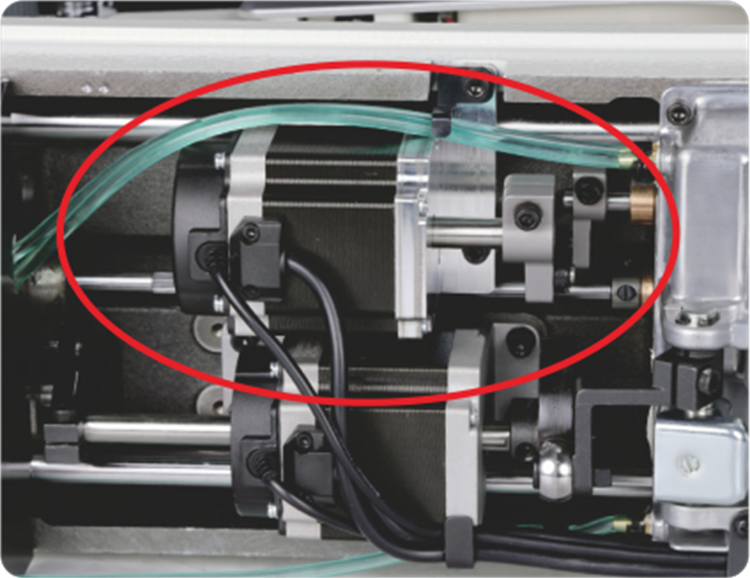

Stepper auto segmented differential feed

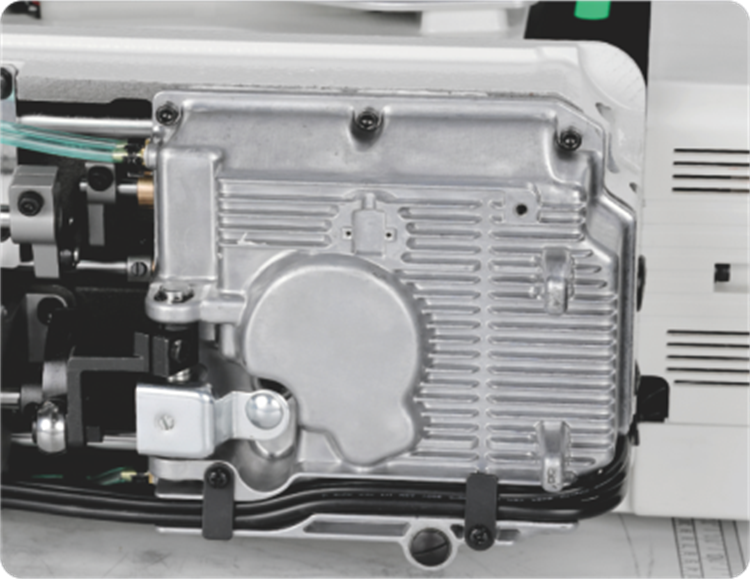

Oil-free head + sealed oil pan

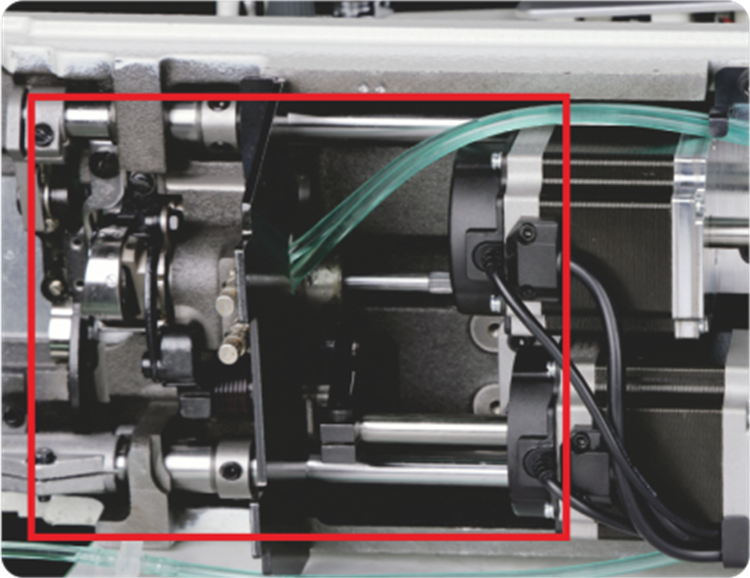

Stepper thread trimming function

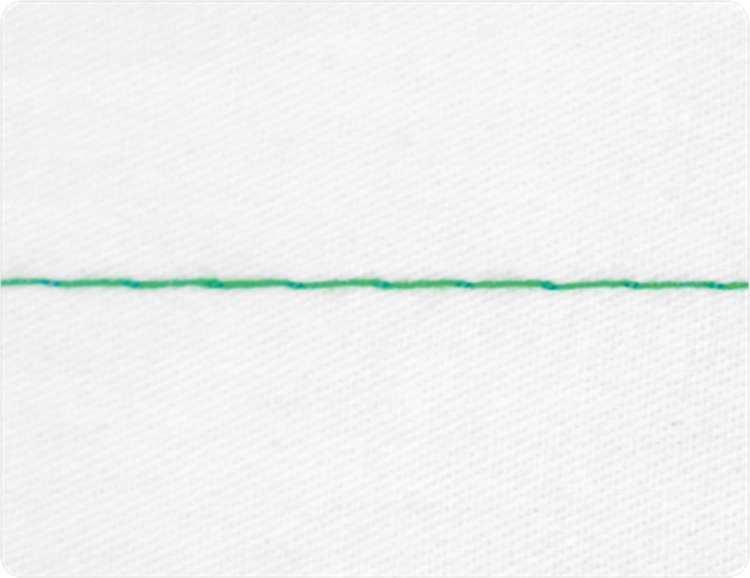

Precise stitch,smooth reverse stitch switching

Technical Parameter
ModelA5490LA5490L+A5490L-CPA5490L+-CP
Thicknesslight-weight materialslight-weight materialslight-weight materialslight-weight materials
Sewing speed4000rpm4000rpm4000rpm4000rpm
Stitch length5mm5mm5mm5mm
Alternation  range4mm(Manual lift )-11mm(Knee lift） 4mm(Manual lift )-11mm(Knee lift）4mm(Manual lift )-11mm(Knee lift）4mm(Manual lift )-11mm(Knee lift）
NeedleDBX1 8#-18#DBX1 8#-18#DBX1 8#-18#DBX1 8#-18#
Lubricating oil10# white oil10# white oil10# white oil10# white oil
Power220V / 550W220V / 550W220V / 550W220V / 550W


十: loT Function(Default: No functions included), CP: Color Touchscreen(Default: Standard Keypad Screen)

※ For other models, please inquire about ZOJE Electronic Sample
