Smart twin-needle
Excellent cornering

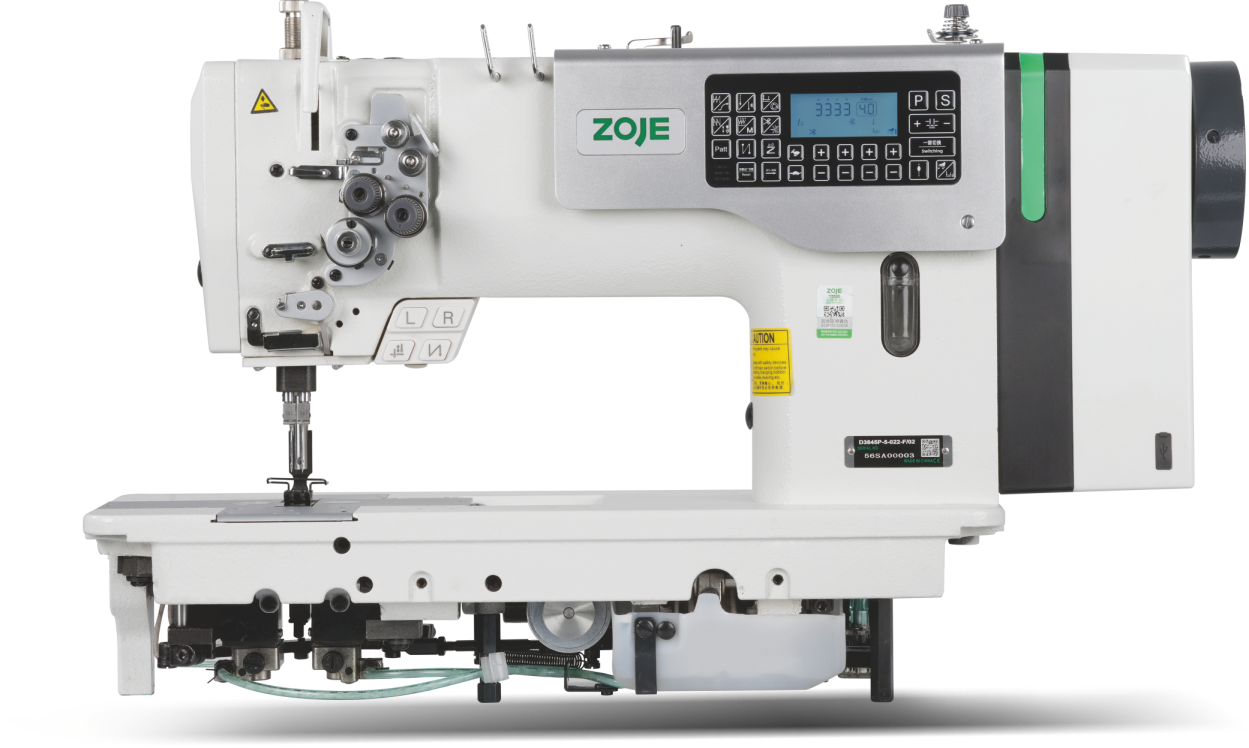

LARGE-SPACE DUAL-STEPPER SMART TWIN-NEEDLE MACHINE

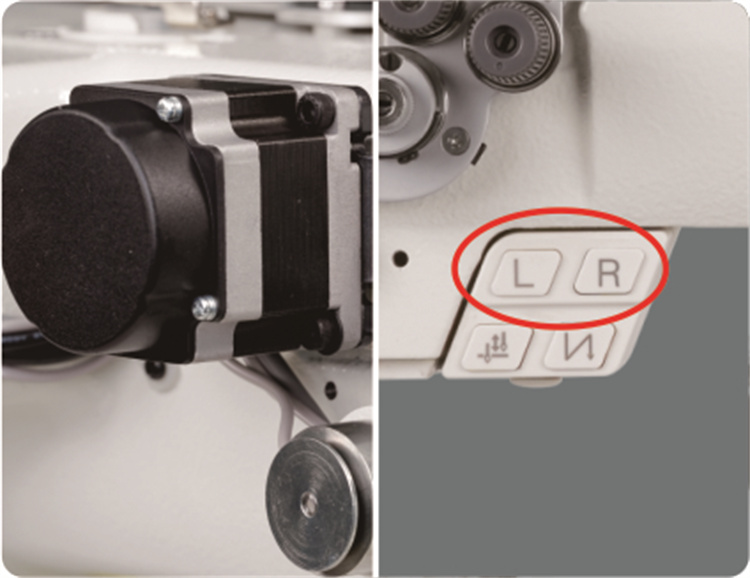

Smart cornering technology for high-quality corner stitches

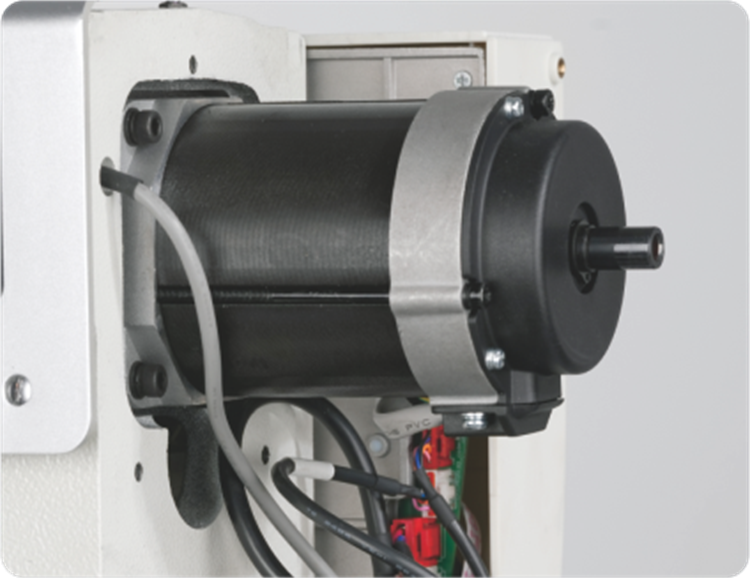

High-torque motor with dragon-tooth puncture force

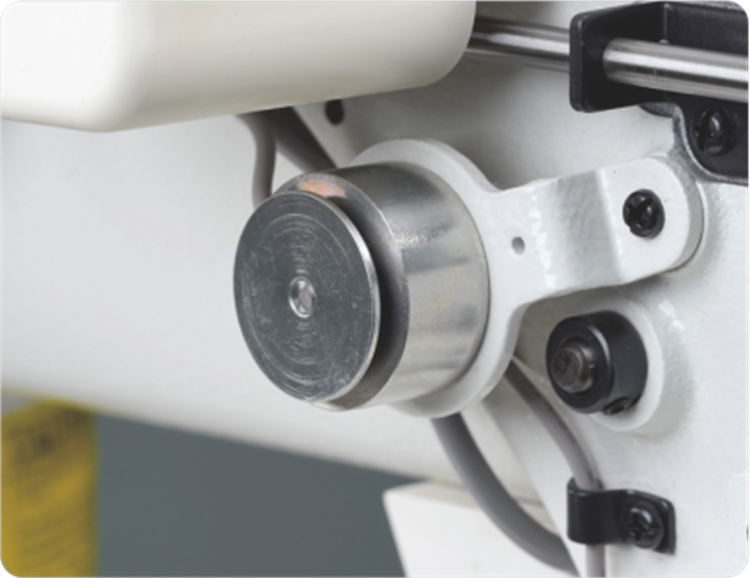

Electronic thread loosening for stablestitch start

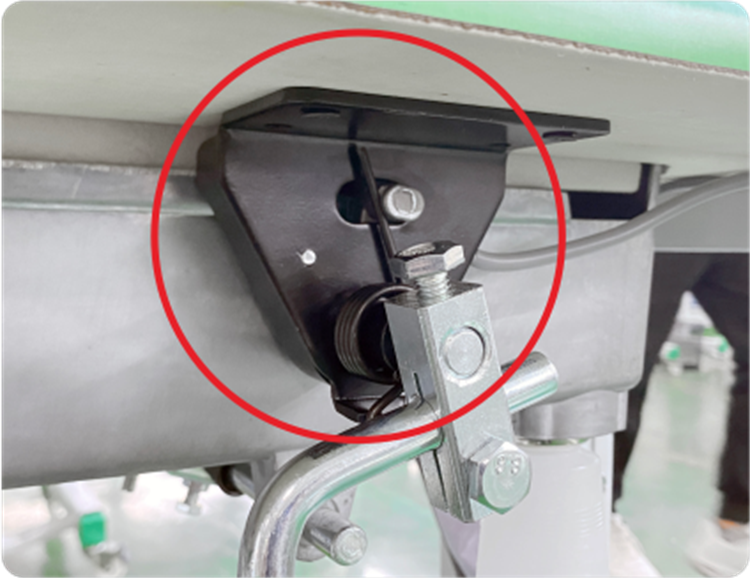

Optional electronic knee lift
| Model | D3845-D5/02 | D3845-5-D5/02 | D3875-D5/02 | D3875-5-D5/02 | D3845-D4/02 | D3845-5-D4/02 | D3875-D4/02 | D3875-5-D4/02 | D3845A-D202 | D3845A-5-D2/0 | D3875A-D2/02 | D3875A-5-D2/02 |
| Needle | Dpx5 11#-16# | DPx5 14#-22# | Dpx5 11#-16# | DPx5 14#-22# | Dpx5 11#-16# | DPx5 14#-22# | Dpx5 11#-16# | DPx5 14#-22# | Dpx5 11#-16# | DPx5 14#-22# | Dpx5 11#-16# | DPx5 14#-22# |
| Stitch length | 5mm | 5mm | 7mm | 7mm | 5mm | 5mm | 7mm | 7mm | 5mm | 5mm | 7mm | 7mm |
| Alternation range | 7-13mm | 7-13mm | 7-13mm | 7-13mm | 7-13mm | 7-13mm | 7-13mm | 7-13mm | 7-13mm | 7-13mm | 7-13mm | 7-13mm |
| Needle Feed | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | 有Yes | 有Yes |
| Needle gauge | 6.4 | 6.4 | 6.4 | 6.4 | 6.4 | 6.4 | 6.4 | 6.4 | 6.4 | 6.4 | 6.4 | 6.4 |
| Auto thread trimmer | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | / | / | / | / |
| Vertical hook(standard) | Yes | Yes | / | / | Yes | Yes | / | / | Yes | Yes | / | / |
| Horizontal hook(large) | / | / | Yes | Yes | / | / | Yes | Yes | / | / | 有Yes | 有Yes |
| Medium Materials | Yes | / | Yes | / | Yes | / | Yes | / | Yes | / | 有Yes | / |
| Heavy Materials | / | Yes | / | Yes | / | Yes | / | Yes | / | Yes | / | 有Yes |
| Sewing speed | 3000rpm | 3000rpm | 3000rpm | 3000rpm | 3000rpm | 3000rpm | 3000rpm | 3000rpm | 3000rpm | 3000rpm | 3000rpm | 3000rpm |
A: Domestic Bobbins: Default: lmported Bobbins, 5: Heavy Fabric: Default: Medium-Heavy FabricD2:Automatic Stitch Length,Automatic Presser Foot LiftD4:Automatic Stitch Length,Automatic presser Foot Lif, Automatic Thread Trimming, DefaultAutomatic Thread Tension (or 0ptionalAutomatic Thread Wiping)05:Auomaie slich enath Aamalc Presser FootiL Auomalc Thread immin. DalautAamaic hred ansionor0oionlAutomale hrea wioina.Auomalc Coetng
※ For other models, please inquire about ZOJE Electronic Sample
Download user manual
