ZJ2479A

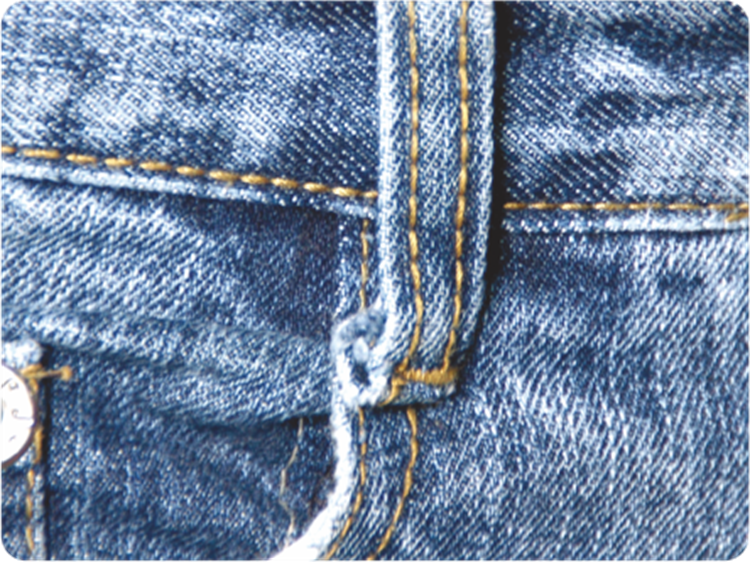

Belt loops are integrated with rolling and cutting
Ensuring consistent and uniform length

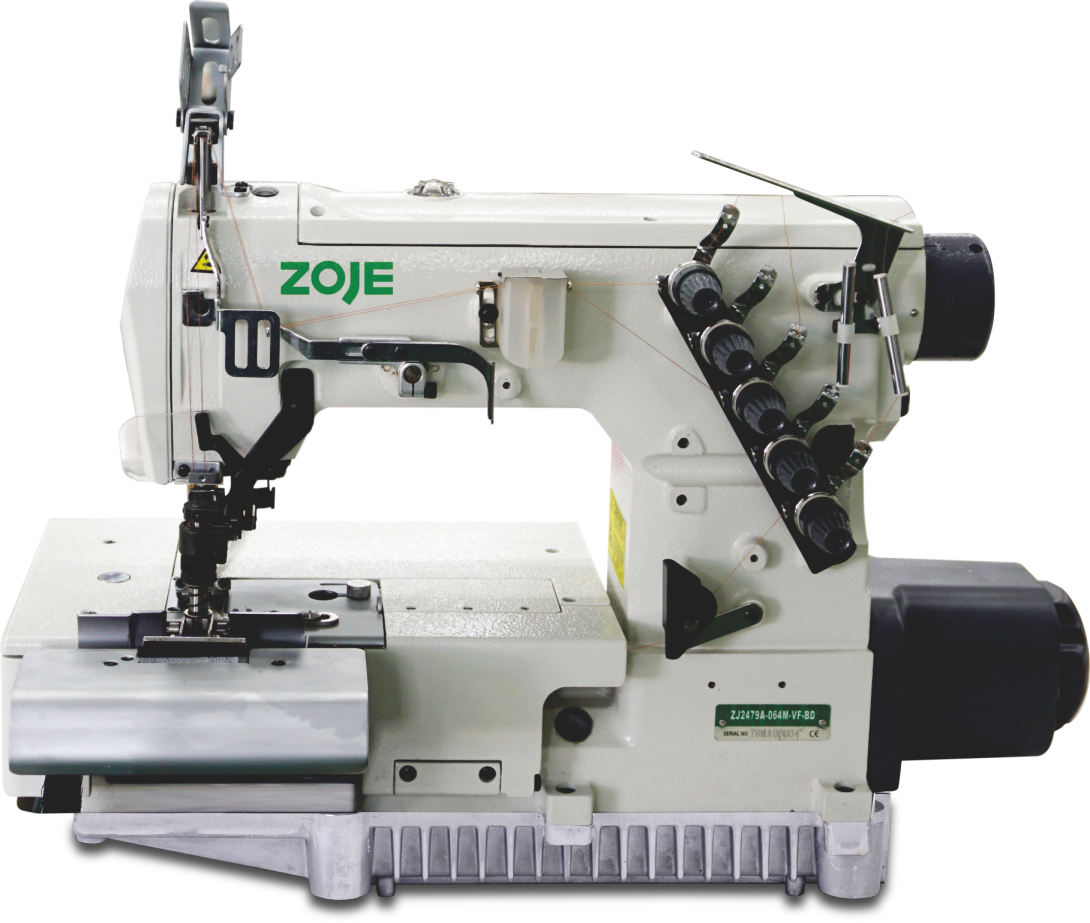

HIGH-SPEED BELT LOOP INTERLOCK SEWING MACHINE
Core Technology
Product Features

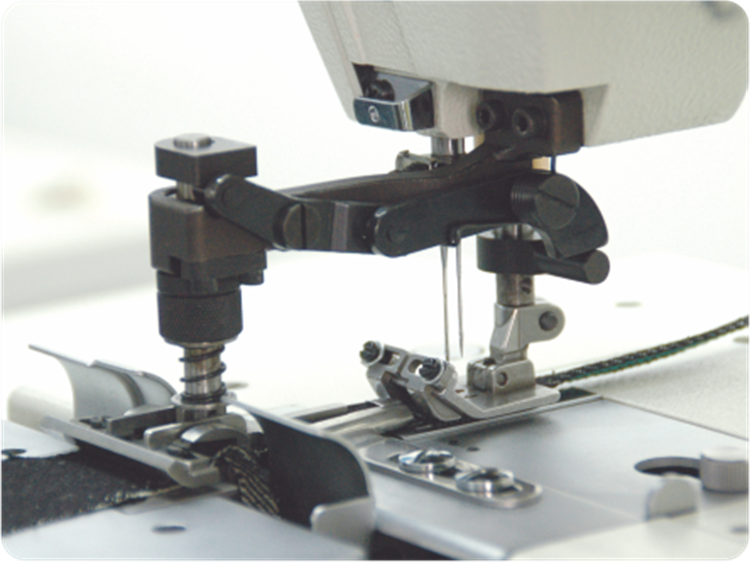

Patented Design:Front Presser Foot Mechanism

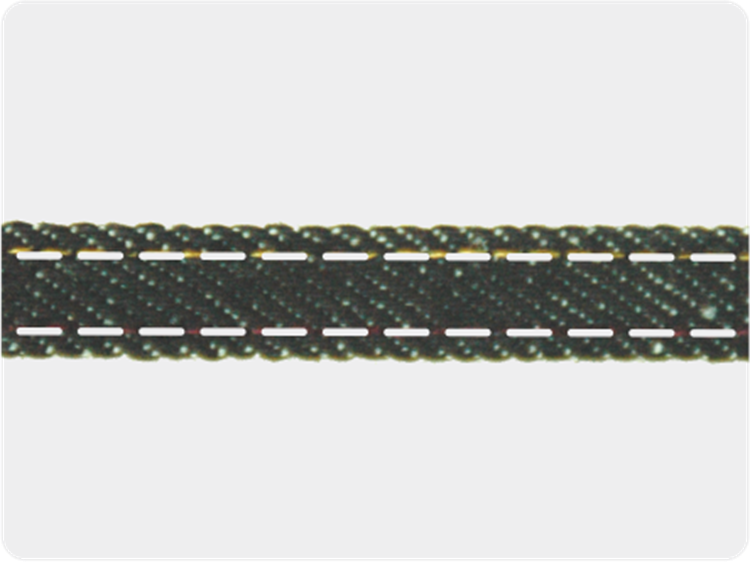

Front side stitch

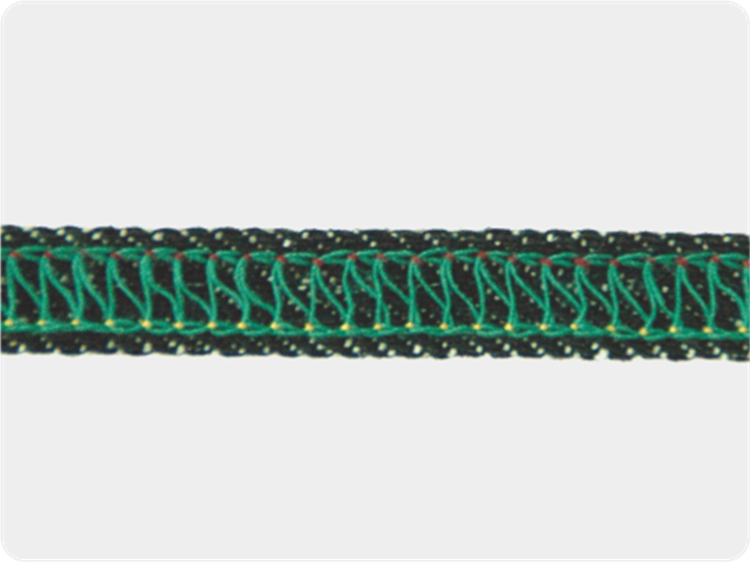

Back side stitch
Technical Parameter
| Model | ZJ2479A-056M-VF-BD | ZJ2479A-064M-VF-BD |
| Needle | UY128GAS 14# | UY128GAS 14# |
| No.of needles | 2 | 2 |
| No.of threads | 4 | 4 |
| Stitch width | 5.6 | 6.4 |
| Stitch length | 1.4-4.2 | 1.4-4.2 |
| Differential ratio | 1/0.8-1/1.1 | 1/0.8-1/1.1 |
| Alternation range | 6 | 6 |
| Sewing speed | 4000 | 4000 |
056M: Standard Stitch Mechanism (5.&mm Needle Spacing, standard Nedle Plate Claw, 064M: standard Stitch Mechanism (6.4mm Nedle Spacing, Standard Needle Plate Claw).BD:Direct Drive System
Optional-TK: Fabric Cutting Device
※ For other models, please inquire about ZOJE Electronic Sample
