ZJ2539A

ZJ2539A

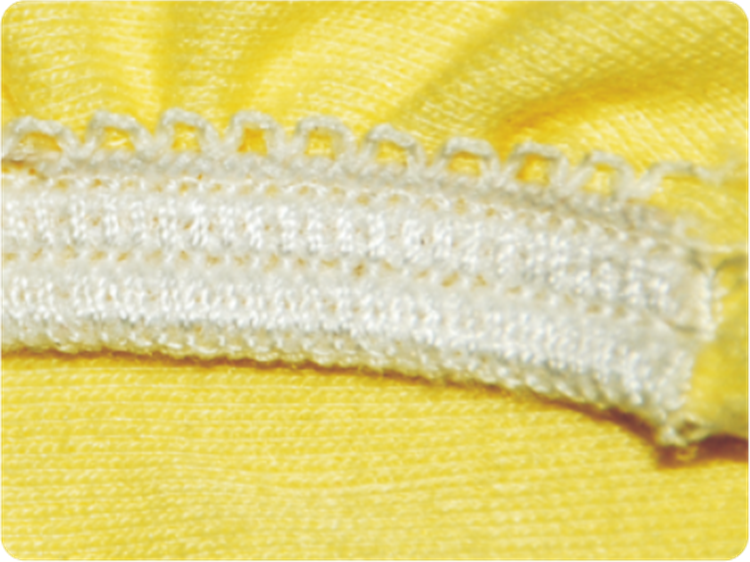

Lace sewing prevents tangling

And elasticity is easily adjustable

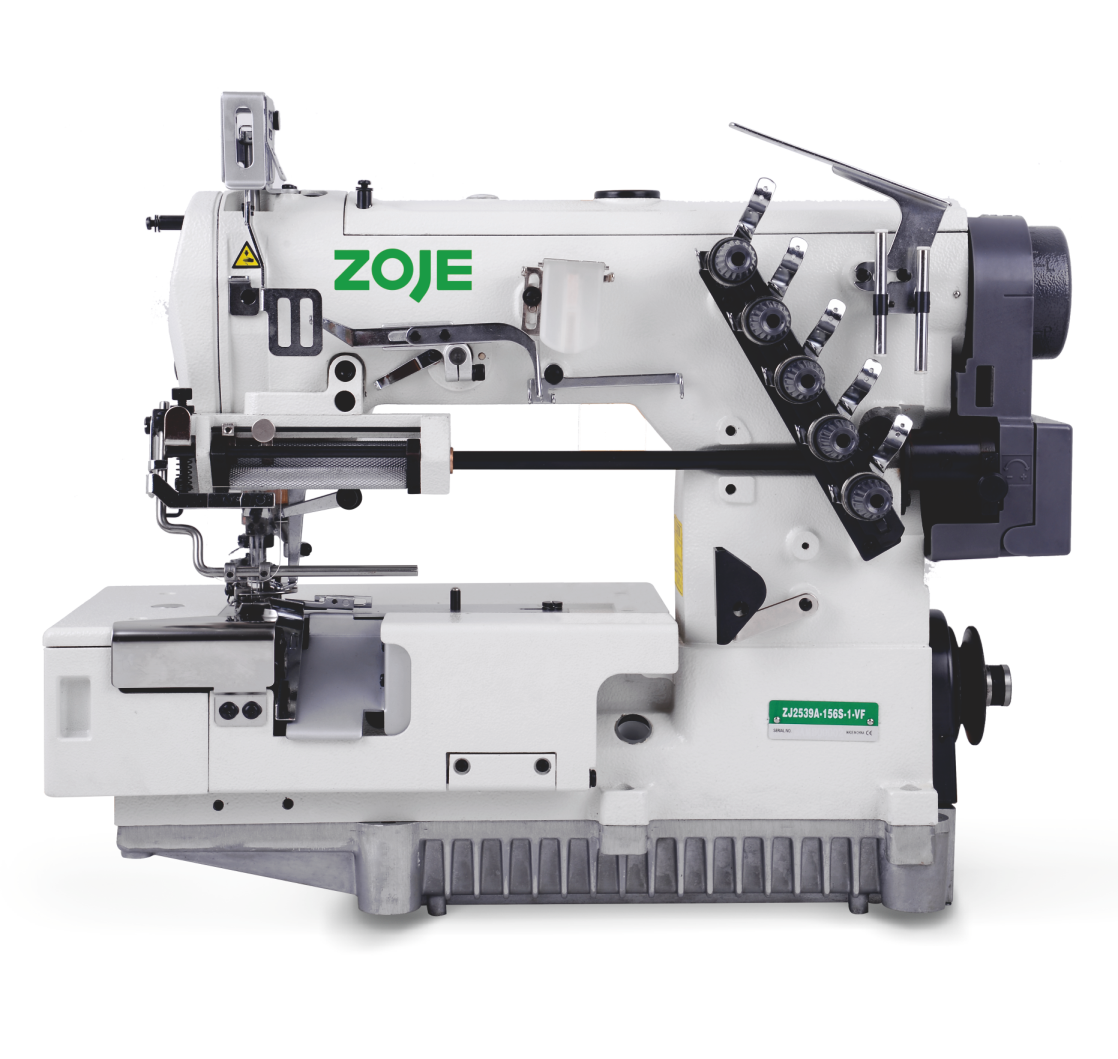

ULTRA HIGH-SPEED LACE ATTACHING FLAT TYPE INTERLOCK SEWING MACHINE

Core Technology
Product Features


Designed for sewing lace onwomen's blouses



Triple-feed wheel ensures synchronized fabric feeding

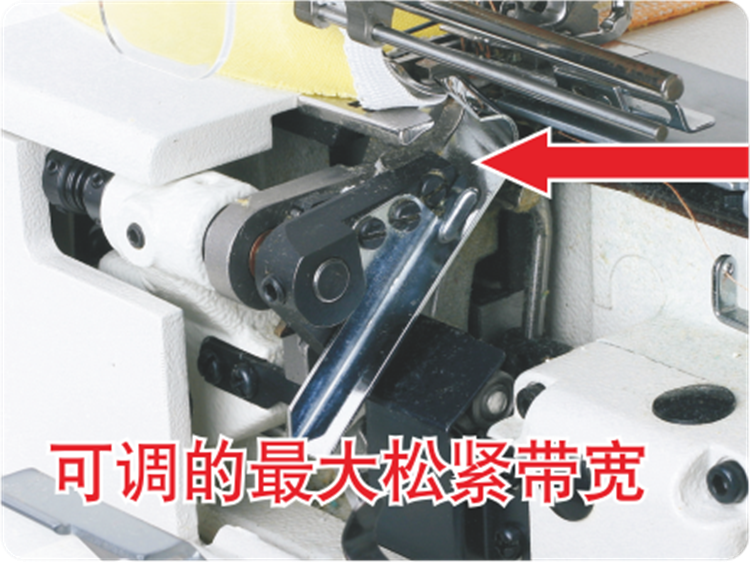

Maximum elastic width adjustable up to 80mm

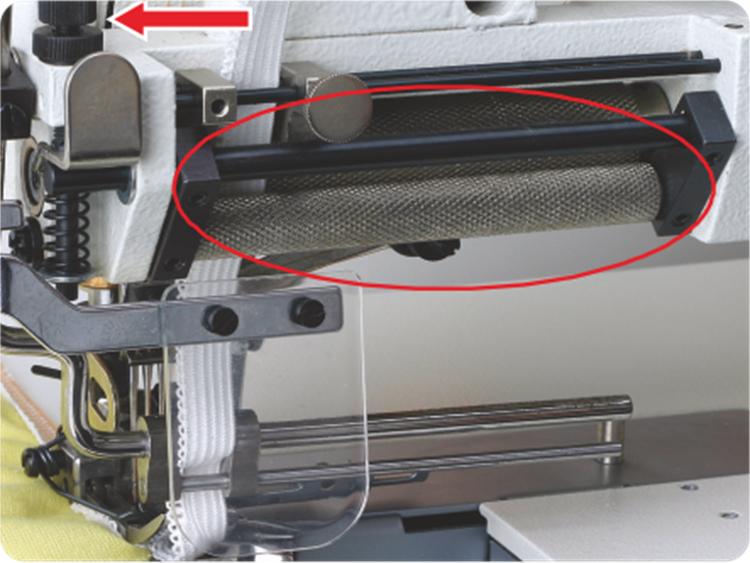

Feed rollers provide precise elastic tension adjustment

Technical Parameter
ModelZJ2539A-156S-1-VF-BD-D3ZJ2539A-164S-1-VF-BD-D3
NeedleUY128GAS 14#UY128GAS 14#
No.of needles33
No.of threads55
Stitch width5.66.4
Stitch length1.4-4.21.4-4.2
Differential ratio1/0.8-1/1.31/0.8-1/1.3
AIternation range77
Sewing speed50005000


156S:Decorative stitch Mechanism (5.mm eedle Spacing,Specialized Needle Plate Claw,164: Decoratve Sitch Mechanism (6.4mm Nedle Spacing,Speciaized Needle plate Caw).BD: Direct Drive System

※ For other models, please inquire about ZOJE Electronic Sample
