Multi-purpose machine
Thick/thin fabric adaptability
Stepper model

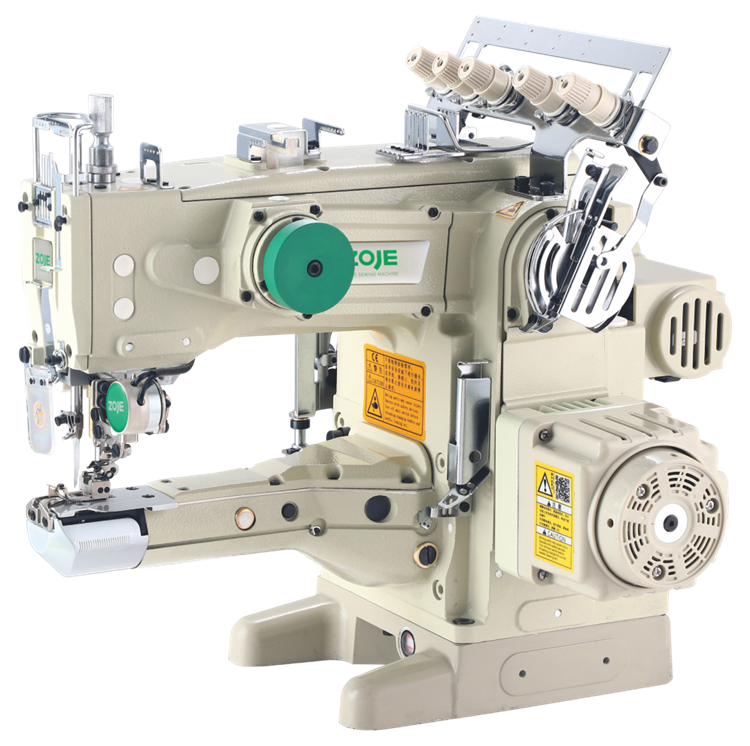

STEPPER MOTOR THREAD-TRIMMING HIGH-SPEED CYLINDER BED COVERSTITCH MACHINE

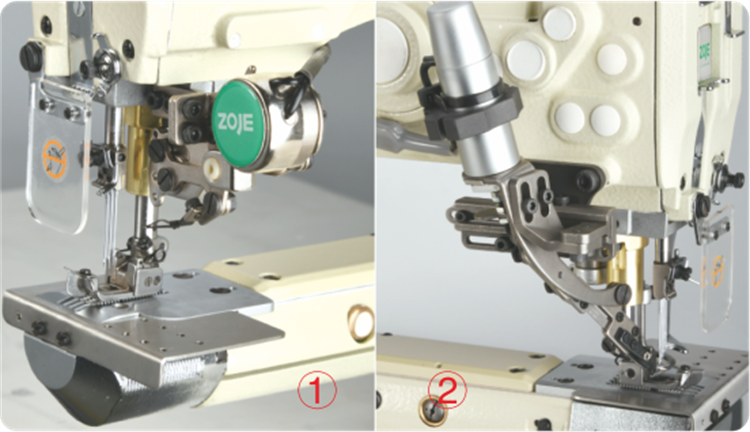

①Automatic Up-dialingDevice( Optional )
②Automatic upper decorative thread cutting(0ptional)

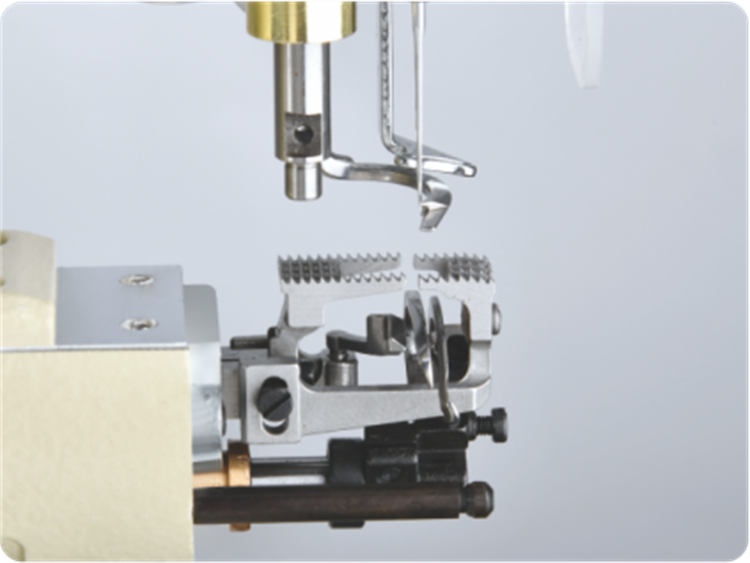

Differential feed ratio design assures free from puckering

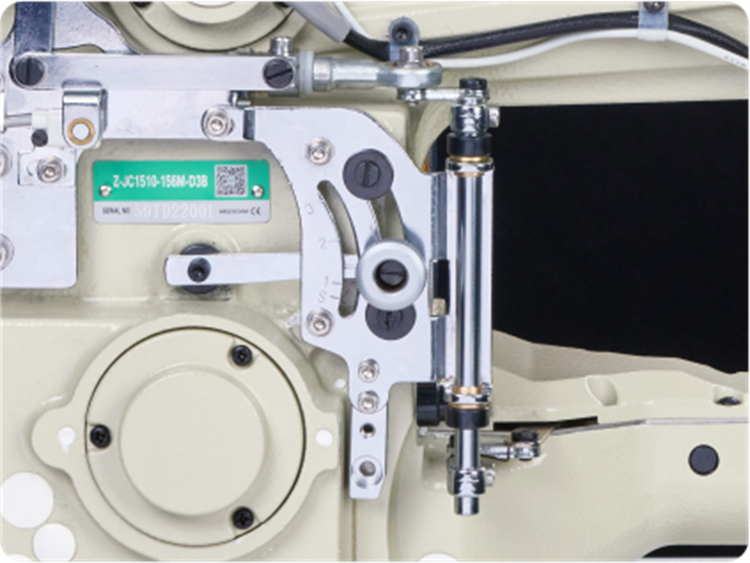

Micro-adjustment regulator makes differential feed ratio easy and precise

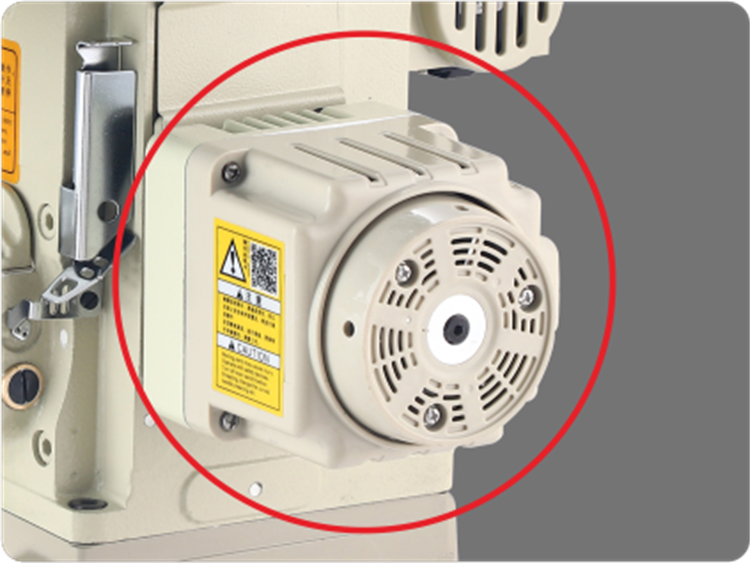

Stepper motor version with low noise and higher stability
| Model | ZJ-C1510-156M | ZJ-C1510-164M |
| Needle | MY1014B 9-16# | MY1014B 9-16# |
| No.of needles | 2（3） | 2（3） |
| No.of threads | 4（5） | 4（5） |
| Needie gauge | 5.6 | 6.4 |
| Stitch width | 1.2-4 | 1.2-4 |
| Differential Ratio | 1:0.8-1:2 | 1:0.8-1:2 |
| Auto thread trimmer | Yes | Yes |
| Needle stroke | 31.5 | 31.5 |
| Sewing speed | 4000 | 4000 |
| Alternation range | 9 | 9 |
| Measurement | 430x284x360 | 430x284x360 |
| Weight | 42/47 | 42/47 |
| Sewing pattern | Inverse StitchRoll collar StitchHem Bottom StitchVertical bone sewing | |
| Device | D3A D3B D3C | |
D3A: Electric automatic lower thread trimming, automatic presser foot lifting, automatic upper decorative thread cutting
D3B: Electric automatic lower thread trimming, automatic presser foot lifting, automatic upper thread hooking
D3C: Electric automatic lower thread trimming, automatic presser foot lifting, automatic upper decorative thread cutting, automatic uper thread hooking
※ For other models, please inquire about ZOJE Electronic Sample
Download user manual
