ZJ-787T-R600
New fabric edge cutting function

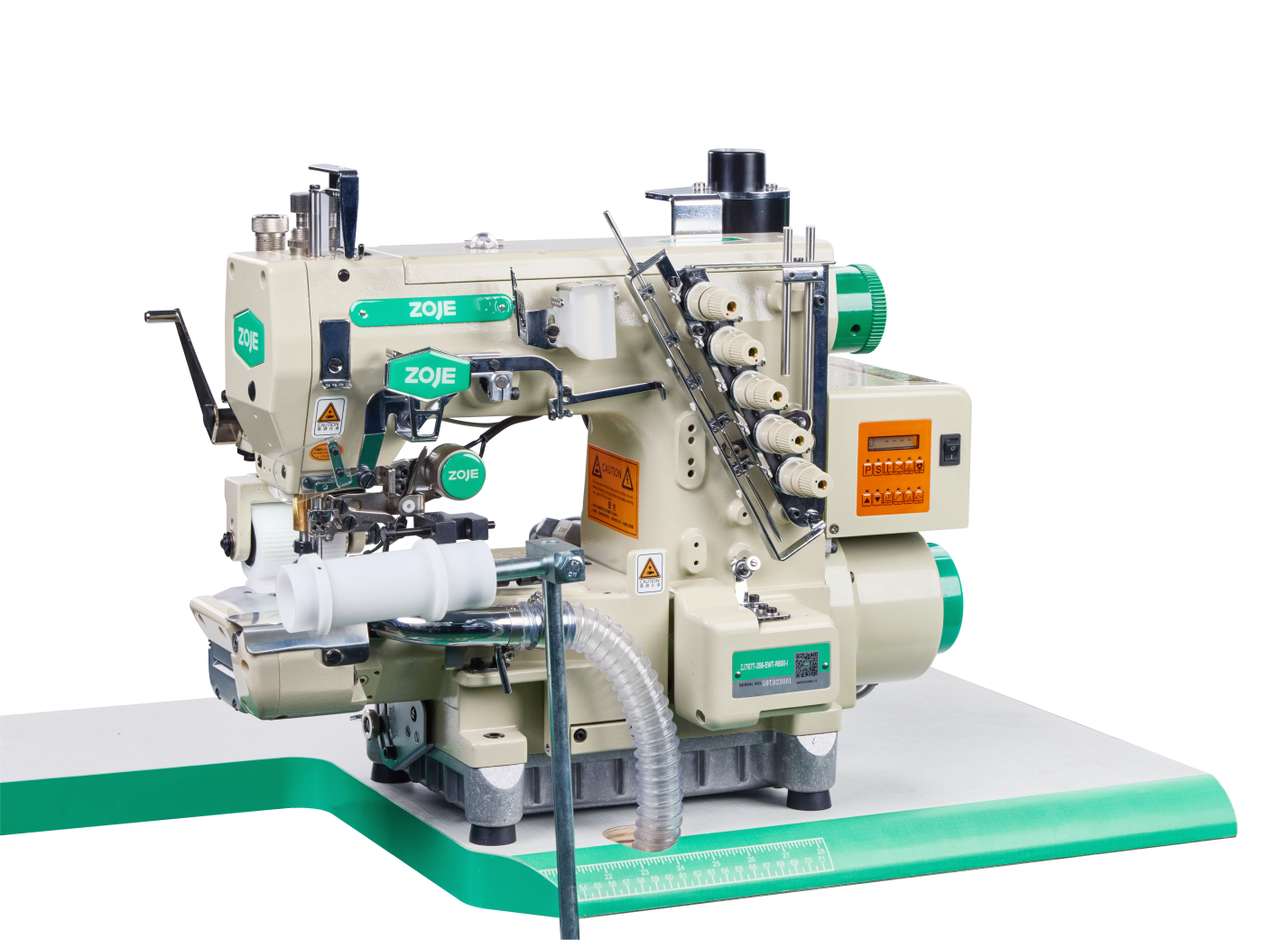

DIRECT-DRIVE AUTO THREAD-TRIMMING CYLINDER-BED COVERSTITCH MACHINE(WITH RIGHT-KNIFE FUNCTION)
Core Technology
Product Features

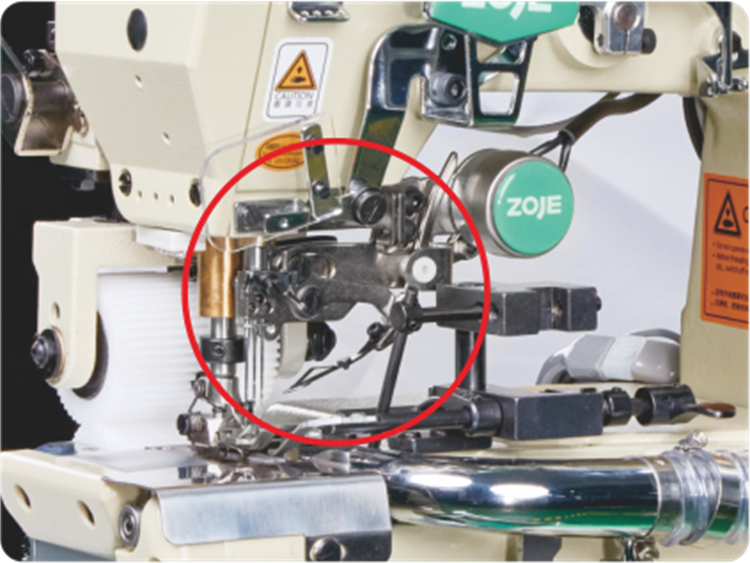

Adjustable tension bracket

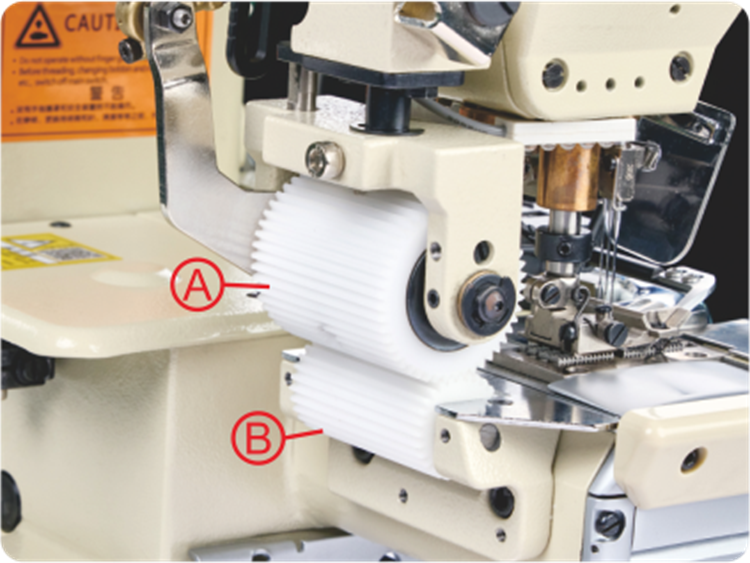

Unidirectional rear drag wheel sot (A forgear wheel, B for fat wheel）

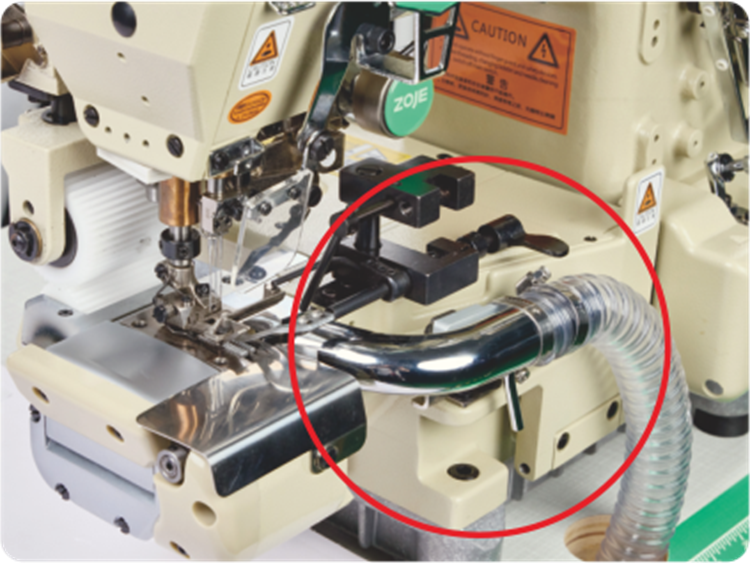

Dust suction standard

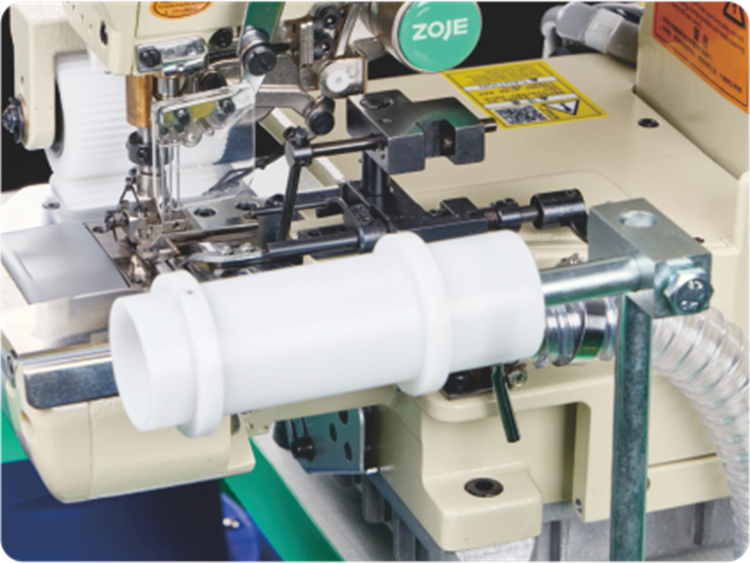

Neww fabric edge cutting function for smoother and more comfortable edges
Technical Parameter
| Model | ZJ-787T-356-AST-R600 | ZJ-787T-364-AST-R600 | ZJ-787T-356ES-TR600 | ZJ-787T-364EST-R600 | ZJ-787T-356-EWTR600 | ZJ-787T-364EW-TR600 |
| No.of needles | 3 | 3 | 3 | 3 | 3 | 3 |
| No.of threads | 5 | 5 | 5 | 5 | 5 | 5 |
| Stitch width | 5.6 | 6.4 | 5.6 | 6.4 | 5.6 | 6.4 |
| Stitch width | 1.4-4.5 | 1.4-4.5 | 1.4-4.5 | 1.4-4.5 | 1.4-4.5 | 1.4-4.5 |
| Differential Ratio | 0.8-1.4 | 0.8-1.4 | 0.8-1.4 | 0.8-1.4 | 0.8-1.4 | 0.8-1.4 |
| Alternation range | 7 | 7 | 7 | 7 | 7 | 7 |
| Sewing speed | 5000 | 5000 | 5000 | 5000 | 5000 | 5000 |
R: Riaht cutter,356:3-needle 5.6 needle position,364:3-needle 6.4 needle positionEST: Automatic Thread Trimming (uper and Lower Blades)-Eiectric, EWT: Upper Thread Take-Up and Lower Thread Timming Blade -Electric,AST:Automatic Thread Triming Upper andLower Blades) - Pneumatic,AWT: Upper Thread Take-Up and Lower Thread Trimming Blade - Pneumatic
※ For other models, please inquire about ZOJE Electronic Sample
