ZJ-008
Integrated body desig
Upgraded needle bar mechanism

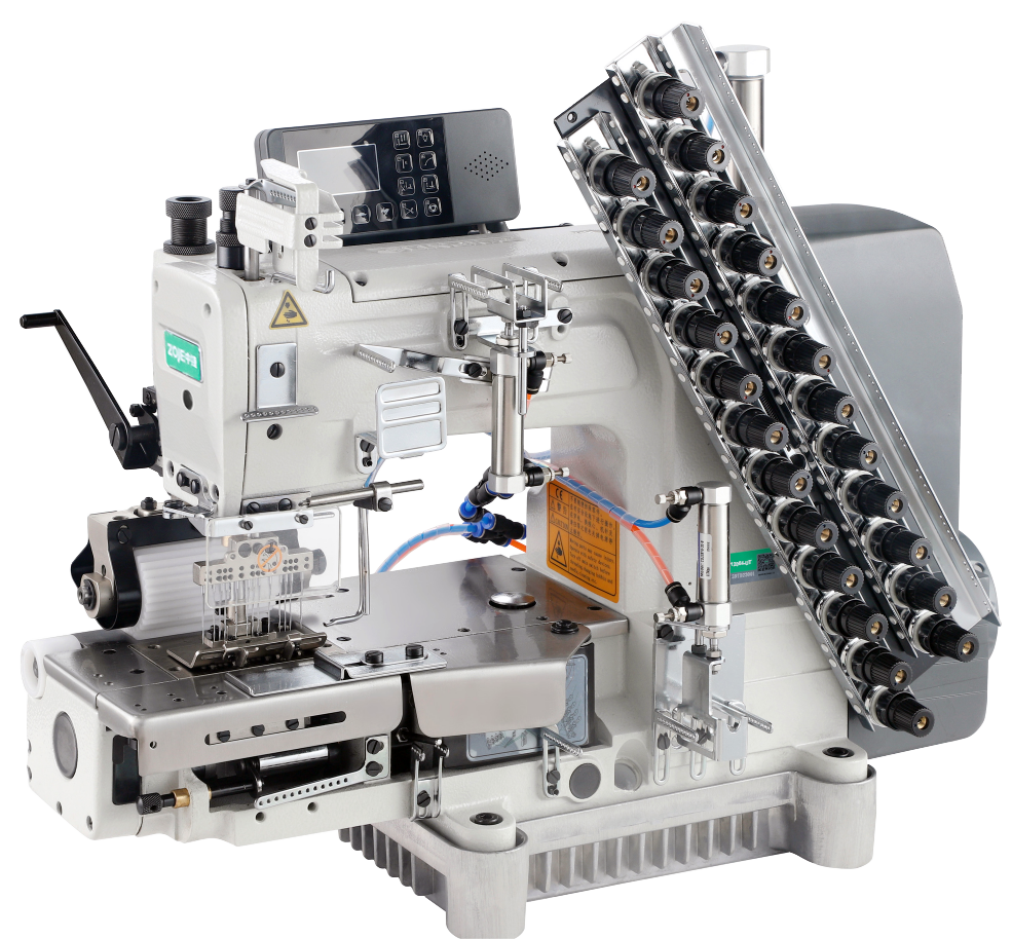

MULTI-NEEDLE CHAINSTITCH CYLINDER-BED MACHINE
Core Technology
Product Features

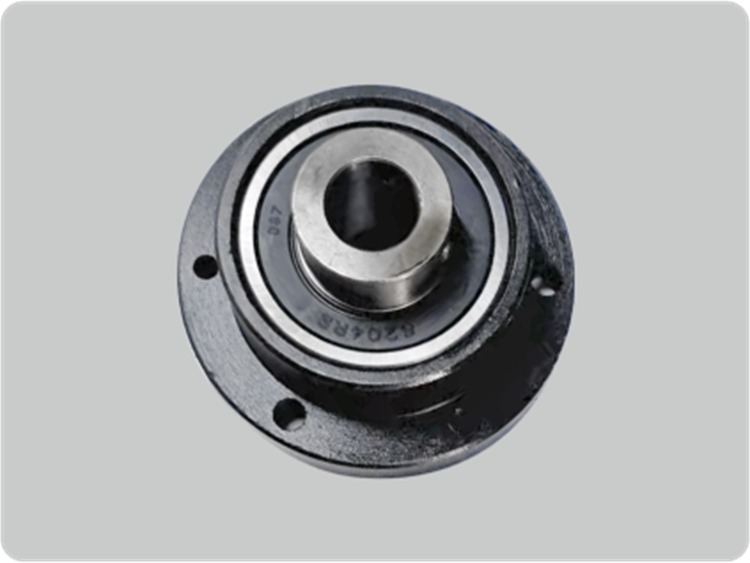

Imported bearing design ensures stableand reliable performance

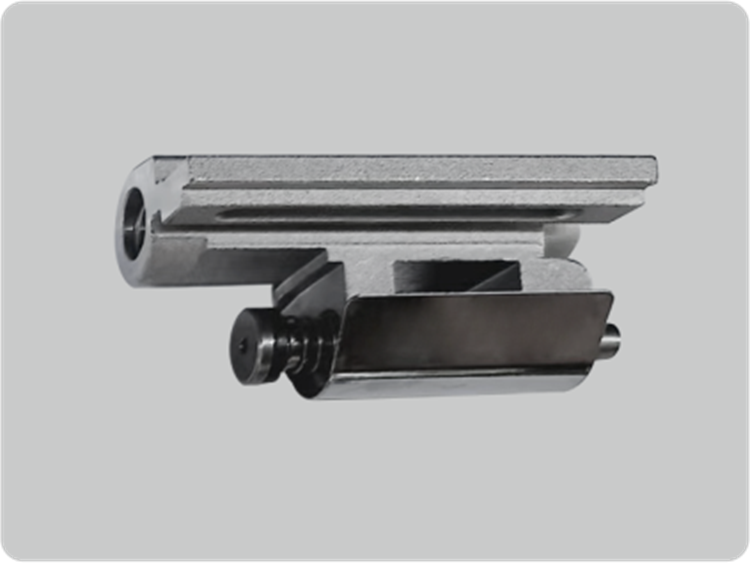

New optimized looper frame structure reduces operational risks

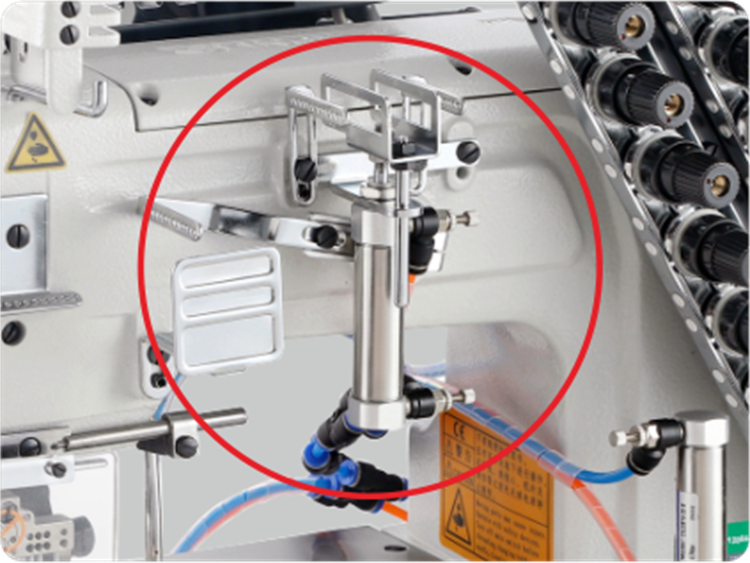

Independent threads loosing mechanism

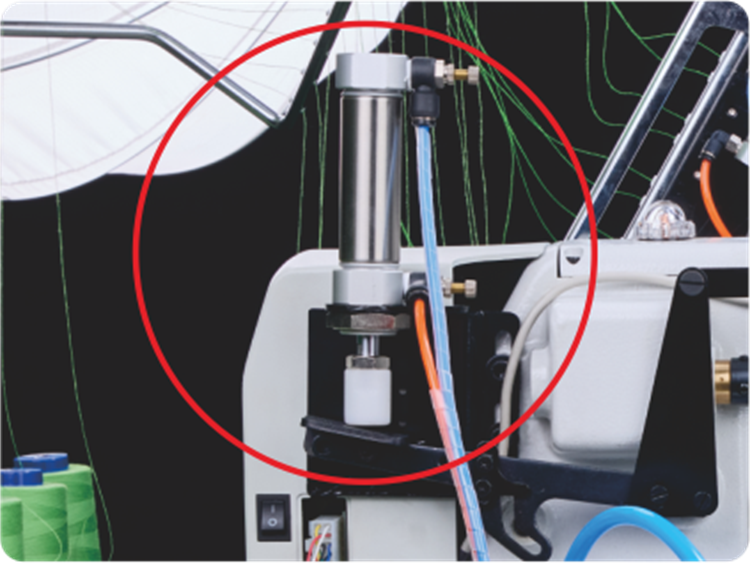

Lifting foot threads loosing mechanism
Technical Parameter
| Model | ZJ-008-04064P-BD | ZJ-008-13032P-BD | ZJ-008-17032P-BD | ZJ-008-25064P-BD | ZJ-008-33048PBD | ZJ-008-45048P-BD | ZJ-008-12064P-VPLBD | ZJ-008-12064P-PQ-BD | ZJ-008-12064P-VSQBD | ZJ-008-12064P-VWL-BD | ZJ-008-13032P-UT |
| No.of needles | 4 | 13 | 17 | 25 | 33 | 45 | 12 | 12 | 12 | 12 | 13 |
| No.of threads | 8 | 26 | 34 | 50 | 66 | 90 | 24 | 24 | 24 | 24 | 26 |
| Needie gauge | 6.4 | 3.2 | 3.2 | 6.4 | 4.8 | 4.8 | 6.4 | 6.4 | 6.4 | 6.4 | 3.2 |
| Stitch width | 1.4-3.6 | 1.4-3.6 | 1.4-3.6 | 1.4-3.6 | 1.4-3.6 | 1.4-3.6 | 1.4-3.6 | 1.4-3.6 | 1.4-3.6 | 1.4-3.6 | 1.4-3.6 |
| Alternation range | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 |
| Needle | UOX113GS #11#14 | UOX113GS #11#14 | UOX113GS #11#14 | UOX113GS #11#14 | UOX113GS #11#14 | UOX113GS #11#14 | UOX113GS #11#14 | UOX113GS #11#14 | UOX113GS #11#14 | UOX113GS #11#14 | UOX113GS #11#14 |
| Sewing speed | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 |
VPL:Tape attaching device
VPQ.VSQ: Elastic thread shirring
VWL: Front elastic feeding
UT: Pneumatic automatic thread trimmer
※ For other models, please inquire about ZOJE Electronic Sample
