ZJ5781E
Compact baseplate
Motorized material pressing
Laser positioning

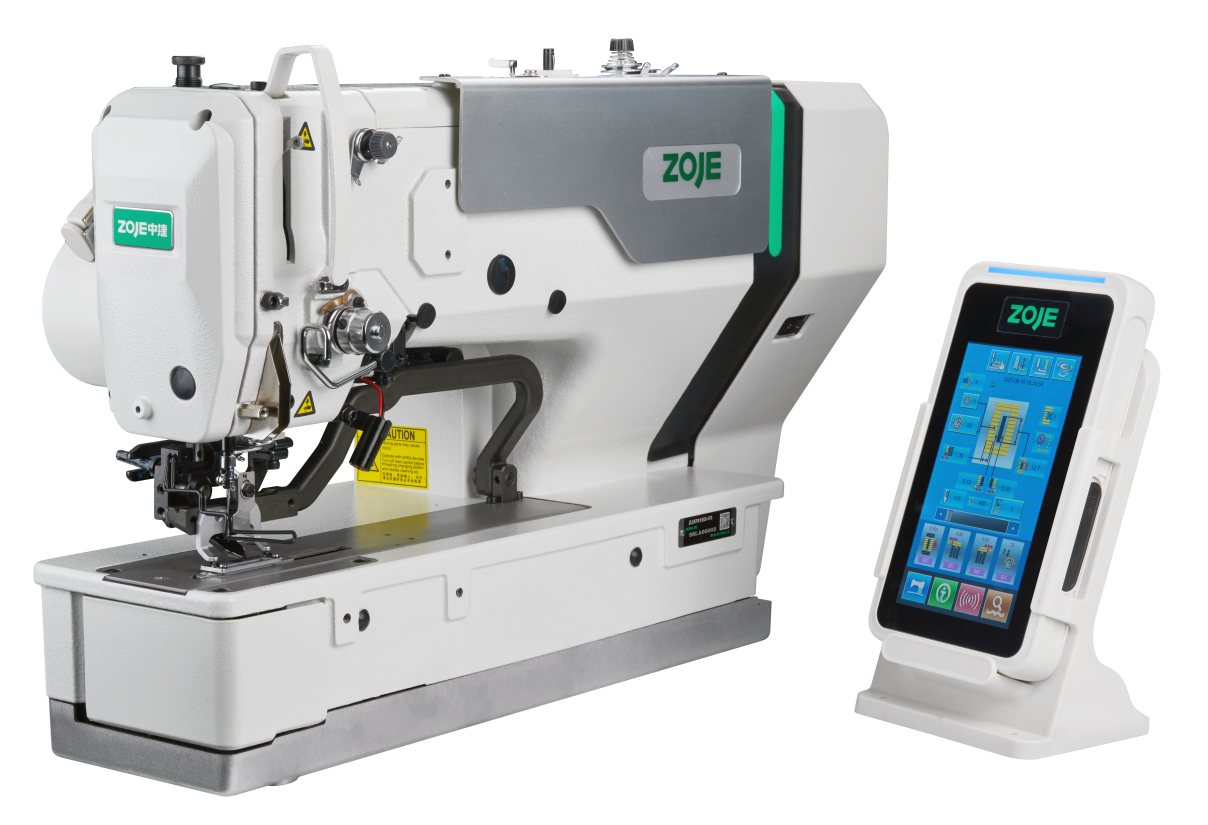

SMART EYELET BUTTONHOLE MACHINE
Core Technology
Product Features

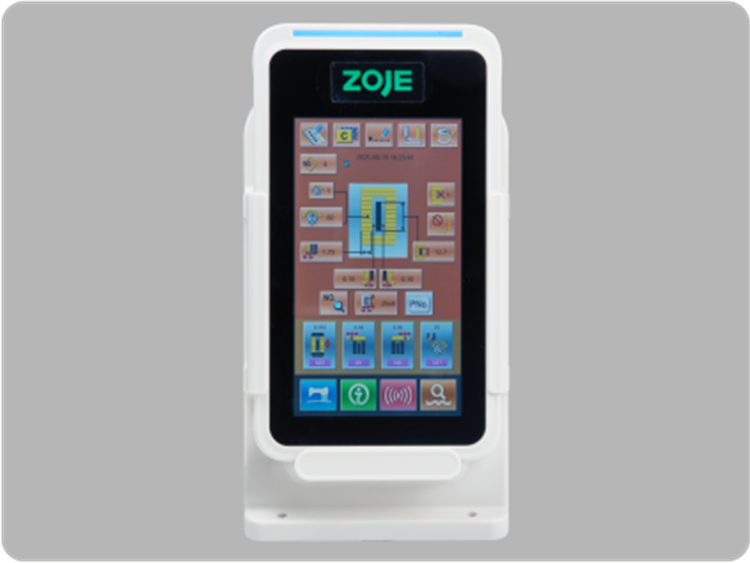

Integrated operation screen

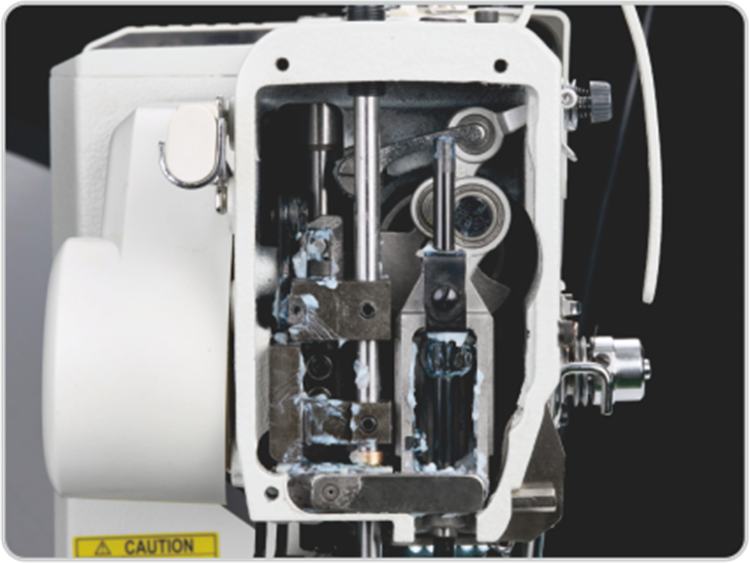

Dry-Type Machine Head

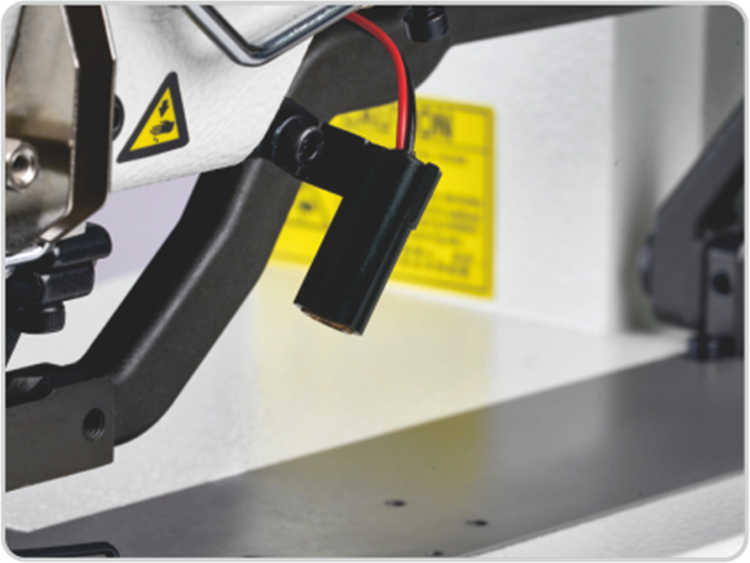

Laser light at operation position forac curate positioning

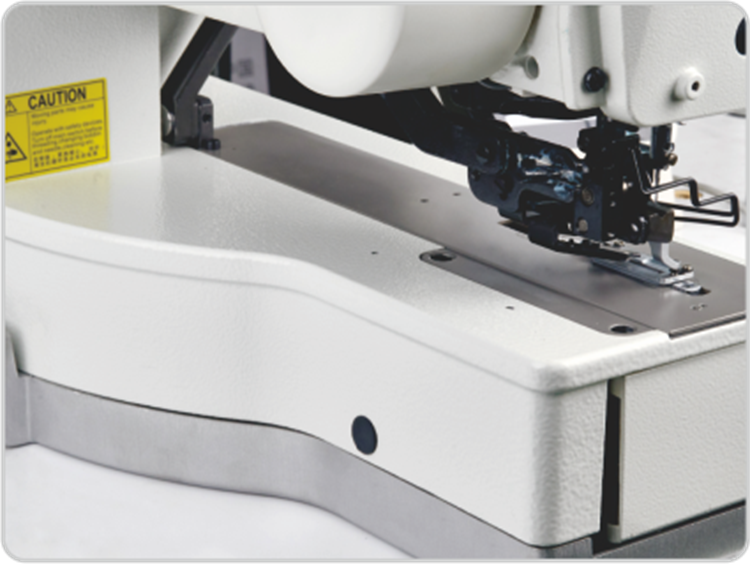

Narrow base for easy material placement
| Cutter size | 6.4~31.8mm(1/4"~11/4") |
| Memorable data | Maximum 99 patterns |
| Sewingrange | 5X40mm |
| Auto presser foot needle pendulm feeding fabric drive way | Stepper motor drive |
| Needle bar stroke | 34.6mm |
| Power/consumption | Single-phase AC220V-240V1600VA |
Technical Parameter
| Model | ZJ5781ES-V3 | ZJ5781EK-V3 | ZJ5781EL-3 |
| Needle | DPX5(11#)11#-14# | DPX5(11#)11#-14# | DPX5(11#)11#-14# |
| Sewing speed | 4200 | 4200 | 4200 |
| Alternation range | 0-17mm | 0-17mm | 0-17mm |
| Sewing materials | Cotton buttons for shirts,overalls | Cotton buttons for shirts,overalls | Cotton buttons for shirts,overalls |
| Needie gauge | Max 40mm | Max 40mm | Max 40mm |
| Bartacking range | Standard 5mm | Standard 5mm | Standard 5mm |
E: Motorized presser foot loweringS:Standard presser foot,K: Knit presser foot, L: Extra-long presser footV3:New ZOJE Family Series Integrated Machine with Redesigned Exterior
※ For other models, please inquire about ZOJE Electronic Sample
