ZJ-UA-5781DS-LD

ZJ-UA-5781DS-LD

Customizable settings

Automatic paper feeding

Intuitive stability

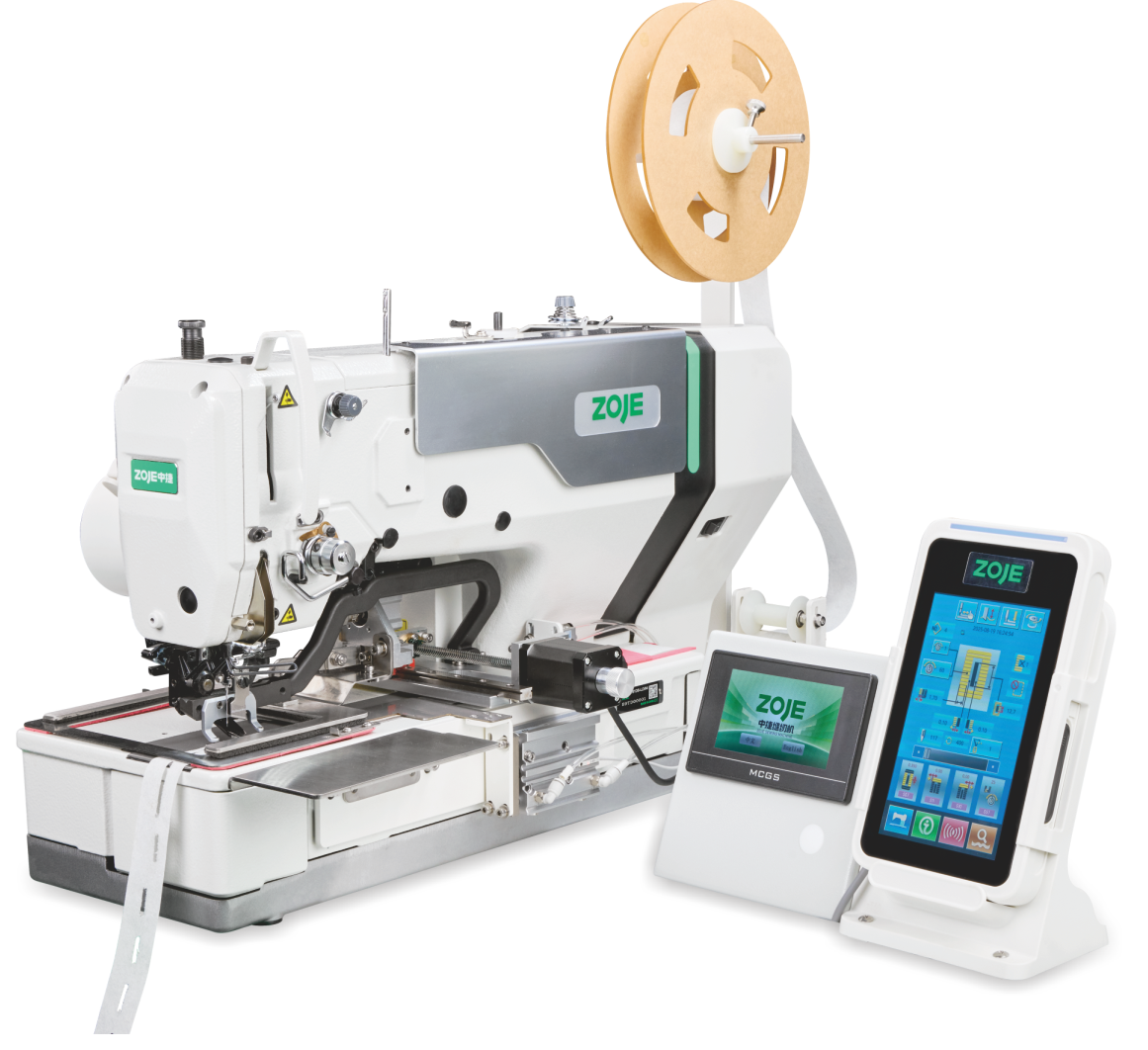

HORIZONTAL CONTINUOUS SMART FLAT BUTTONHOLE MACHINE

Core Technology
Product Features



PLC control system

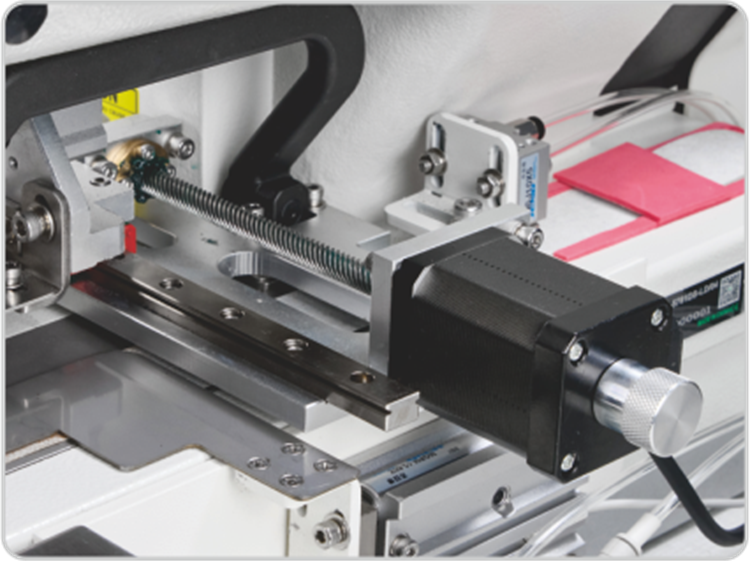

Side-Feed Stepper Motor

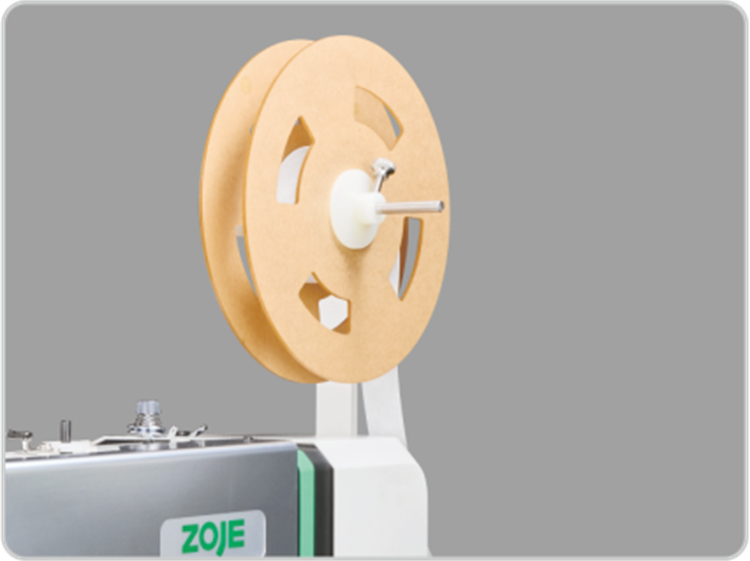

Automatic paper lining feeding function

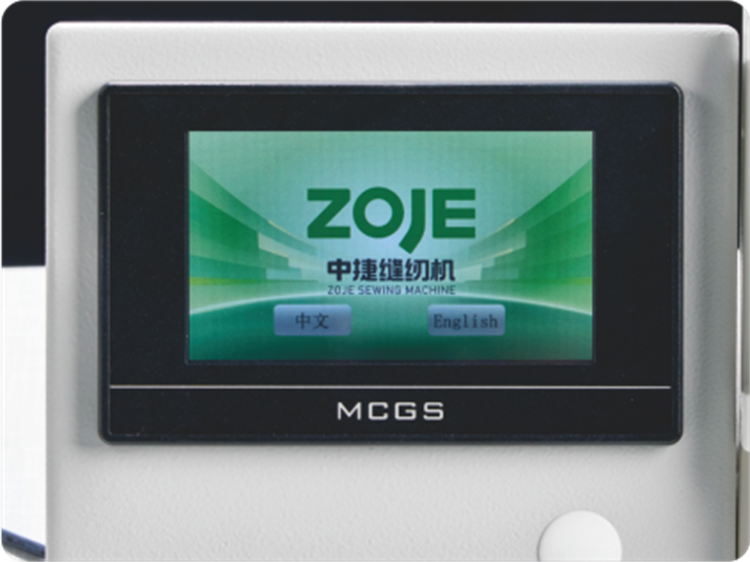

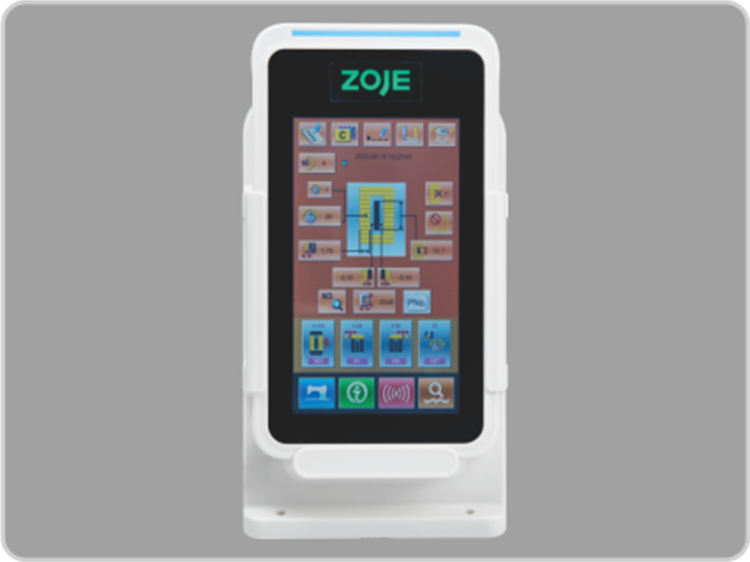

Touch screen for arbitrary settings


Cutter size6.4~31.8mm(1/4"~11/4")
Memorable dataMaximum 99 patterns
Sewingrange5X40mm
Auto presser foot needle pendulm feeding fabric drive wayStepper motor drive
Needle bar stroke34.6mm
Power/consumption

Single-phase AC220V-240V 1600VA


Technical Parameter
ModelZJUA-5781DS-LD
NeedleDPX5(11#)11#-14#
Sewing speed4200
Alternation range0-17mm
Sewing materialsCotton buttons for shirts,overalls
Needie gaugeMax 40mm
Bartacking rangeStandard 5mm


UA: Automated Weaving Series, D: Motorized Presser Foot Lifting, S: Standard Presser Foot, LD: Continuous Stitching Device

※ For other models, please inquire about ZOJE Electronic Sample
