A0323L
Extra long space
Strong puncture power
Backseam silent

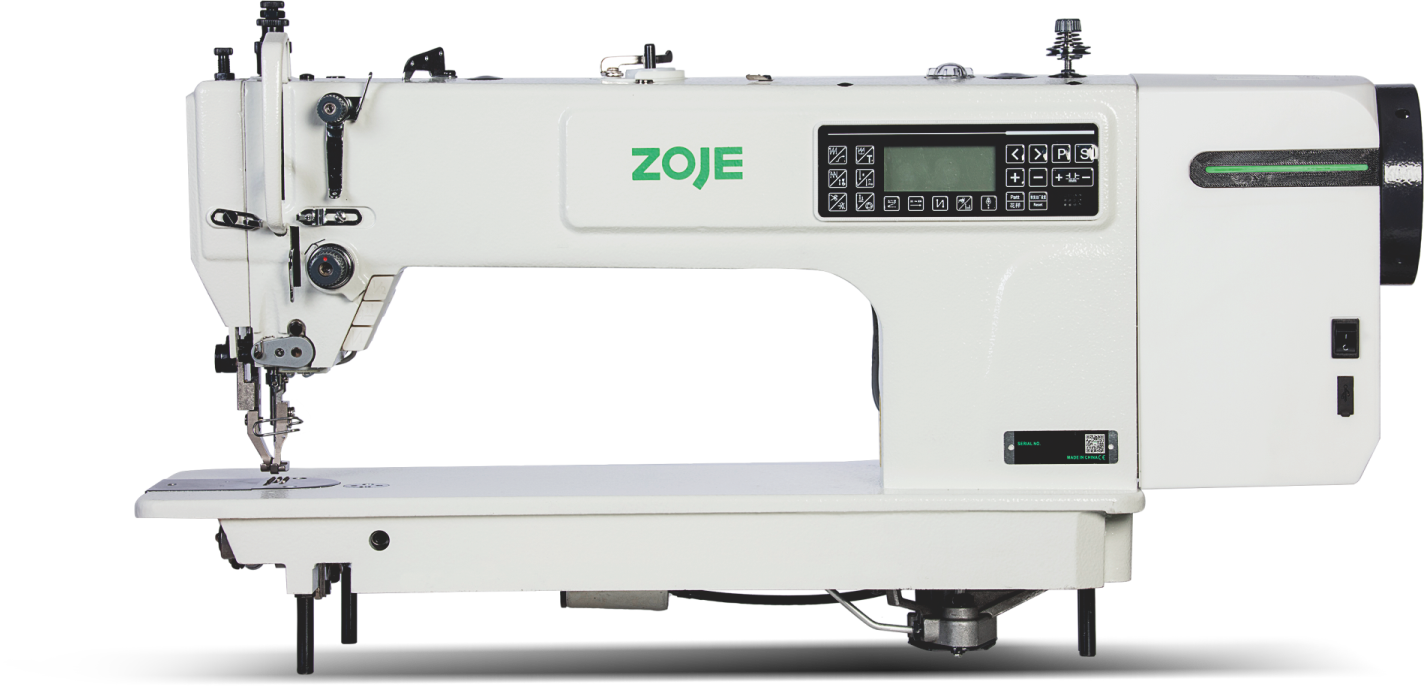

EXTRA LARGE SPACE STEPPER INTELLIGENT LOCKSTITCH MACHINE
Product Introduction Video
Core Technology
Product Features

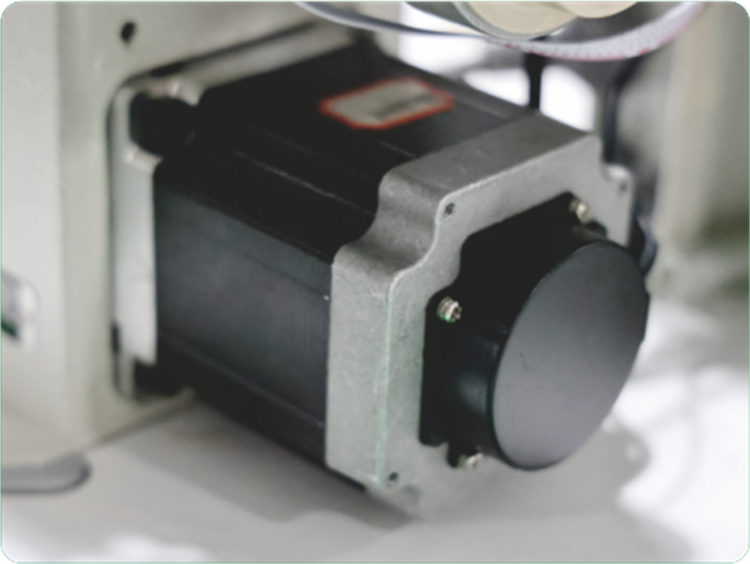

Stepper motor control for presser foot lifting and stitch length adjustment
Stepper motor control for presser foot lifting and stitch length adjustment

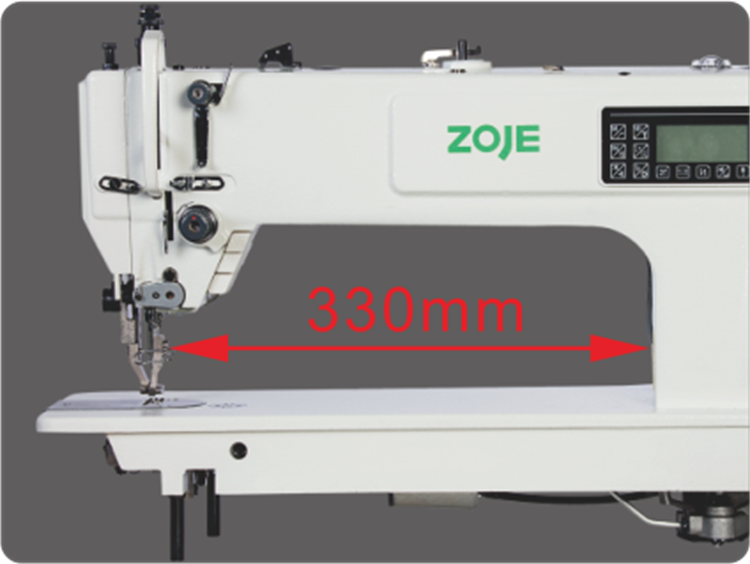

Extra long sewing space 330mm

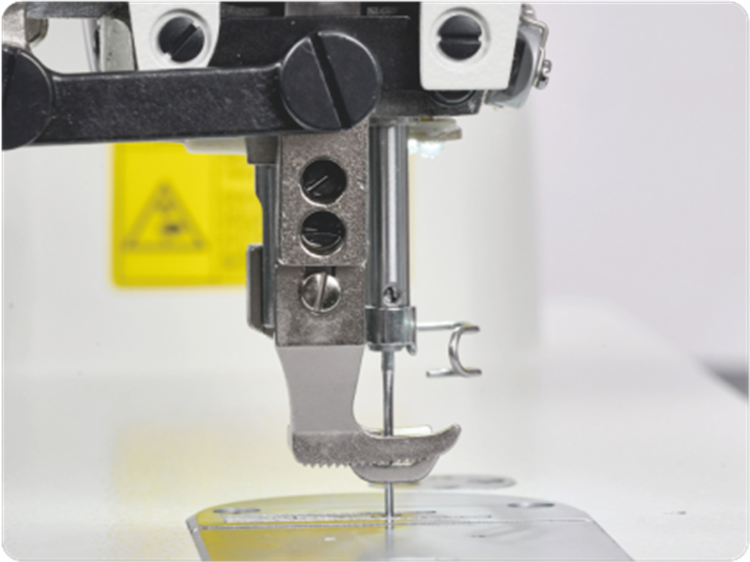

Mid-sewing presser foot height adjustment eliminates manual lifting
Technical Parameter
| Model | A0323L-M-D4 | A0323L-M-D4 | A0323L-CT-D4 | A0323L-CT--D4 | A0323L-CX-4 | A0323L-CX--D4 |
| Needle | DPx17 18# | DPx17 18# | DPx17 22# | DPx17 22# | DPx17 25# | DPx17 25# |
| Sewing speed | 2500 | 2200 | 2500 | 2200 | 2200 | 2200 |
| Needie gauge | 0-8mm | 0-12mm | 0-8mm | 0-12mm | 0-8mm | 0-12mm |
| Alternation range | 13mm | 13mm | 13mm | 13mm | 13mm | 13mm |
| Thickness | 3mm | 3mm | 7mm | 7mm | 10mm | 10mm |
| Power | 750W | 750W | 750W | 750W | 750W | 750W |
M:Lightweight fabrics, CT: Conventional medium-weight fabrics, CX: xtra-heavyweight fabrics, L:Large stitch length (12mm;: Blank: tandard stitch length 8mm,D4: Automatic thread trimming, automatic reverse stitching, automatic thread tensioning, automatic presser foot lifting
※ For other models, please inquire about ZOJE Electronic Sample
