A0323
Breakthrough in thin fabric handling
Intelligent precision

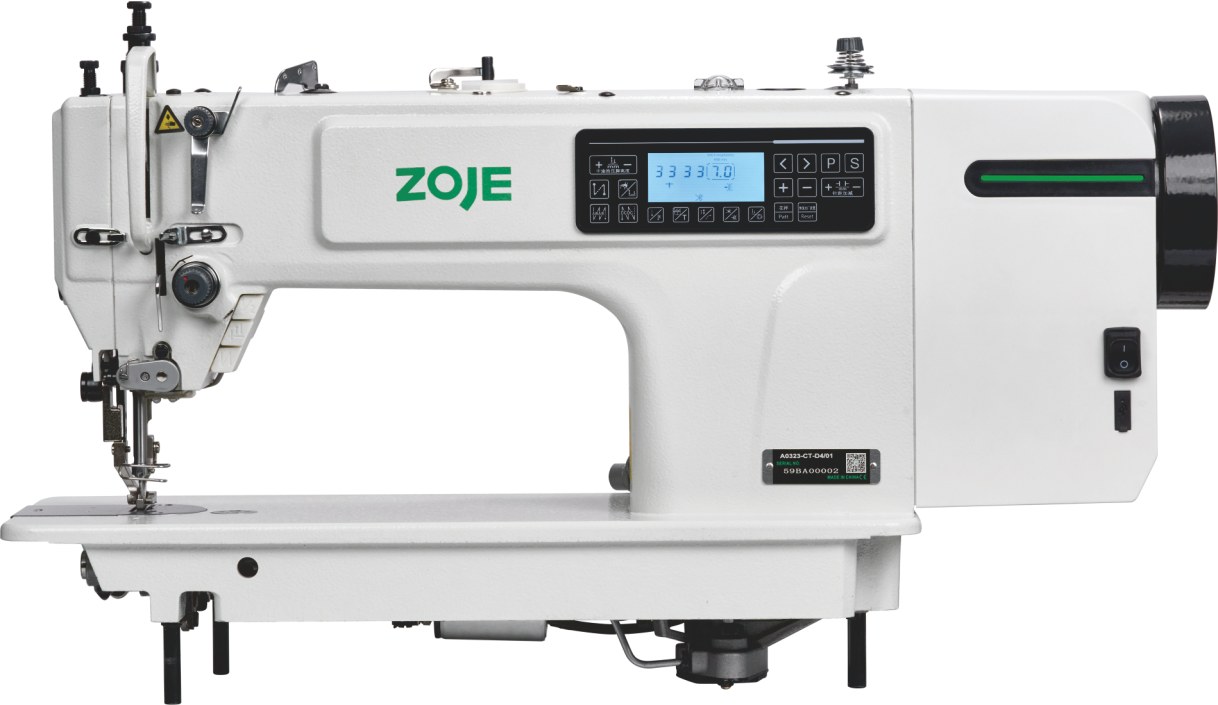

STEPPER FOUR-AUTO SYNCHRONIZED SEWING MACHINE
Core Technology
Product Features

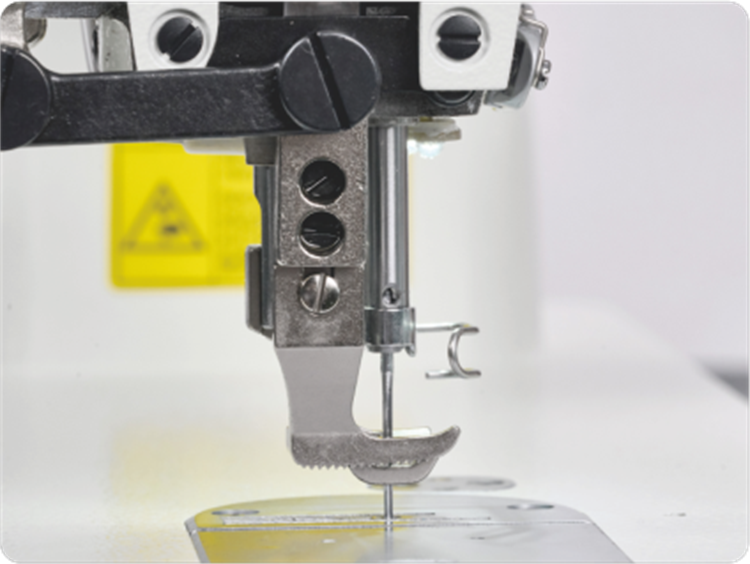

Mid-sewing presser foot height adjustment eliminates manual lifting
Dragon tooth puncture force, easily penetrates seams

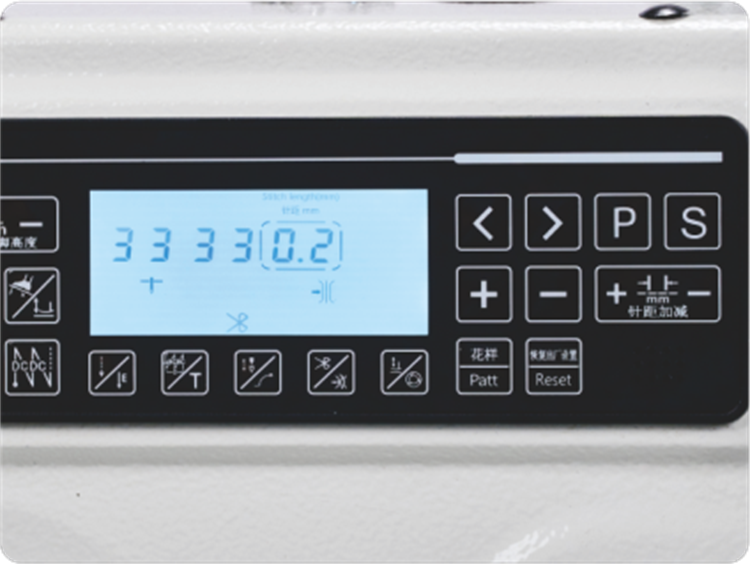

Stepper-controlled stitch length with 0.2mm precision

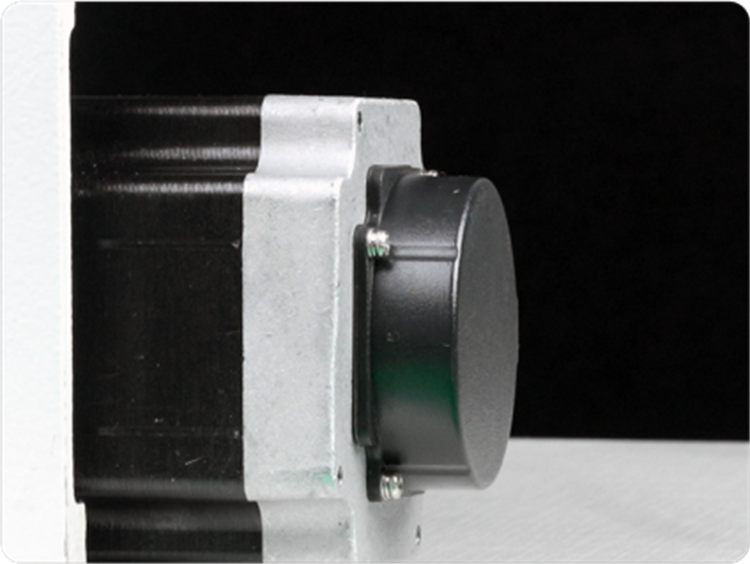

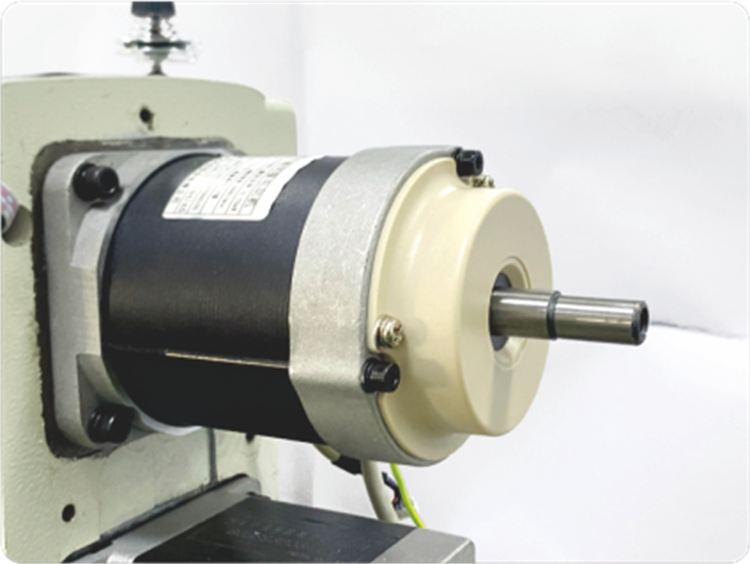

Stepper motor control for presser foot lifting and stitch length adjustment
Technical Parameter
| Model | A0323-M-D4 | A0323-M-L-D4 | A0323-CT-D4 | A0323-CT-L-D4 | A0323-CX-D4 | A0323-CX-L-D4 |
| Needle | DPx17 18# | DPx17 18# | DPx17 22# | DPx17 22# | DPx17 25# | DPx17 25# |
| Sewing speed | 2500 | 2200 | 2500 | 2200 | 2200 | 2200 |
| Needie gauge | 0-8mm | 0-12mm | 0-8mm | 0-12mm | 0-8mm | 0-12mm |
| Alternation range | 13mm | 13mm | 13mm | 13mm | 13mm | 13mm |
| Thickness | 3mm | 3mm | 7mm | 7mm | 10mm | 10mm |
| Power | 750W | 750W | 750W | 750W | 750W | 750W |
M:Lightweight fabrics, CT: Conventional medium-weight fabrics, Cx: xtra-heavyweight fabrics, L:Large stitch length (12mm;: Blank: tandard stitch length 8mm'D4: Automatic thread trimming, automatic reverse stitching, automatic thread tensioning, automatic presser foot lifting
※ For other models, please inquire about ZOJE Electronic Sample
