ZJ-K6300B
Eliminate Seam Allowance Challenges
Consistent Quality Assurance

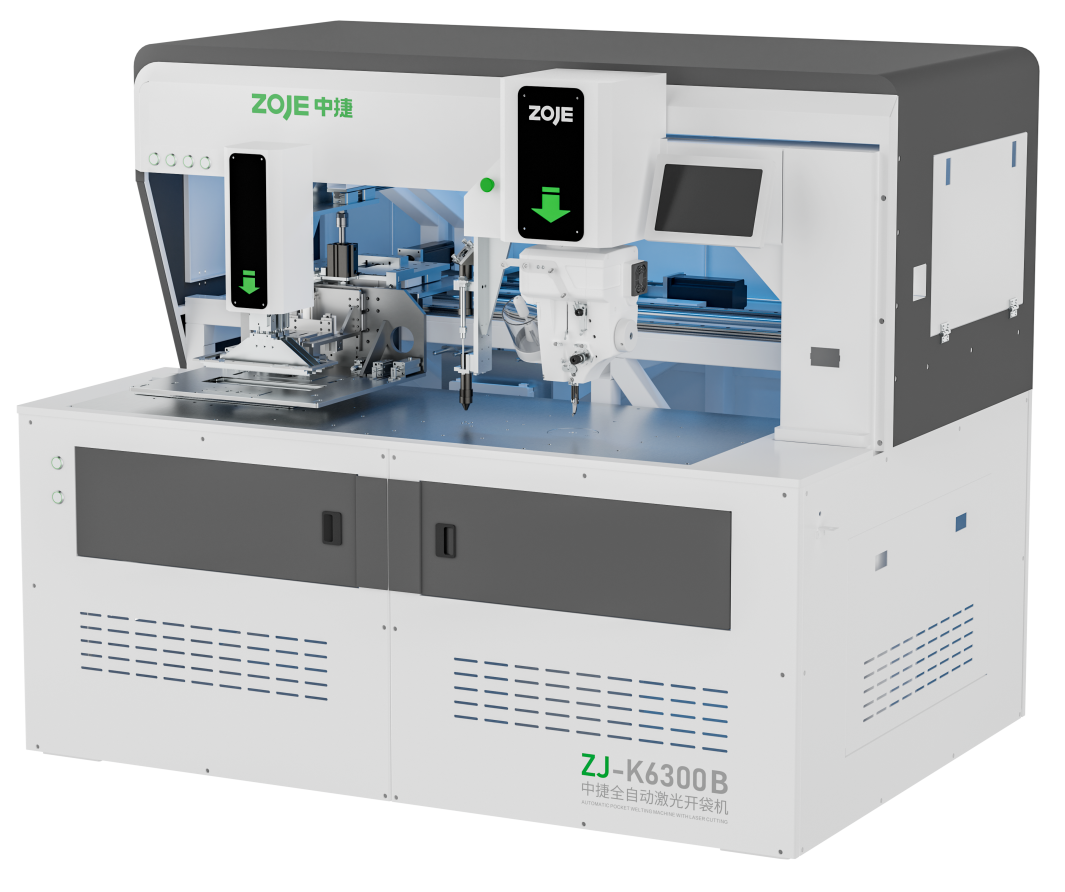

AUTOMATIC POCKET WELTING MACHINE WITH LASER CUTTING
Core Technology
Product Features

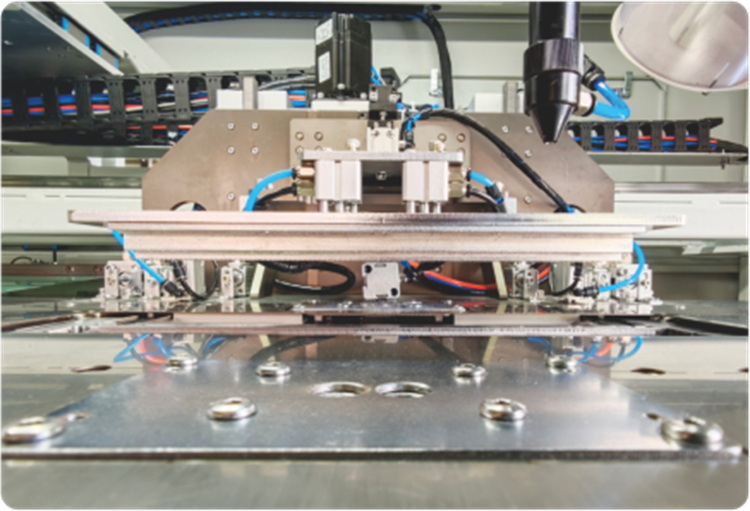

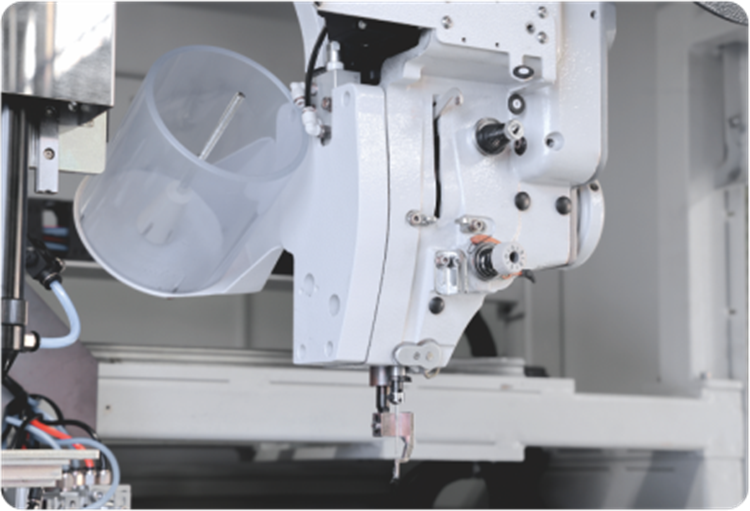

Equipped with an elevatable head to prevent needle jamming on thick materials,minimize materials waste and provide larger workspacefor placing cutting pieces
Maximum customizable length up to 240mm.meeting diverse pocket welting applications
Pocket welting efficiency increased by 33%with cycle times of15-18 seconds for mock pockets with bartack and 20-25 seconds for 3D pockets

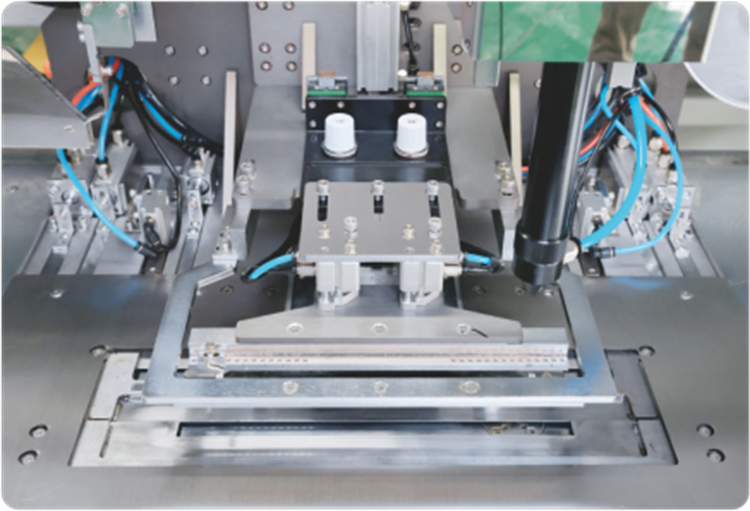

Precision-controlled material feeding length ensure natural sewing edges,delivering straighter and more unfirm sewing edges
Technical Parameter
| Model | ZJ-K6300B |
| Customized Maximum Sewing Area | 240X40(mm) |
| Standard Maximum Sewing Area | 200X40(mm) |
| Maximum SewingSpeed | 2800rpm |
| Speed Setting | 100-2800RPM |
| Stitch Length | 0.1-12.7 |
| Pattern Storage | Internal Storage, USB Storage |
| Stitch Formation Mechanism Type | Rotary Hook |
| Use ofNeedle | DP17*14# |
| Presser Foot Drive | Pneumatic |
| Cylinder | Airtac |
| Machine Weight | Gross Weight1 ton |
| Power Supply | AC 220V 50HZ, Need To Be Grounded |
| Spindle Motor | Servo Motor |
| Language Selection | Chinese,English,Japanese, Korean,Turkish |
| Machine Head | Z0JE Elevating Machine Head |
| Sewing Area OilSupply | Mini Oil |
| Hourly Production Rate | 120-180 pcs |
| Applicable Fabrics | Suitable for Knitted and Woven Fabrics |
| Maximum Pocket Size | 240X40(mm) |
| Electrical Control System | Systemtop |
| Dimensions | 2030X1400X1700(mm) |
※ For other models, please inquire about ZOJE Electronic Sample
Download user manualContact +86-400-807-9881
