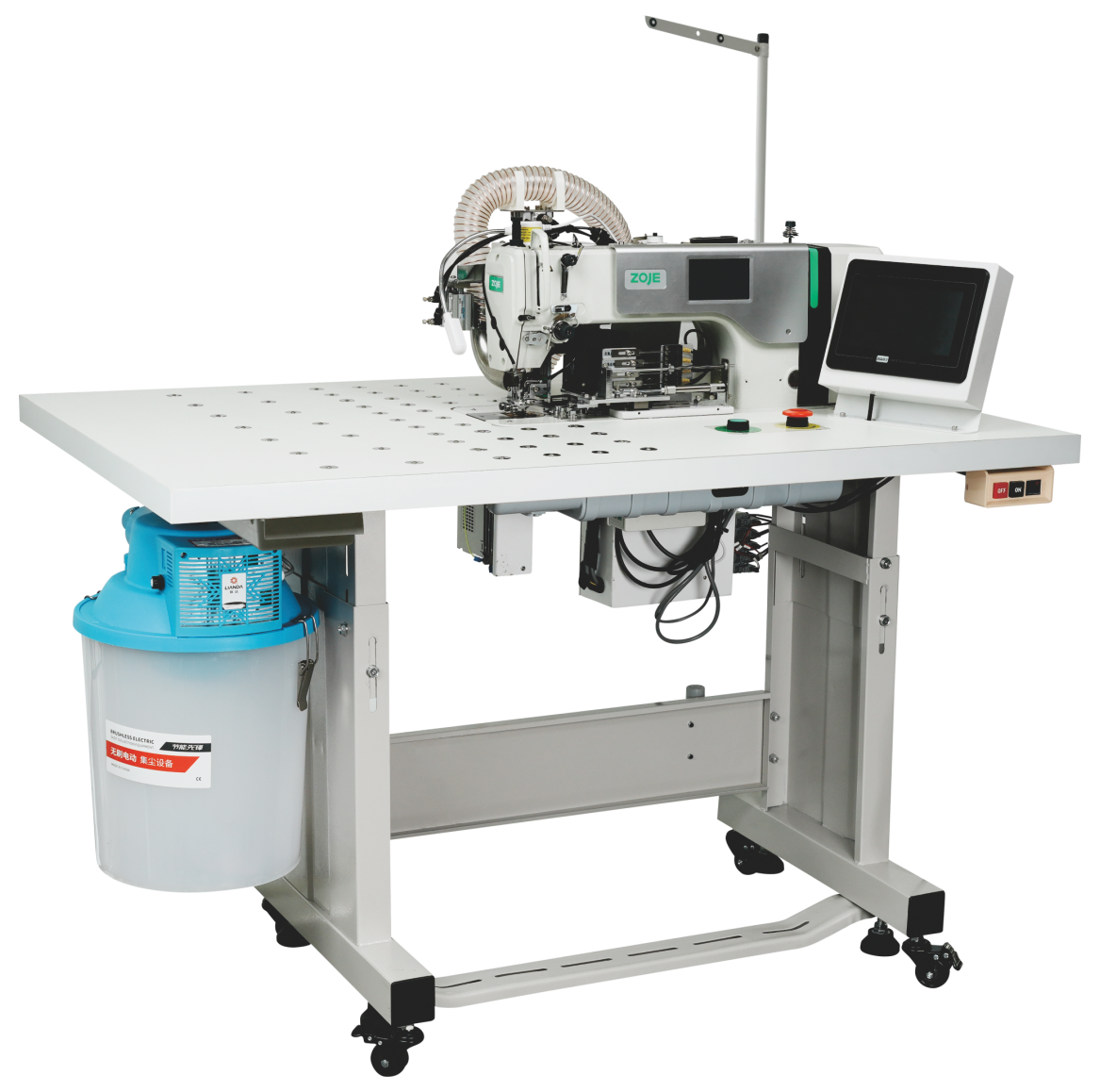

ZJ-UA9200L-W-DM-WE5

ZJ-UA9200L-W-DM-WE5

Innovative Sharp-to-Round Corner Stitching Conversion Technology


AUTOMATIC CUTTING TEMPLATE MACHINE

Core Technology
Product Features


Unique pointed and rounded corner stitchingconversion function,enabling quick stylechanges without machine adjustment or reprogramming.

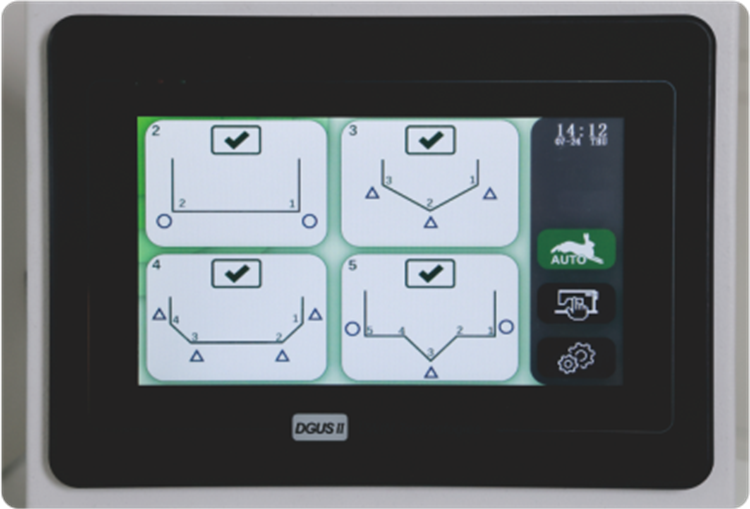

Featuring distinctive collar point positioningand automatie stitch density adjustment,allowing fast switching betwean pointed and rounded corner details via touchscreen.

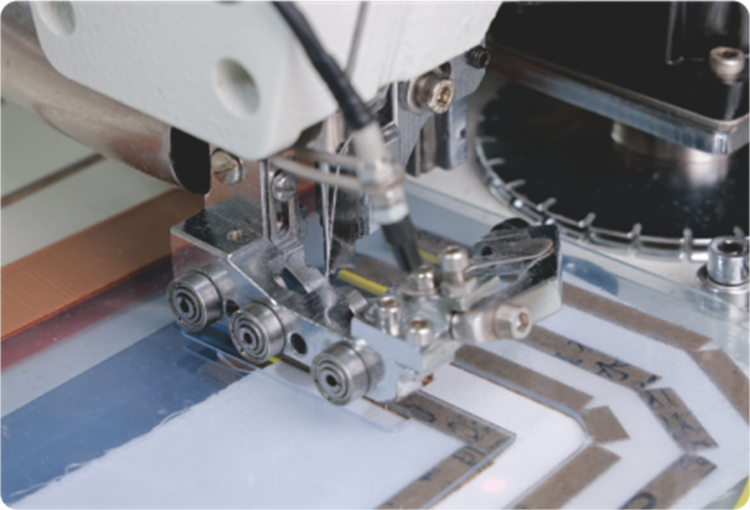

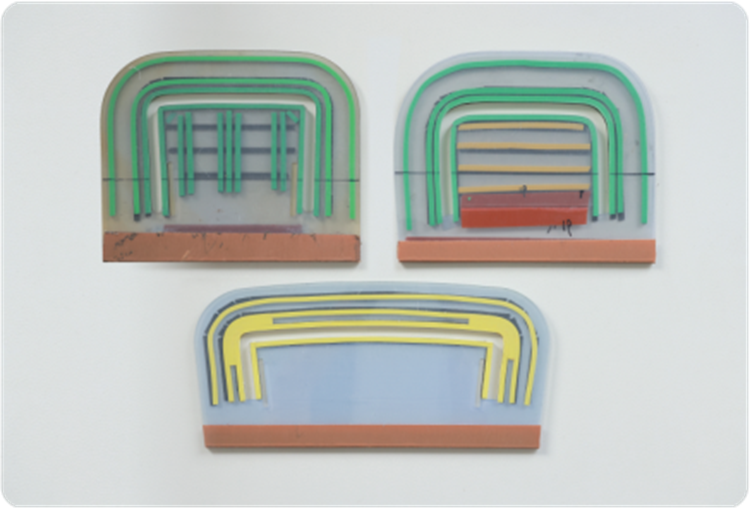

Template ensures consistent output with edg estitching and cutting simultaneously, usingcold blade for seamless trimming

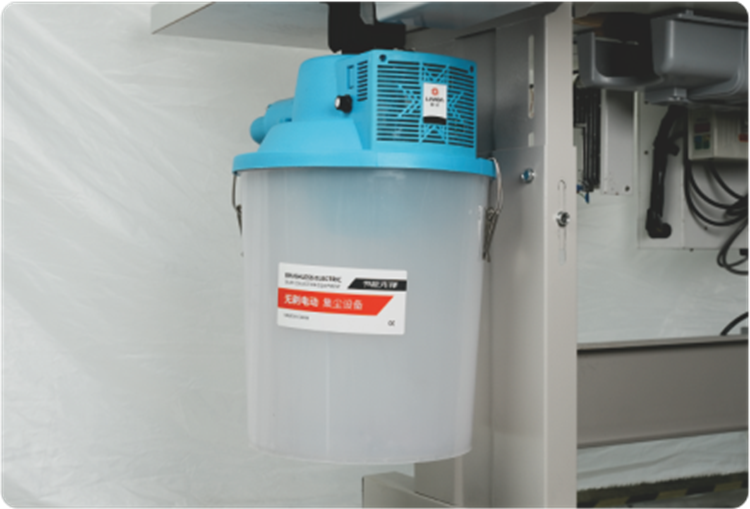

Equipped with asuetion barrel device tocollact waste and dust, effectively improvingthe production environment

Technical Parameter
ModelZJ-UA9200L-N-DM-WE5
Needle DPx5 11#-16#
Needle gauge0.1-3
Sewing area(mm)30x190
Sewing materialsMen's shirt , Wiomem's chiticn, Kriting
Sewing speed3000
Air consumption1L/min
Air pressure0.5Mpa
PowerAC220V,50/60Hz
Weight280Kg/320Kg
Measurement100x120x142

※ For other models, please inquire about ZOJE Electronic Sample
