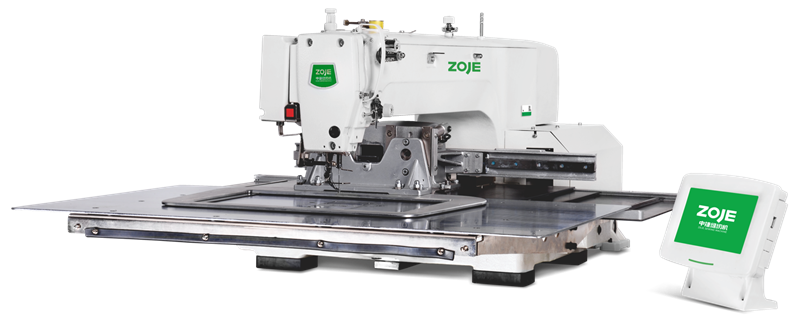

ZJ5760-3020HF1

ZJ5760-3020HF1

ELECTRONIC PATTERN MACHIYE

Core Technology

750W spindle, super penetrating power

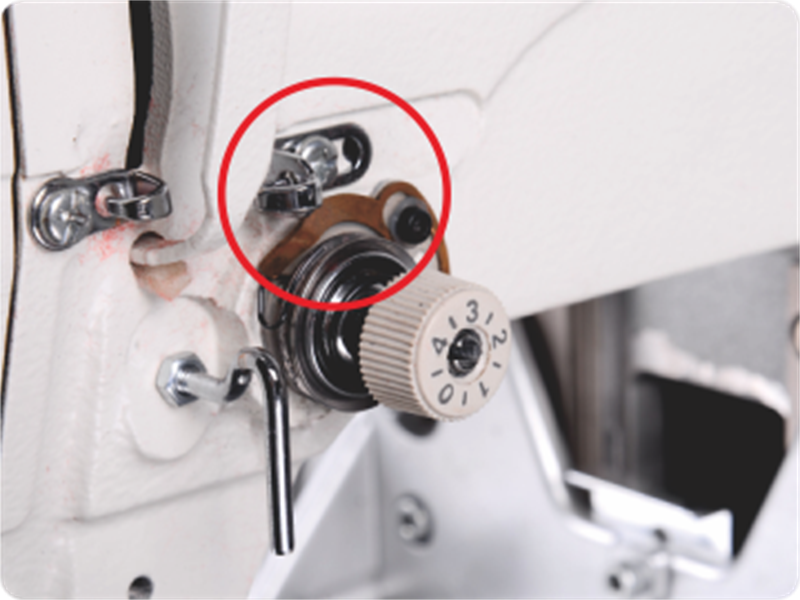

Face Line Clamping Function、Disconnect Detection Function


Pattern Edit Quickly Simply Accurately

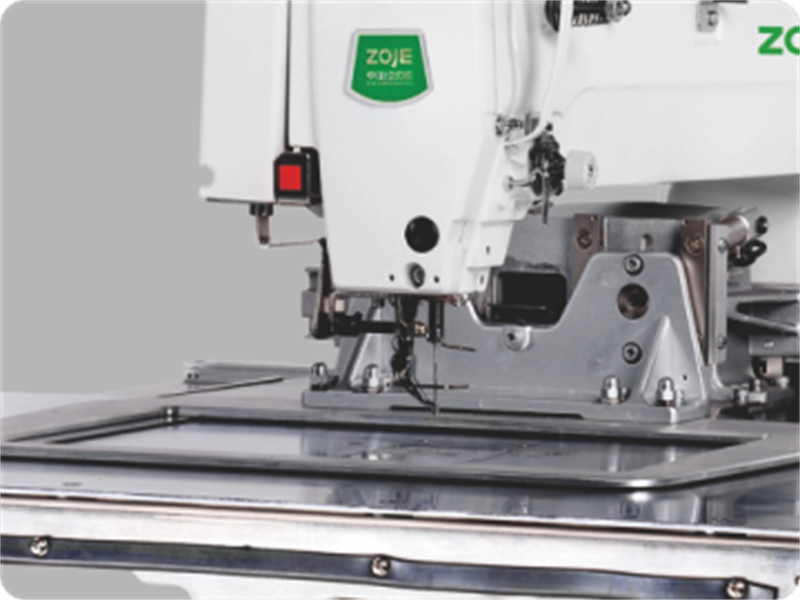

Needle Bar Withou Oil


Two kinds of editing software built into the touch screen

Product Features


Anew generation of servo stepping drive technology

Motor operation is more accurate, long time operation condition,temperature rise is lower,faster response.



High efficiency direct drive motor

The maximum speed reaches 2800rpm,the production efficiency is furtherimproved, the starting and stopping response is rapid, and the productionefficiency is shortened by 19% compared with the traditional type, and the powerconsumption is low, economical and practical, and the production efficiency is reduced by 50% compared with the traditional type.


The minimum resolution of 0.05mm is used to achieve a beautiful sewing stitch

High resolution of 0.05mm per pulse to create smooth curves and simple patterns.




SpecificationZJ5760-3020HN1ZJ5760-3525HN1
Stitch TypeSingle   Needle Lockstitch
Max. Sewing Speed2800   rpm
Sewing Area (X × Y)300×200mm350×250mm
FeedingIntermittent   Feeding (Pulse motor drive mode)
Stitch Length0.05~12.7mm
Max. Stitch20,000   stitch / pattern

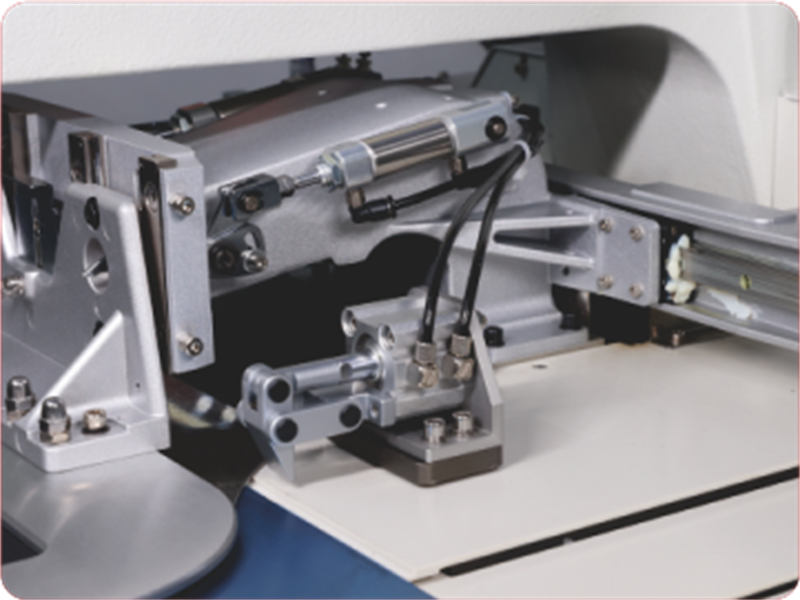

Work Clamp DrivePulse   motor drives
Work Clamp Lift AmountMax.   30 mm
2-step Work ClampSeparate-type
Stepping Presser Foot Height22mm
Stepping Presser Foot Stroke0 or   2~10mm (Default setting 3mm)
HookDouble   Capacity Shuttle Hook
External Data StorageInputted   by USB Port
MotorDirect-drive   AC Servo Motor 750W
PowerSingle   Phase 220V, 3-Phase 380V
WeightMachine   Head: 175 kg, Control Box: 14~16kg
Air Pressure / Consumption0.5MPa 1.7L/min


Technical Parameter
ModelZJ5760-3020HN1ZJ5760-3525HN1
Max.sewing speed28002800
Sewing area (X*Y)300x200mm350x250mm
FeedingIntermittent Feeding(Pulse motor drive mode)Intermittent Feeding(Pulse motor drive mode)
Stitch length0.05-12.7mm0.05-12.7mm
Clamp drivePneumaticPneumatic
Clamp heigth(max)30mm(max)30mm
Spindle motorServo motor750WServo motor750W
Packing size1220*1220*1320mm1290*1240*1320mm
G.W.288kg295kg
N.W.222kg222kg

※ For other models, please inquire about ZOJE Electronic Sample
