Wide applicability
low tension
low vibration

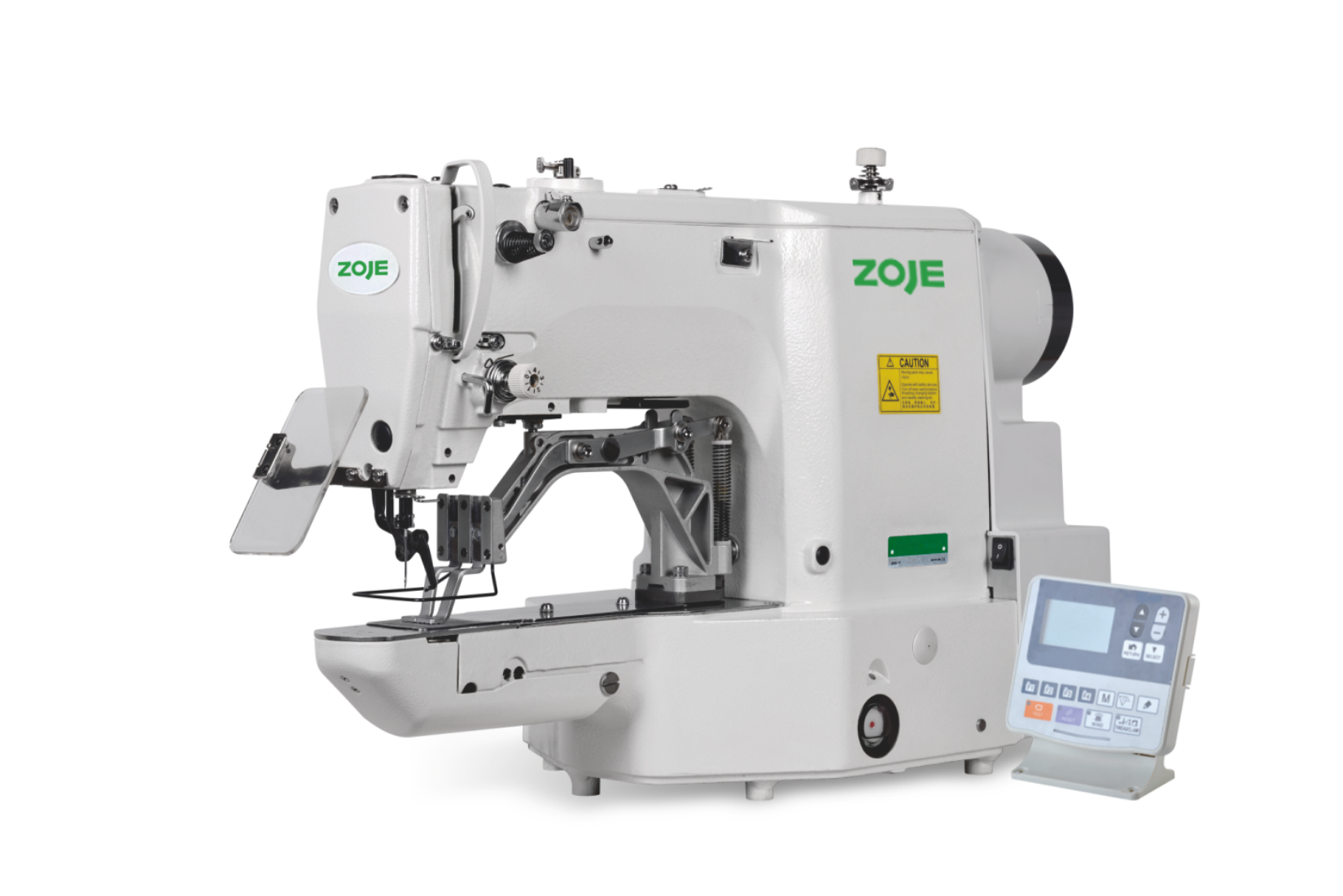

HIGH SPEED COMPUTERIZED BARTACKING MACHINE
The computer direct drive mode is adopted. The starting/stopping response is fastand the rigidity of the frame is high. The low vibration and noise are realized. Servo-controlled feeding device and needle rod take-up rod device with optimalsynchronization and stroke are equipped to realize low tension of sewing. The troubleof sewing material being polluted is eliminated by adopting non-oil supplytechnology. lt can be used for menswear/women's wear, jeans, knitted fabrics andunderwear.

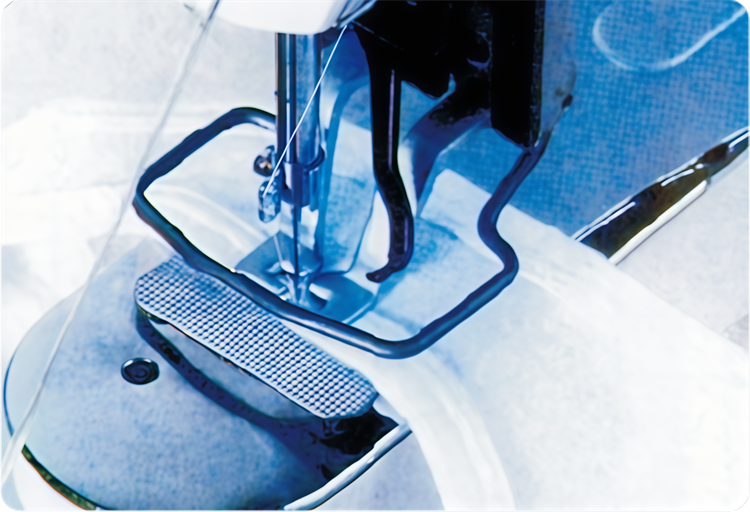

Drop foot reinforced

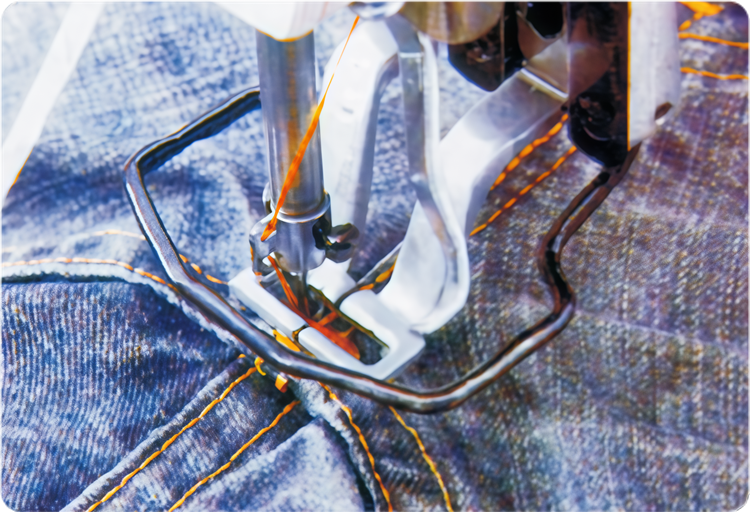

Cowboy reinforcement

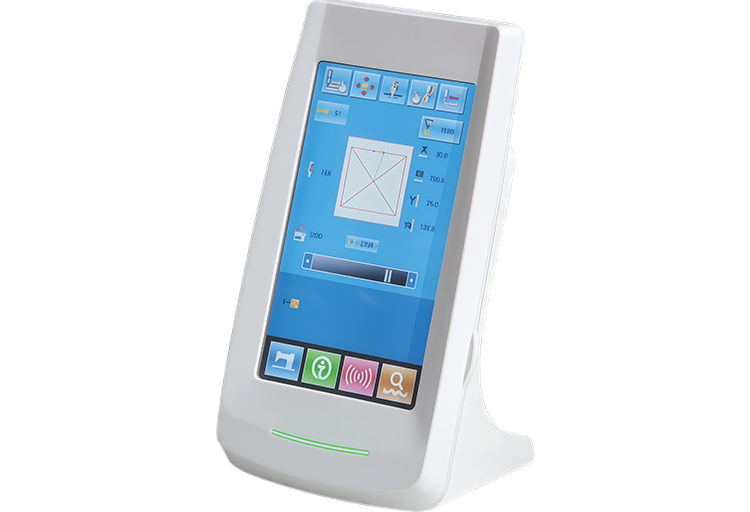

Option Touch screen

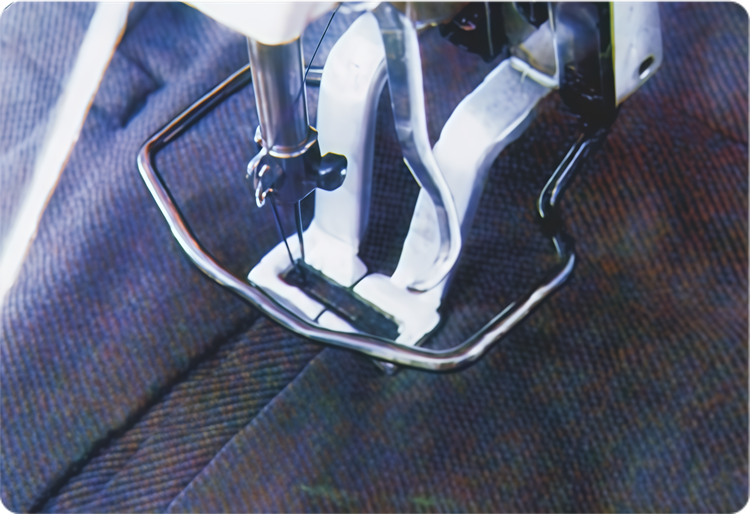

Elastic reinforcement
| Number of user's programs | 50 |
| Main motor powe | 750W |
| Maxcimum gauge | 210000sitches |
| Input voltage | 220V± 44V |
| Standard patternquantity | 200 patterns |
| Data storage mode | USB |
DS: Medium-to-HeavyWeight Materials, DH: Heavy Weight Materials, DM: Knitted Fabrics
| Molde | ZJ430DS-3/04A | ZJ430DH-3/04A | ZJ430DM-3/04A |
| Needle | DPx5 14# | DPx17 19# | DPx5 11# |
| Speed | 3200 | 3200 | 3200 |
| Sewing area | 40x30mm | 40x30mm | 40x30mm |
| Stitch width | 0.05-12.7 | 0.05-12.7 | 0.05-12.7 |
| Presser foot lifte | 13-17 | 13-17 | 13-17 |
※ For other models, please inquire about ZOJE Electronic Sample
Download user manual
